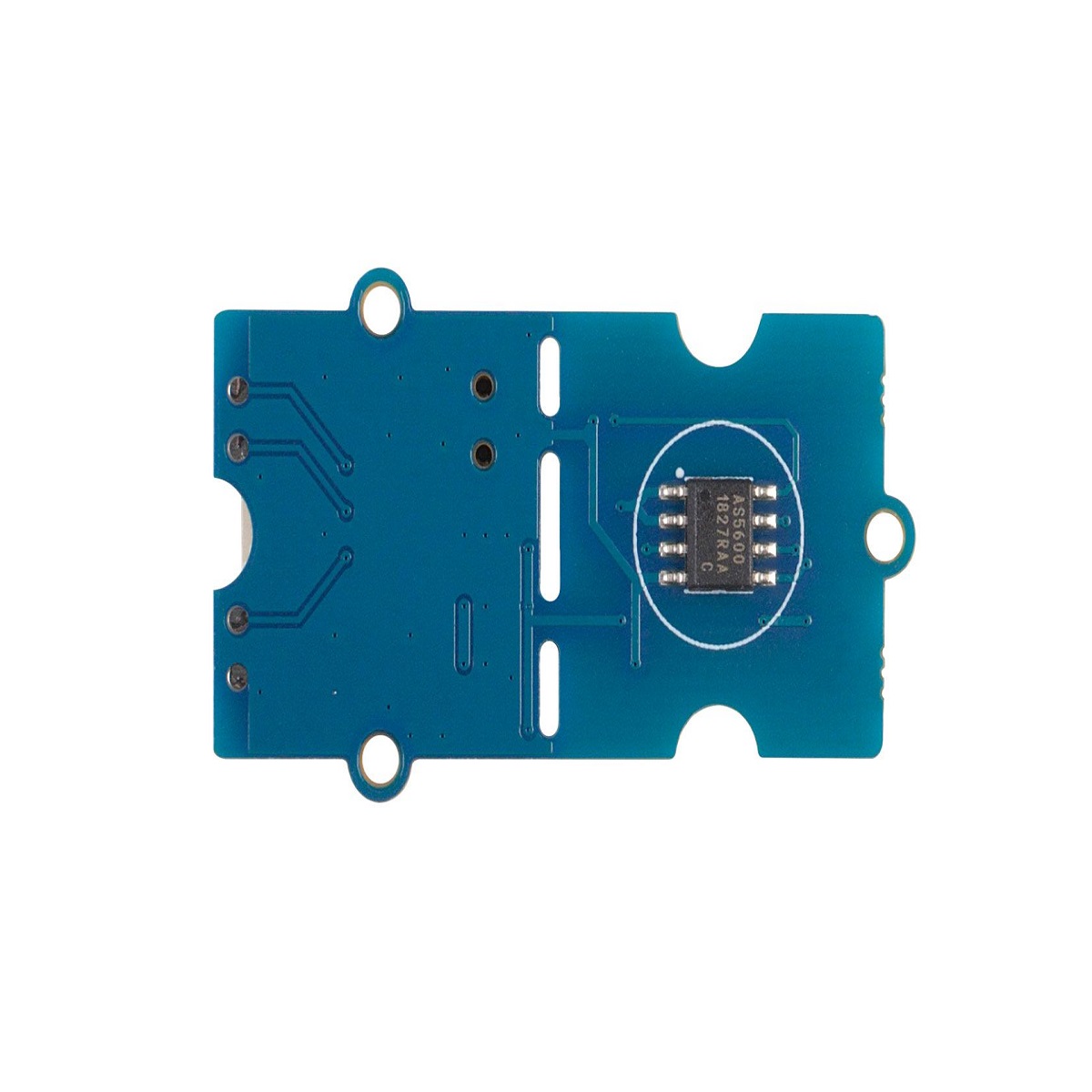

SeeedStudio Grove 12bit Magnetic Rotary Position Sensor (AS5600)

The Grove – AS5600 is a programmable 12-bit high-resolution contactless magnetic rotary position sensor. The Grove – AS5600 can work as a magnetic potentiometer or a magnetic encoder with excellent reliability and durability.

Compared with the traditional potentiometer/encoder, the Grove – AS5600 has significant advantages: high precision, non-contact, no rotation angle limitation. All those advantages make it suitable for non-contact angle measurement applications, such as the robot arm, tripod head, motor closed-loop control, machine tool axis positioning.v

Getting Started With SeeedStudio Grove 12bit Magnetic Rotary Position Sensor (AS5600)

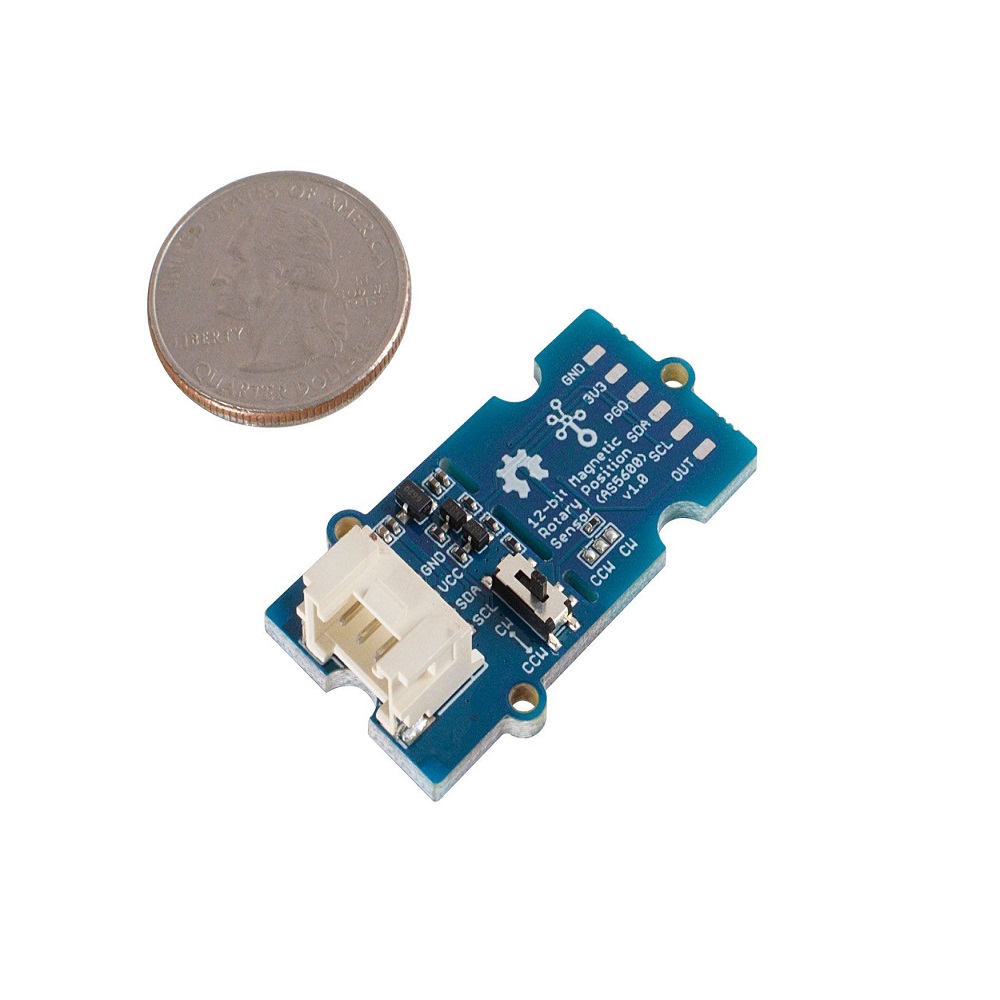

Pinout:

Features:

1. Non-contact, no rotation angle limitation
2. 12-bit high-resolution, 4096 positions per round
3. Grove I2C, PWM/Analog Output
4. Great flexibility on an angular excursion: Maximum angle programmable from 18° up to 360°

Package Includes :

1 x SeeedStudio Grove 12bit Magnetic Rotary Position Sensor (AS5600)
