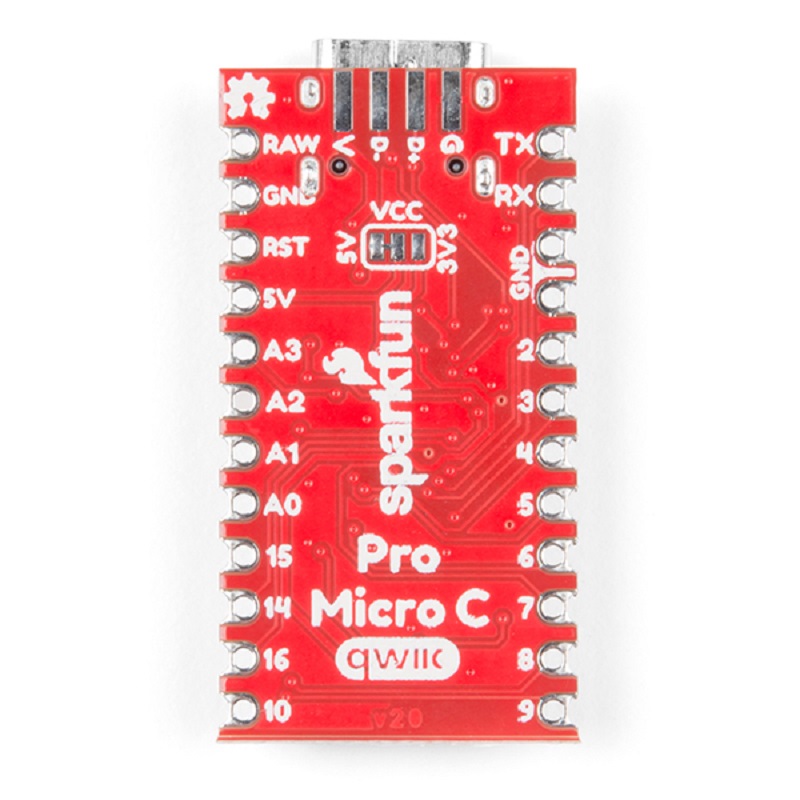

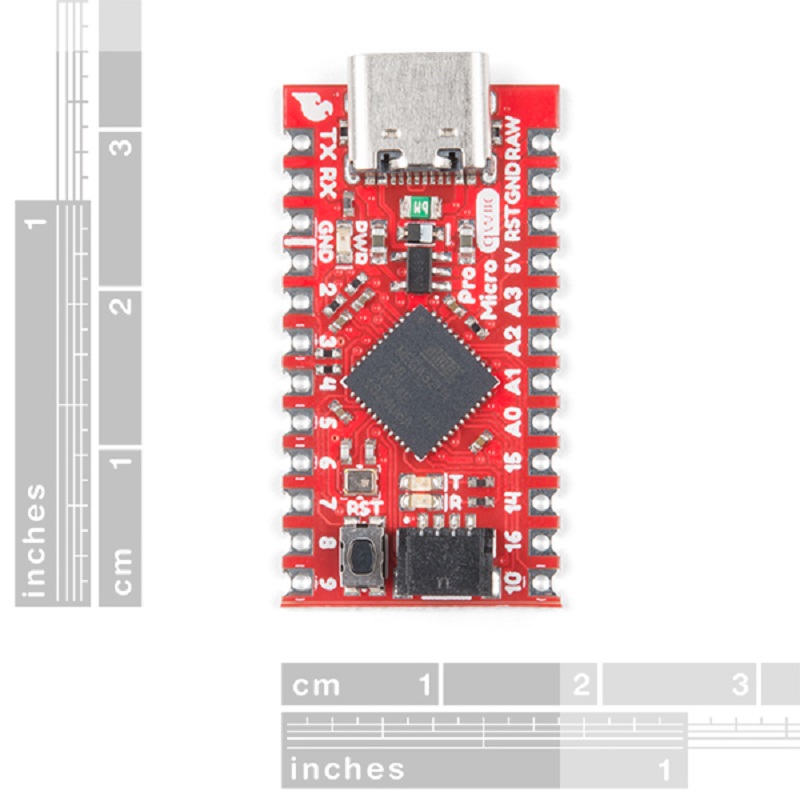

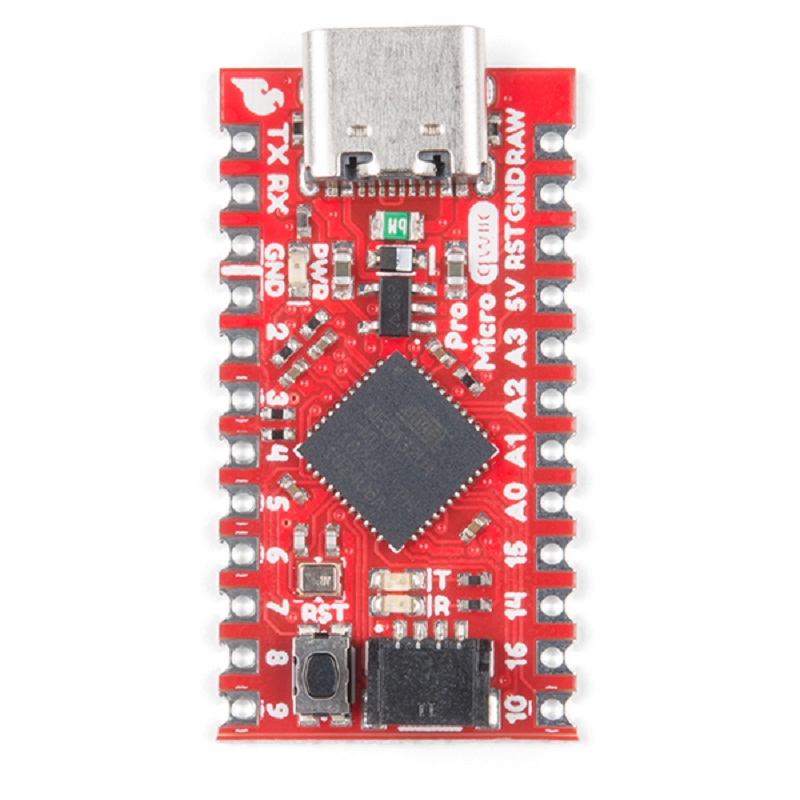

SparkFun Qwiic Pro Micro – USB-C (ATmega32U4)

The SparkFun Qwiic Pro Micro is a revision of the original Pro Micro and is, overall, functionally the same as the previous version. The board is the same size as the original Pro Micro. A few additional features are added by shrinking down some components on the board such as a reset button, Qwiic connector, USB-C, and castellated pads Think the Pro Mini except with an ATmega32U4 on board and full USB functionality.

This tiny little board does all of the neat Arduino tricks that you’re familiar with: nine channels of 10-bit ADC, five PWM pins, 12 Dios as well as hardware serial connections Rx and Tx. Running at 5V and 16MHz, this board will remind you a lot of your other favorite Arduino-compatible boards but this little guy can go just about anywhere. There is a voltage regulator on board so it can accept voltage up to 6VDC. If you’re supplying unregulated power to the board, be sure to connect to the “RAW” pin on not VCC.

Features:

1. On-Board USB-C connector for programming
2. PTH Pads w/ Castellated Edges
3. Small Arduino-Compatible Board
4. Reset Button

Package Includes:

1 x SparkFun Qwiic Pro Micro – USB-C (ATmega32U4)
