STMICROELECTRONICS  B-L462E-CELL1  IoT Discovery Kit, STM32L462REY6TR, 32bit ARM Cortex-M4 Microcontroller

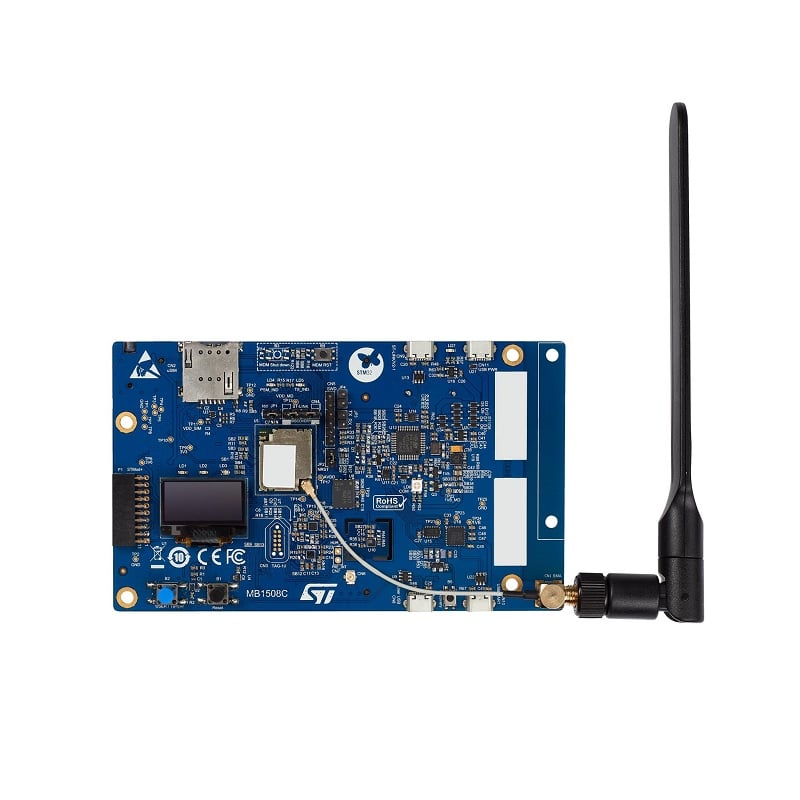

The B-L462E-CELL1 Discovery kit is a turnkey development platform for cellular IoT devices. The Discovery kit contains a low-power Discovery main board powered by an LBAD0ZZ1SE module, a global coverage antenna, and a fan-out board. The LBAD0ZZ1SE module includes an STM32L462REY6TR microcontroller, an LBAD0XX1SC-DM ultra-small LTE Cat M/NB modem, and an ST4SIM GSMA-certified embedded SIM.
STMod+ and extended pins connectivity provide unlimited expansion capabilities with a large choice of specialized add-on boards. Moreover, the fan-out board supports add-on boards using mikroBUS™, ESP‑01, Grove I2C, Grove UART, and breadboard. The B-L462E-CELL1 Discovery kit includes an ST-LINK debugger/ programmer and comes with the comprehensive STM32Cube software libraries together with packaged software
examples to seamlessly connect to cloud servers.

Note:

1. For more info refer to datasheet.
2. Image may vary from actual product in terms of design, and color.

Features:

1. low power consumption
2. Easy to use
3. Compact design
4. Best for your DIY IoT projects
5. Low-power Audio CODEC with PCM bus and I2C interface
6. Ultra-low-power 3D accelerometer and 3D magnetometer (LSM303AGR)
7. Capacitive digital sensor for relative humidity and temperature (HTS221)

Specifications:

1. Model: STMICROELECTRONICS  B-L462E-CELL1  IoT Discovery Kit, STM32L462REY6TR
2. Product: IoT Discovery Kit
3. EEPROM: I2C 16 Kbytes of
4. Display: 0.96-inch 128 x 64 OLED screen with SPI interface
5. Chip: Arm Cortex-M4 core
6. Flash memory: 512 Kbytes of Flash memory and 160 Kbytes of RAM in a WLCSP64 package
7. Quad-SPI Flash memory: Onboard 64 Mbytes, exclusive with the 1 MByte of Quad-SPI Flash memory inside the module
8. Communications protocols: I2C, and UART
9. Programmer: On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration
10. Capability: mass storage, Virtual COM port, and debug port

Packages Includes:

1 x STMICROELECTRONICS  B-L462E-CELL1  IoT Discovery Kit, STM32L462REY6TR, 32bit ARM Cortex-M4 Microcontroller
