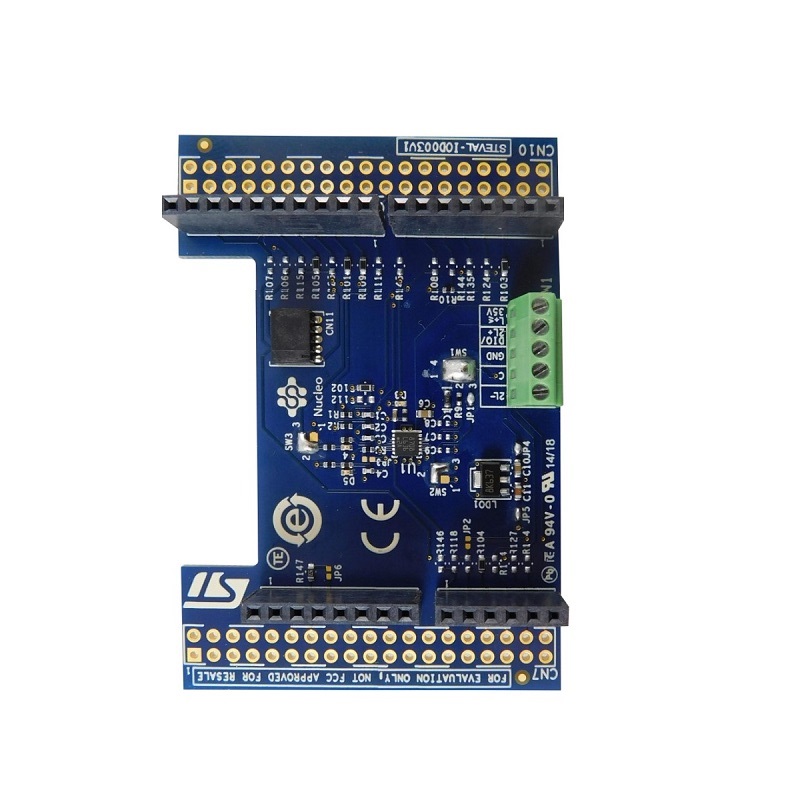

STMICROELECTRONICS Evaluation Board, L6362A IO-Link PHY Device, Arduino Compatible, For STM32 Nucleo

IO-Link (PHY) device evaluation board based on L6362A with Arduino connectors for STM32 nucleo. The evaluation board is based on the L6362A IO-Link PHY device with fully integrated EMC protection (according to IO-Link v1.1 specification) and surge protection (according to IEC 60947-5-2). It provides an affordable and easy-to-use solution for the development of IO-Link and SIO applications letting you quickly evaluate the communication features and robozarstness of the L6362A. The STEVAL-IOD003V1 interfaces with the STM32 controller via UART and GPIO pins and is compatible with the Arduino UNO R3 (default configuration) and ST morpho (optional, not mounted) connectors.

Attention: For additional technical specifications, please refer to the accompanying datasheet in the attachment section.

Features:

1. Ground and VCC wire break protections
2. Compatible with STM32 Nucleo boards
3. Equipped with Arduino UNO R3 connectors

Package Includes:

1 x STMICROELECTRONICS Evaluation Board, L6362A IO-Link PHY Device, Arduino Compatible, For STM32 Nucleo
