STMICROELECTRONICS Expansion Board, M24LR Dynamic NFC/RFID Tag IC, For STM32 Nucleo

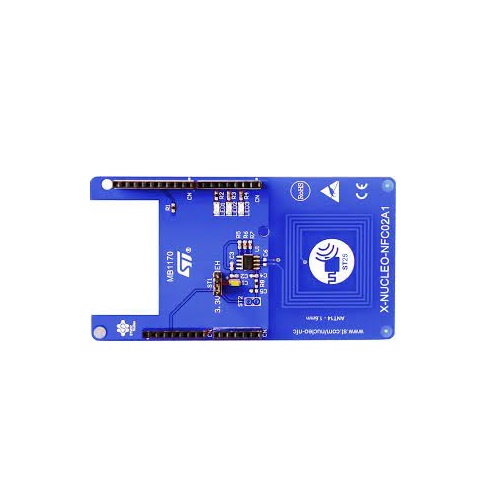

The X-NUCLEO-NFC02A1 is a dynamic NFC/RFID tag board based on M24LR04E-R, for the expansion of STM32 Nucleo boards.
The M24LR04E-R is an NFC Type V/RFID tag IC with a dual-interface 4 Kbit Electrically Erasable Programmable Read-Only Memory (EEPROM) that also features an I2C interface. The EEPROM is organized as 512 x 8-bit in the I2C mode and as 128 x 32-bit in the RF mode. It can be operated either from an external power supply or directly powered by the received carrier electromagnetic field

Note:  For more technical details go through  Datasheet in the attachment section

Features:

1. STM32 expansion board based on the M24LR04E-RMN6T/2 Dynamic NFC/RFID tag
2.  Up to 4 Kbit memory with NDEF support
3.  30 mm x 30 mm 13.56 MHz double-layer inductive antenna etched on the PCB
4. Compatible with STM32 Nucleo boards
5.  Equipped with Arduino™ UNO R3 connector
6.  Self-powered or powered through the Arduino™ UNO R3 connectors

Package Includes:

1 x STMicroelectronics Expansion Board, M24LR Dynamic NFC/RFID Tag IC, For STM32 Nucleo
