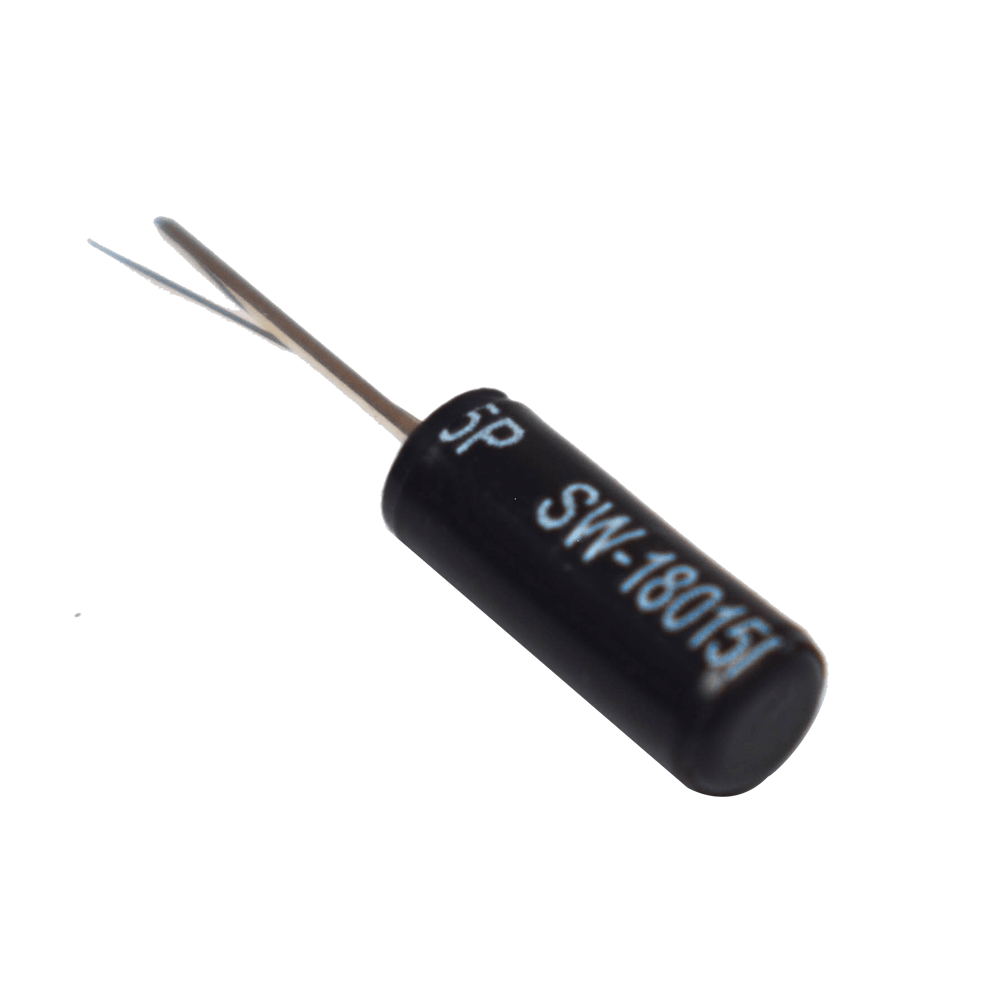

SW-18015P/20P Vibration Sensor Switch (Black)

SKU: RZ24339057 Category: Sensors

₹ 10.35

Out of Stock

Buy SW-18015P/20P Vibration Sensor Switch (Black) online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 10.14
11 – 30	3%	₹ 10.04
31 – 50	4%	₹ 9.94
51 – 100	5%	₹ 9.83

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Category Sensors

Subcategory Sensors (General)

SKU RZ24339057

The SW-18015P is a Sealed High Sensitivity Vibration Sensor Switch. The 18015P series is a spring type with no directional vibration sensor trigger switch; it can trigger with vibration-detecting functionality from any angle. When the switch is in the open circuit OFF-state, external force to touch and corresponding vibration or movement speed achieve adequate (partial) centrifugal force, conductive pick feet will produce instant conductivity, and the switch will return to the open circuit OFF-state when the external force disappears.

Features:

Vibration Detecting
SW-18015P/20p series are spring type, no directional vibration sensor trigger switch, any angle can trigger

Applications

Security devices
Electronic scales

Dimensions:

Diameter: 4.4mm
Height: 11.3mm (excluding leads)

Specifications

Product	SW-18015P/20P
Type	Vibration Sensor
Max Voltage	12V
Max Current	50mA
Closed Resistance	<10 ohm
Open resistance	>10M ohm
Colour	Black
Diameter	4.4mm
Height	11.3mm
Operating temperature range	-40 to 80 Degrees C
Country of Origin	China
