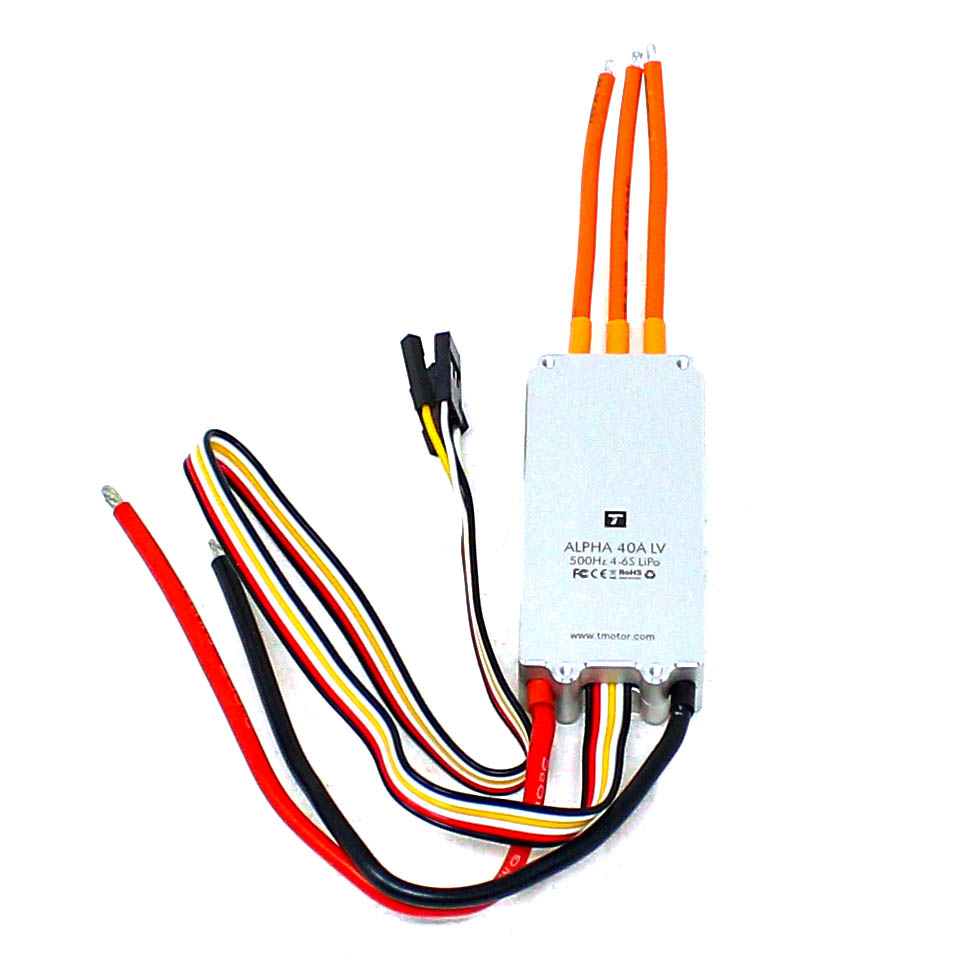

T Motor ALPHA 40A 6S ESC

Low noise ALPHA 40A 6S T-motor ESC Featured with low voltage, fast response and linear throttle, Low interference and high efficiency. ALPHA ESC has faster responses with less pulse current and steady startup as compared with traditional square wave driving. This Tiger motor ESC contains over current/Motor Lock-up/short circuit/Low voltage protection. Its Intelligent design enables ALPHA ESC to timely detect parameters as to voltage, current and temperature.

Incorporates IP55 grade to keep water and dust away protect ESC from damage of liquid corrosion as to pesticide for safe operation and 15-20% light-weight design.

Click Here to explore more.

Features:

1. Special core program for multi-rotor controller greatly improve throttle response
2. Power by independence stabilivolt  IC supply microprocessor is with better antijamming performance for stability
3. FOC sine driving is adopted for less noise and torque ripple , and better motor and ESC protection
4. FOC ESCs are with output interface of RPM signal and error status signal
5. Parameter as to real-time output throttle, RPM, current, capacity temperature and MOSFET temperature are available
6. 30KHz PWM driving frequency
7. Online upgrading of ESC firmware is available (Data LINK is needed)

Packages Includes:

1 x T Motor ALPHA 40A 6S ESC

1 x User Manual
