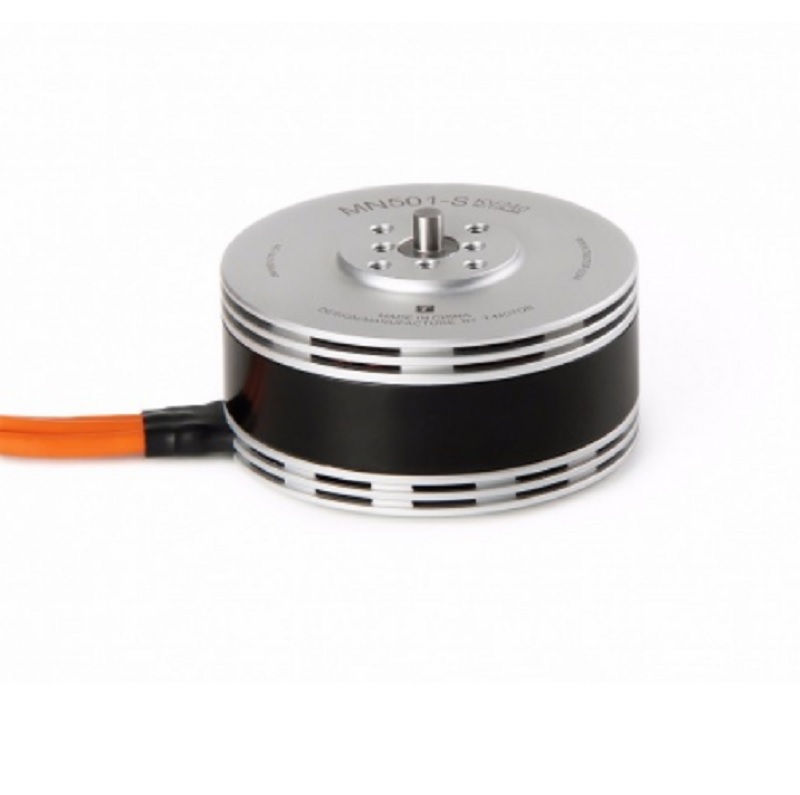

T Motor MN501-S KV360
Buy T Motor MN501-S KV360 online, Order today to get instant delivery in all over india.
Out of Stock
You're on the list! We'll email you when this product is back in stock.
Enter your email to be notified when this product is available again.
Features:
- Strong power ,long service life
- Excellent cooling performance
- Anti-high temperature/Anti-overload
- Dust-resistance/Waterproof/Anti-corrosion
Specifications:
- Motor size: 55.6°33.9mm
- Stator Imported silicon steel sheet; Anti-rust treatment; 150°Chigh temperature-resisting coatings
- Configuration 24N28P
- Shaft Diameter IN: 6mm, OUT: 4mm
- Bearing: Imported 696ZZ
- Magnet Level: 180°C high temperature resistance
- Silicon Cable: 16AWG x 150MM
- Copper Wire: 220°C high temperature resistance: Level C
- Coil Insulation Test: 500V
- Centrifugal Cooling Design: YES
- Rotor Dynamic Balance Standard: <5Mg
- Motor Dynamic Balance Standard: <10Mg
- IP: IP45
- KV: 360
- Idle Current ( 15V): 1.4A
- Peak Current (180s ): 40A
- Max. Power (180s ): 1000w
- Internal Resistance: 45mQ.
- Rated Voltage (Lipo): 6s
- ESC Recommendation: AIR 40A
- Propeller Recommendation: 17-18″
- Motor Weight (Incl. Cable): 175g
- Package Weight: 350g
Packages Includes:
1 x T Motor MN501-S KV360
