T Motor Navigator MN3110 780KV

MN3110 T Motors comes with high-strength construction and super balance. RC Tiger motor MN3110 is a flawless motor upgraded from 2216,2217,2808,2810. T-Motor MN3110 series adopt high standard bearing EZO which was originally imported. This improves the use-life of motors.

The Motor is equipped with a quality bearing that also ensures the motor works steadily at a low velocity, which contributes to the stability of the propeller during the flight. Flexible design to match different relevant parts which can install main props in the current market.

Features:

1. High-Quality build and smooth performance
2. Equipped with a bearing twice as large as the same-size motor

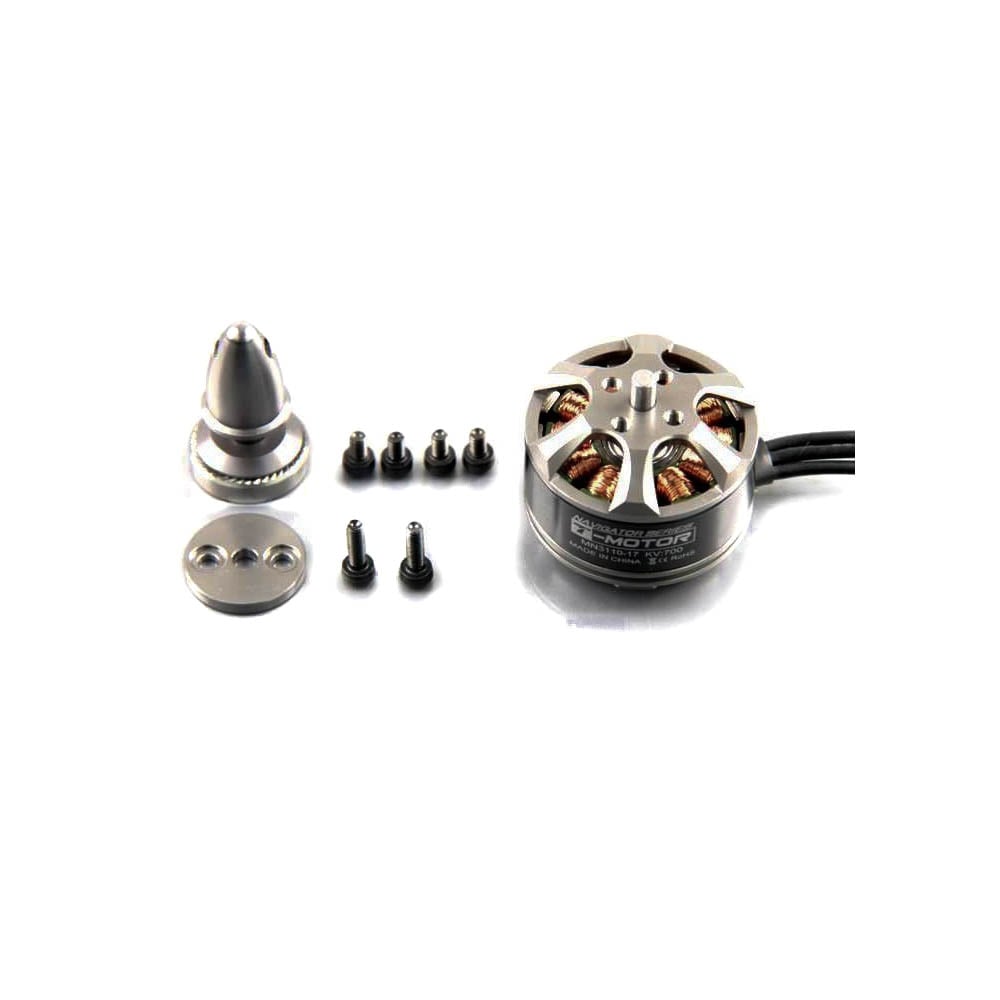

3. Compatible accessories available from the same brand
4. Flexible mount holes designed to match different relevant parts

Specifications:

1. Model: MN3110
2. Rated KV: 780
3. Configuration: 12N14P
4. ldle current(10)@10v(A): 0.4A
5. No.of Cells(Lipo): 3-4S
6. Max Continuous current(A)180S: 26A
7. Max Continuous Power(W)180S: 481W
8. Max. efficiency current: (3-10A)>81%
9. Internal resistance: 71mΩ
10. Stator Diameter: 31mm
11. Stator Length: 10mm
12. Shaft Diameter: 4mm

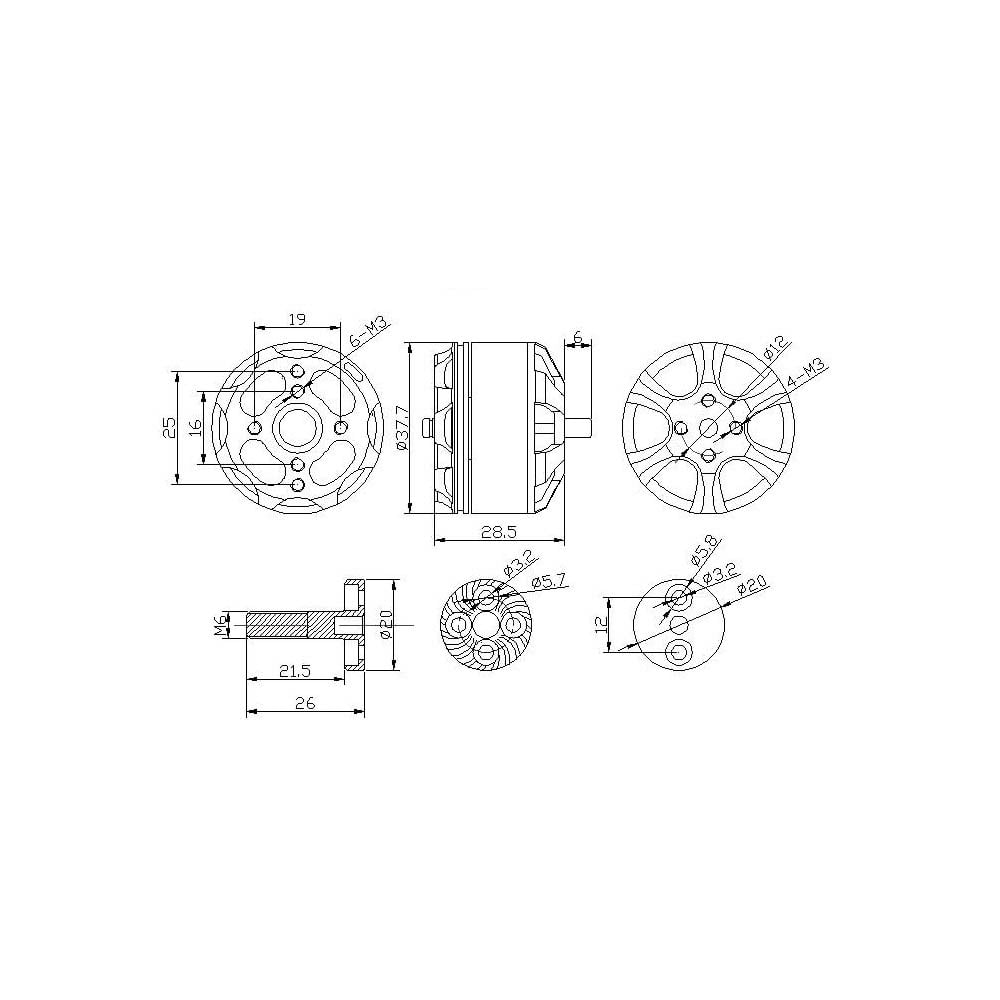

13. Motor Dimension(Dia.*Len): Φ37.7×28.5mm
14. Weight(g): 80g

Package Includes:

1 x T Motor Navigator MN3110 780KV
