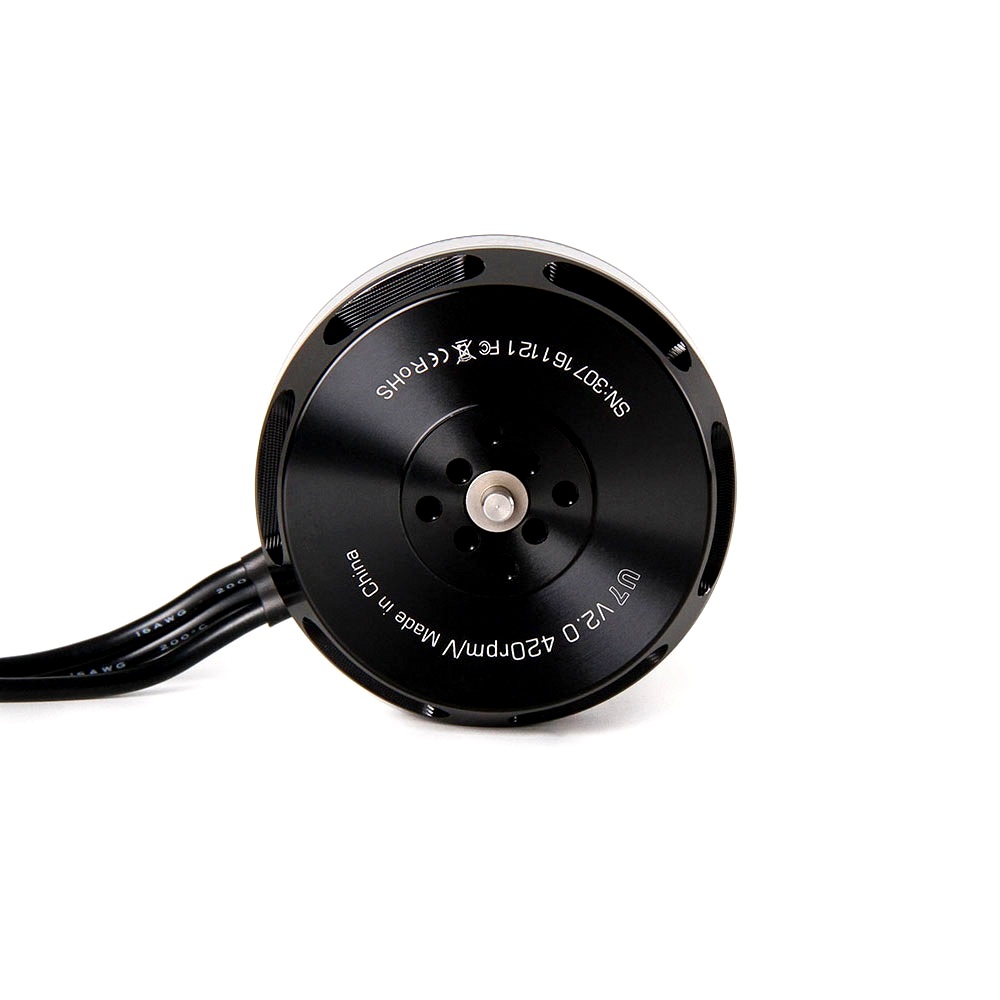

T-Motor U7-V2.0 490KV Drone Motor
Buy T-Motor U7-V2.0 490KV Drone Motor online, Order today to get instant delivery in all over india.
Out of Stock
You're on the list! We'll email you when this product is back in stock.
Enter your email to be notified when this product is available again.
This waterproof and dustproof U7-V2.0 490KV motor from T-Motors is ideal for AUW 10- to 24-kg multicopters. This RC Tiger T-motor provides swift airflow due to its unique side-hole design and cools 2.5 times faster than others.
It has an imported oxygen-free copper coil that can tolerate a temperature of 180 degrees to enhance short-circuit resistance. 0.2mm high standard silicon steel sheet precision winding reduces heat and eddy thus improving efficiency.
The motor is equipped with imported German bearings, which prolong the service life to over 1600 hours under trouble-free operation. It also enables the motor to run more smoothly and longer with less noise.
Features and Specifications:
- KV Rating: 490
- Configuration: 12Nl4P
- Shaft Diameter: 4mm
- Motor Dimension(Dia.*Len): 60.7×39.5mm
- Weight: 258g
- Idle current @10V: 1.1 A
- No.of Cells(Lipo): 3~8S
- Max Continuous current(A)l 80S: 44A
- Max Continuous Power (W)180S: 1300W
- Max. efficiency current: (10-25A)>81%
- internal resistance: 21 mΩ
Package Includes:
1 x T motor U7-V2.0 490KV Motor

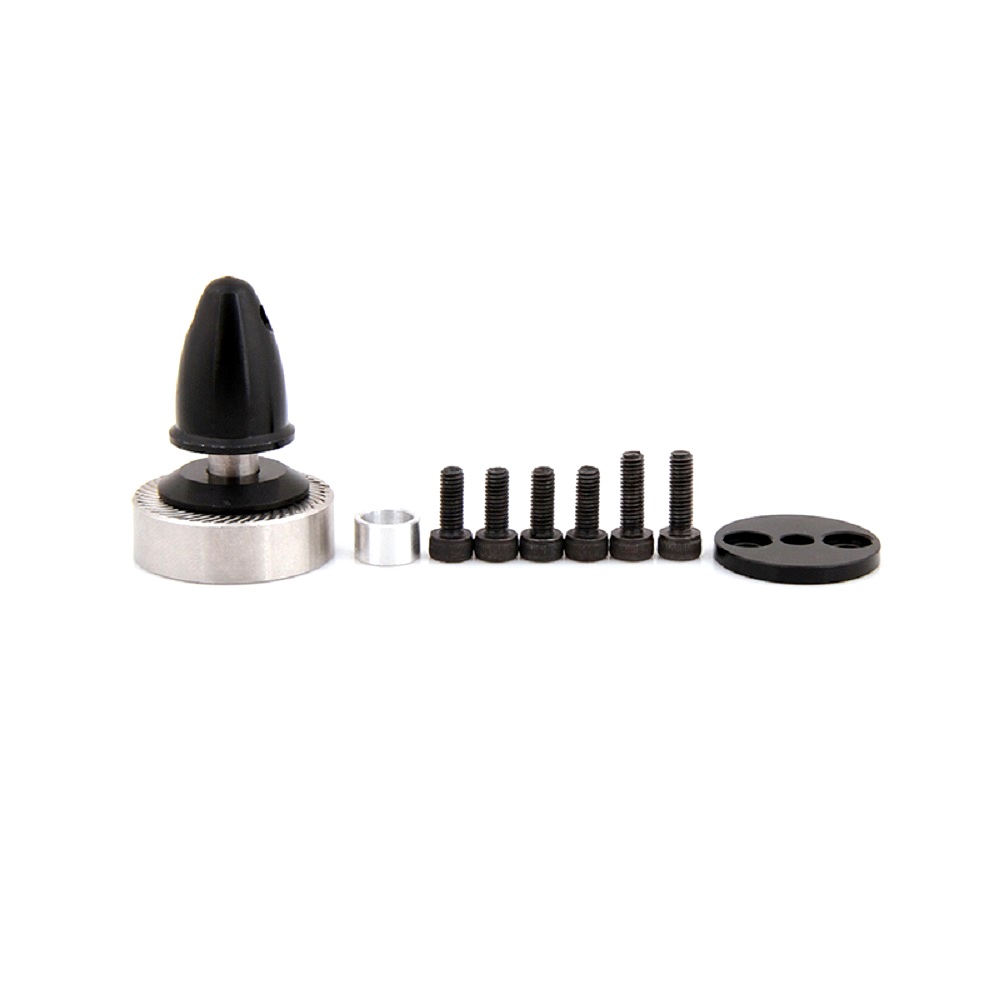

1 x Accessories Set
