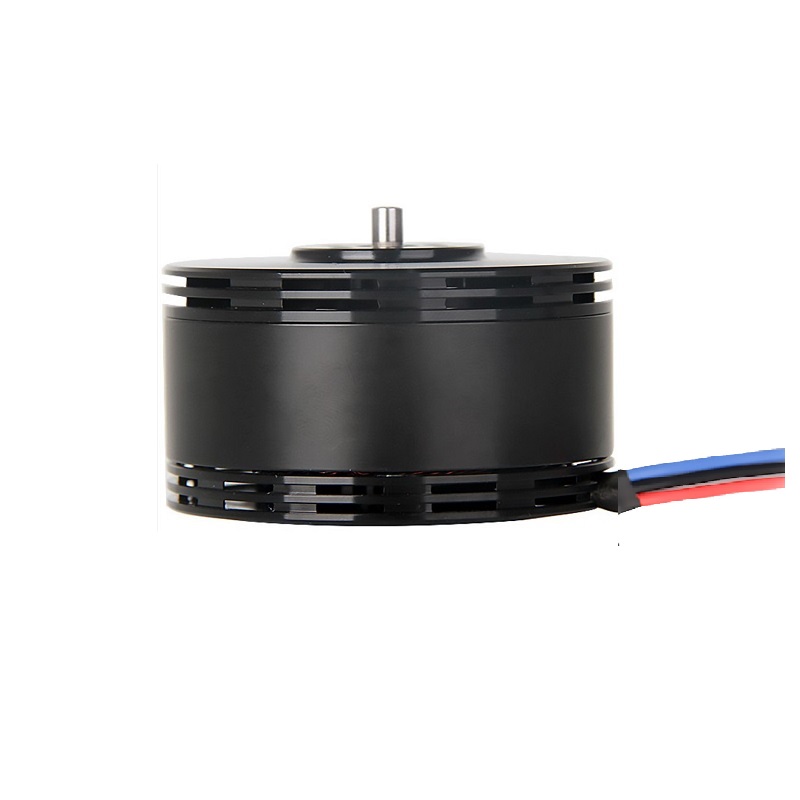

T Motor V505 KV260

T-MOTOR V505 KV260 Brushless Motor For Vertical Take-off And Landing Fixed-wing VTOL Rotor UAV Power Motor designed for VTOL power system with abundant power, big bull-to-weight ratio strong overload ability & environment adaptiveness features guarding for every flight. Optimized special high temperature-resistant enameled wire high temperature resistant curved magnets strengthen the passive heat-resistant ability. centrifugal  fan structure, improving the active hand dissipation capacity of the motor

Features:

1. Sharp Take off and Steady Landing
2. Strong overload ability & environmental adaptiveness
3.  No need for a power replacement power setup in 3000 meters Below altitude environment

Specifications:

1.  Motor/KV : V505 KV260
2. Motor Size (mm): φ55.6*38.9
3. Stator Technology: Anti-rust Treatment 180°c high-temperature resisting coating
4. Configuration: 24N28p
5. Shaft Diameter (mm): IN:6 OUT:4
6. Bearing: Imported 696zz
7. Magnet Temperature Resistance Grade: class E 150°c
8. Lead (mm): 16AWG*600
9. Coil Withdraw Voltage: 500v/5s
10. Rotor Dynamic Balanced Standard (mg):<5mg

Package Includes:

1 x T Motor V505 KV260
