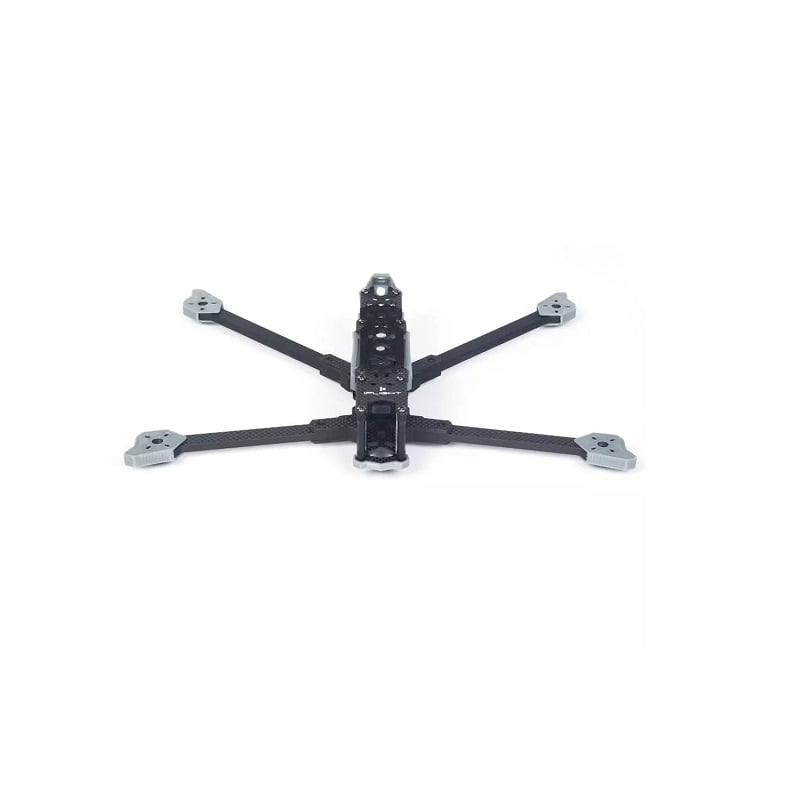

TITAN DC7 HD 333mm FPV Freestyle Frame

The TITAN DC7 HD Frame perfectly fits the amazing new DJI FPV system with boomerang arms, this quad makes flying FPV truly breathtaking.

Features:

1. Popular Deadcat style configuration, No prop in View
2. Optimized weight distribution: DJI unit and Stack centered
3. Fits both 30.5x and 20x stacks
4. Full 3K Carbon Fiber airframe with chamfered boomerang arm
5. 333mm wheelbase, weight: 208.8g dry with TPU parts

Specifications:

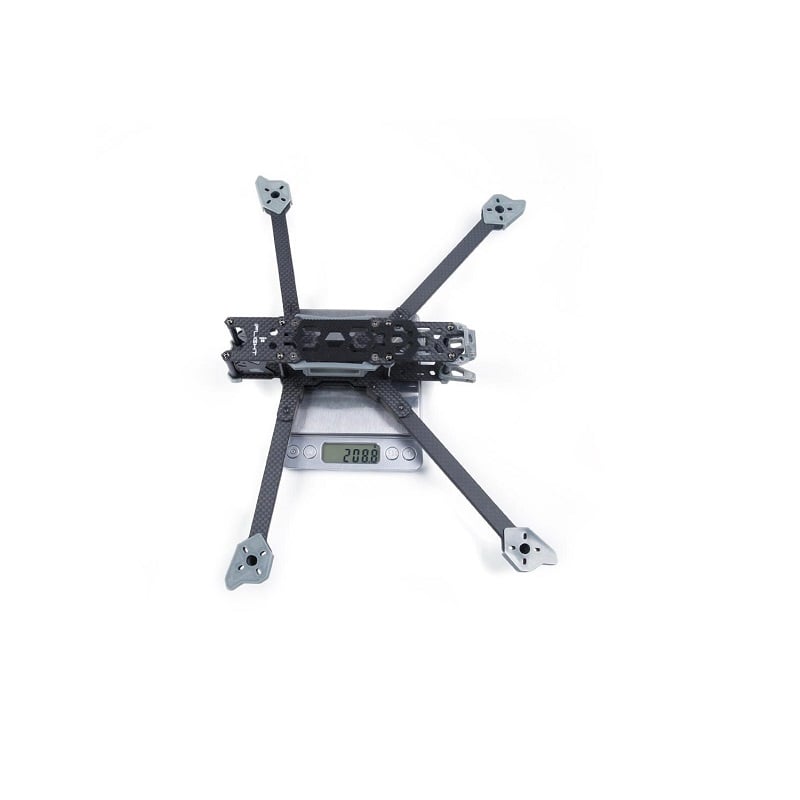

1. Weight: 208.8 (with TPU parts, and battery anti-slip pads)
2. Wheelbase (mm): 333
3. Main body dimension (mm): 183*287
4. Bottom-to-top distance (mm): 35
5. Arm thickness (mm): 6
6. Bottom plate thickness (mm): 3
7. Top plate thickness (mm): 2.5
8. Camera plate thickness (mm): 1.5mm( 2.5mm included TPU inserts)
9. Mounting Holes : 30.5*30.5mm / 20*20mm
10. Support camera size: 19*19mm 22*22mm
11. Recommended motors: 22xx, 23xx

Package Includes:

1 x TITAN DC7 HD Frame

1 x Screw Bag

1 x TPU Camera mount adapters

4 x Arm guard/Motor mount

1 x TPU Bracket Mount for DJI Air Unit

1 x TPU Antenna Mount for DJI Air Unit Antenna

1 x TPU bottom plate front protective mount

1 x TPU bottom plate rear protective mount

1 x Battery Anti-slip Mat

2 x Battery Straps
