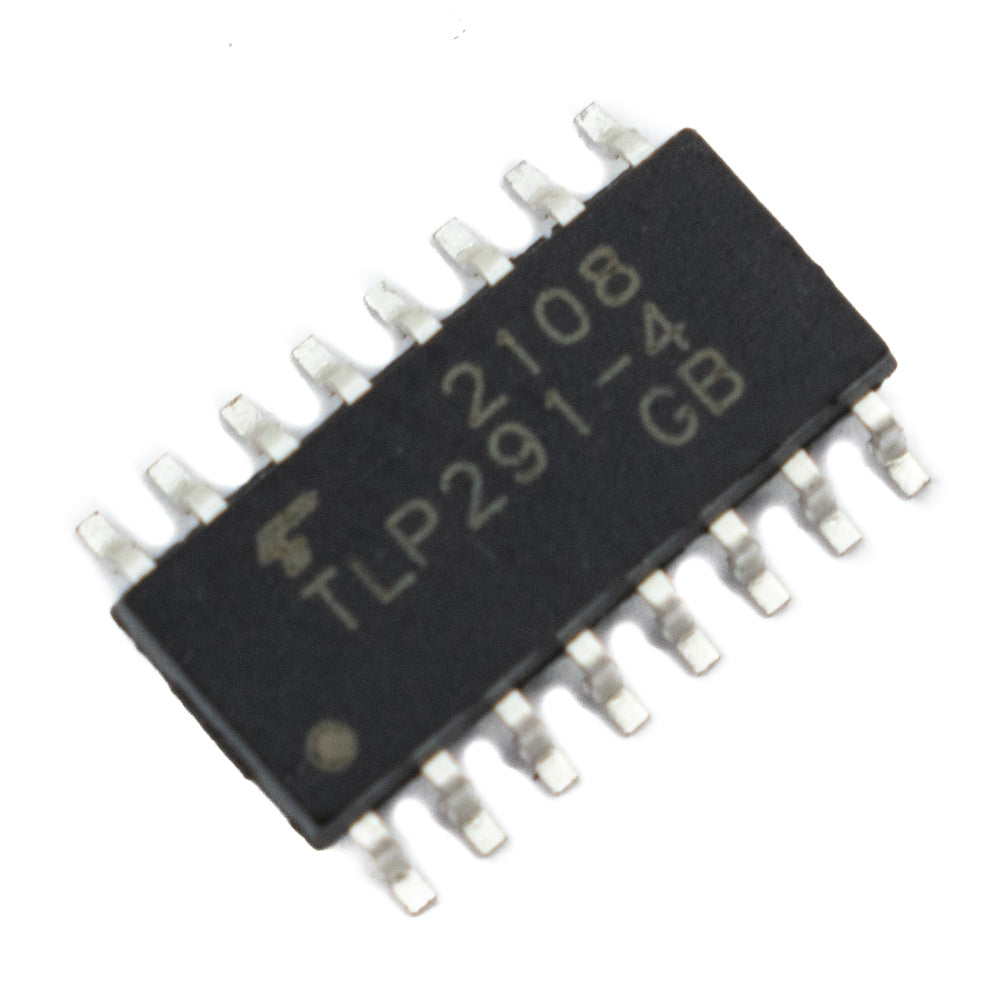

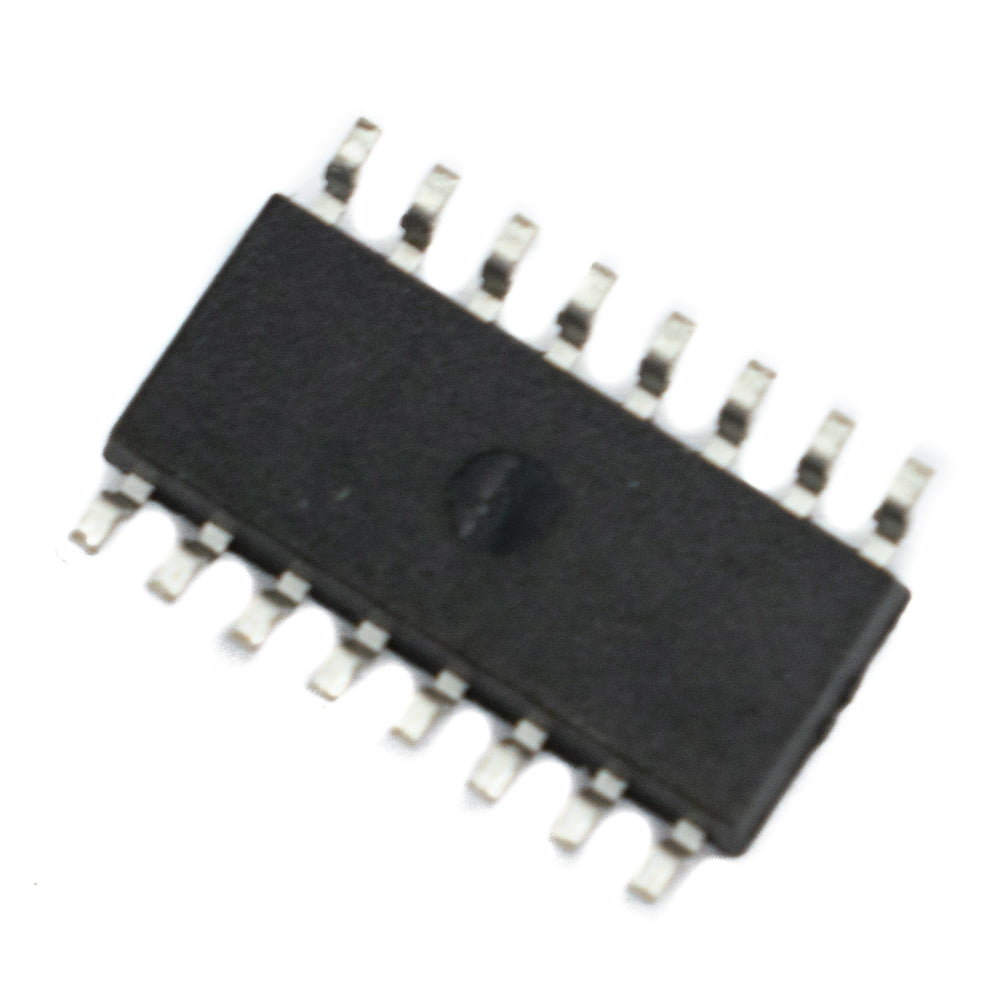

TOSHIBA TLP291-4 Optocoupler SMD IC

SKU: RZ24341399 Brand: Toshiba Category: General

₹ 102.35

Out of Stock

Buy TOSHIBA TLP291-4 Optocoupler SMD IC online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 100.30
11 – 30	3%	₹ 99.28
31 – 50	4%	₹ 98.26
51 – 100	5%	₹ 97.23

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Brand Toshiba

Category General

Subcategory General

SKU RZ24341399

The Toshiba TLP291- 4 is made up of a phototransistor that is optically connected to an infrared emitting diode made of gallium arsenide. TLP291-4 is housed in the SO16 packaging, which is relatively compact and thin. TLP291-4 is appropriate for high-density surface mounting applications such as programmable controllers and hybrid ICs since it has a guaranteed wide operating temperature (Ta=-55°C to110°C).

Features:

Collector-emitter voltage: 80 V (min)
Current transfer ratio: 50 % (min) GB Rank: 100 % (min)
Isolation voltage: 2500 Vrms (min)
Operating temperature: -55°C to 110°C

Applications

Programmable Logic Controllers (PLCs)
Switching Power Supplies
Simplex/Multiplex Data Transmission

Datasheet

Specifications

Model	TLP291-4
Brand	TOSHIBA
Pins	16
Mounting	Surface Mount
Input forward current	50mA
Input forward current (pulsed)	1A
Input reverse voltage	5V
Input power dissipation	70mW
Collector-emitter voltage	80V
Package	SMD
Junction temperature	125°C
Country of Origin	China
