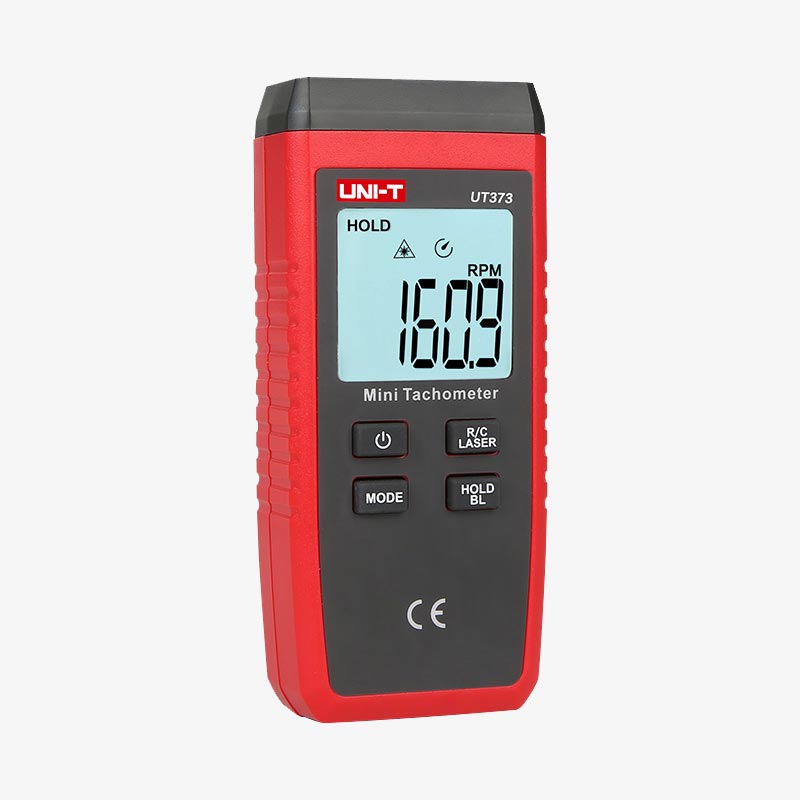

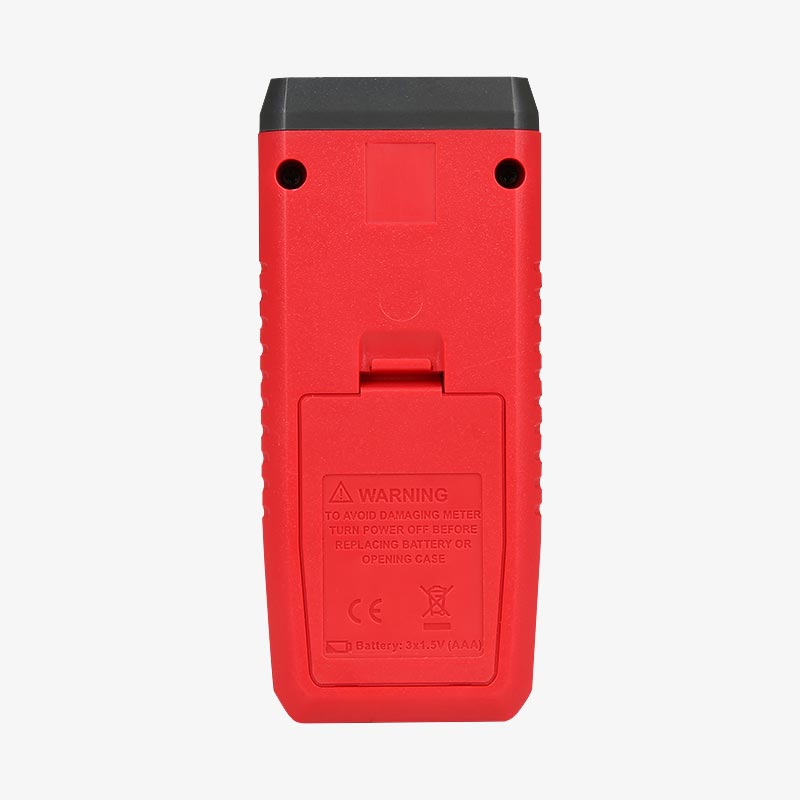

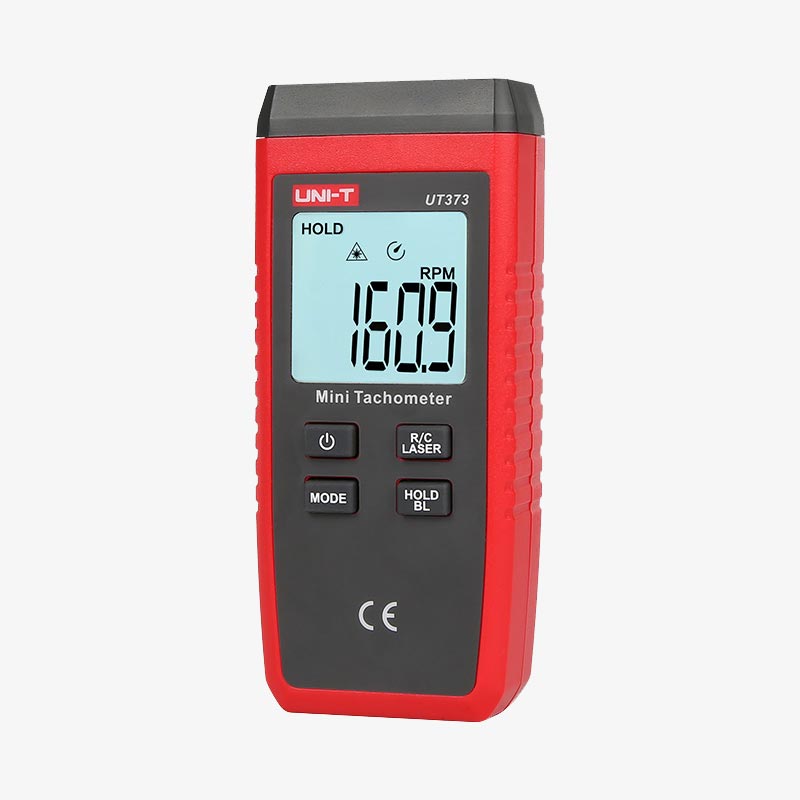

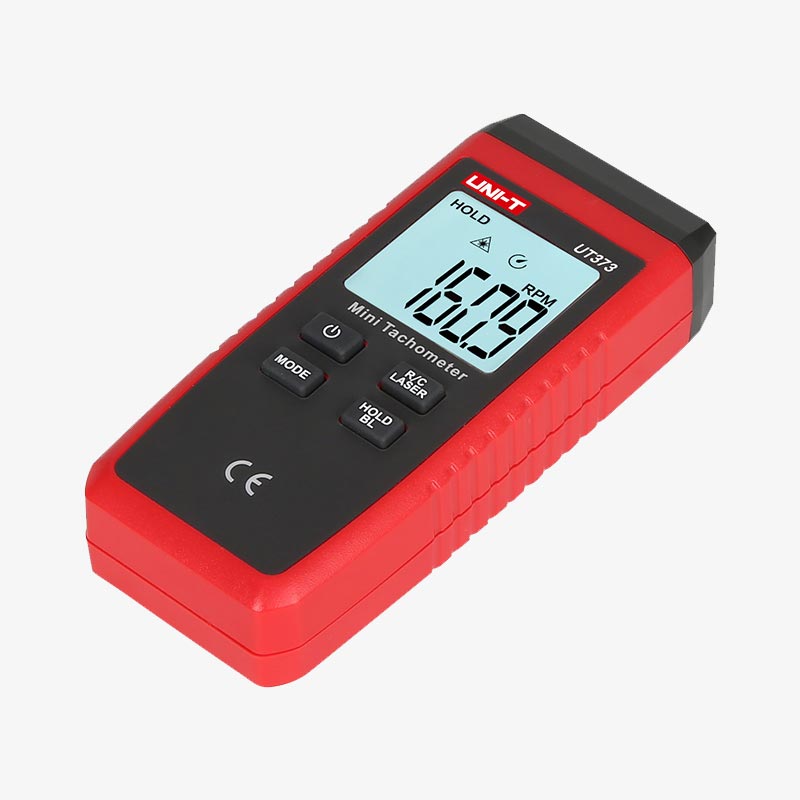

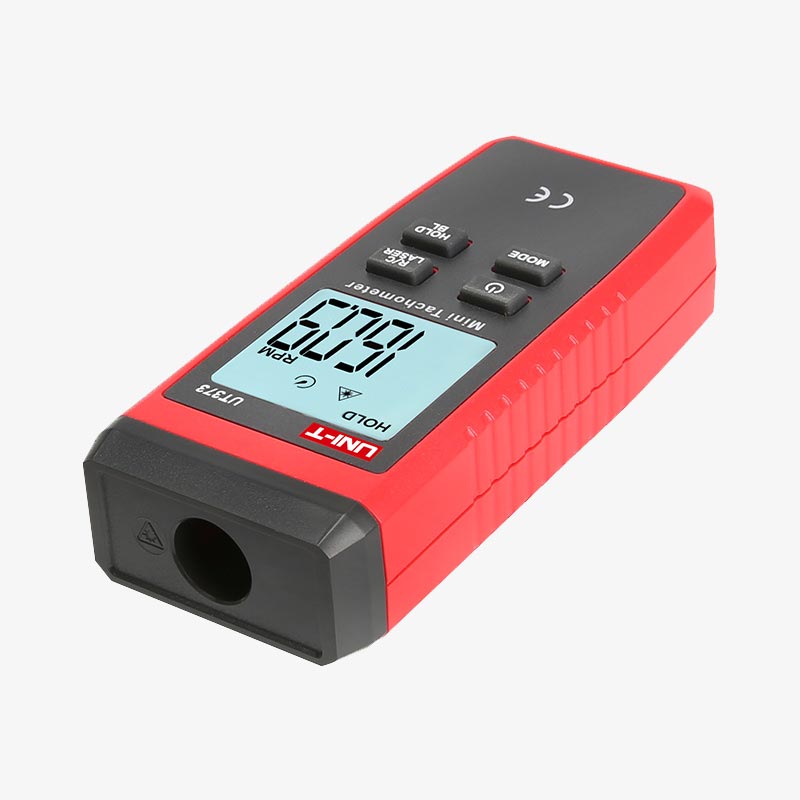

UNI-T UT373 Auto Ranging 10RPM-99999RPM Non-Contact Laser Digital Tachometer with High Precision

UT373 is a reliable digital non-contact tachometer used to measure rotation speed of motors and other machines. This device is able to display results in RPM or revolution count. UT373 is able to safely measure rotational objects through a non-intrusive method. The UNI-T UT373 Auto Ranging Laser Digital Tachometer is the embodiment of precision in motion. Crafted for professional use and designed to surpass conventional measuring tools, this tachometer is a beacon of stability, safety, and performance.

Features:

• Auto Ranging: Seamlessly adapts to different speed ranges, simplifying the measurement process.
• Wide Range: From a minimum of 10 RPM to a maximum of 99,999 RPM, it accommodates a vast spectrum of applications.
• High Precision: Delivering remarkable precision in speed measurement.
• Max/Min Mode: Easily switch between maximum and minimum measurement modes, ensuring comprehensive data capture.
• Non-Contact Measurement: Utilizes laser photoelectric technology for safe, non-contact speed measurements.
• 200mm Target Distance: Offers a generous target distance, enhancing measurement flexibility.

Click Here for Data Sheet!

Specifications:

• RPM Measurement Range: 10.0~9999.9RPM (0.1 Resolution) 10000~99999RPM (1 resolution)
• Counting Measurement Range: 0~99999 counts (1 resolution)
• Auto Range: Supported
• Auto Power Off: Enabled
• Low Battery Indication: Included
• Laser-On Indication: Present
• Overload Indication: Provided
• Refresh Rate: Adjustable from 1s to 7s (1s for speeds over 120 RPM)
• Sensor Type: Combines a photodiode and laser tube
• Target Distance: Range from 50mm to 200mm
• Measuring Angle: ±30° from perpendicular
• Drop Test: Survives drops from heights of 1m

Package Includes:

Digital Tachometer and User Manual.
