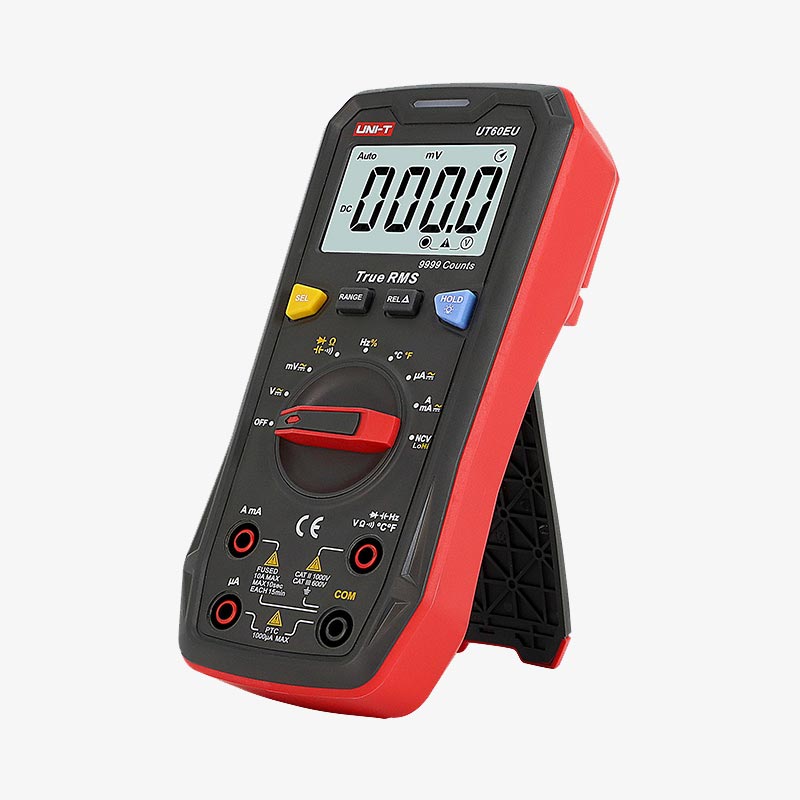

UNI-T UT60EU Digital Multimeter 1000V AC DC Voltage Current Meter
Buy UNI-T UT60EU Digital Multimeter 1000V AC DC Voltage Current Meter online, Order today to get instant delivery in all over india.
Out of Stock
You're on the list! We'll email you when this product is back in stock.
Enter your email to be notified when this product is available again.
UT60 series digital multimeters provide True-RMS measurement, 9999-count resolution, non-contact voltage detection and many convenient features for users’ testing needs. These auto-ranged meters can measure up to 1000V AC/DC voltage, 10A AC/DC current and 100MΩ resistance. The easy-to-use interface with backlight enables you to detect equipment quickly even in dark places. This CE certified meter meets CAT II 1000V/CAT III 600V safety rating with rugged double-injection housing.
Features:
- True-RMS: Ensures accurate measurements even for non-sinusoidal waveforms.
- High Resolution: The 9999-count display provides precise and detailed results.
- Bluetooth Connectivity: Allows convenient wireless data transfer, enhancing efficiency.
- Duty Cycle Measurement: Measures duty cycles ranging from 0.1% to 99.9%.
- Diode/Continuity Test: Enables quick checks on diodes and verifies electrical continuity.
- Temperature Measurement: Measures temperatures between -40℃ to 1000℃ (-40°F to 1832°F).
- Non-contact Voltage Detection: Ensures user safety by detecting AC voltage without direct contact.
- Analog Bar and Data Hold: Visualizes measurements with an analog bar and supports data hold.
- Backlight with Relative Mode: Enhances visibility in low-light conditions, and relative mode aids in comparing measurements.
- Auto/Manual Range Selection: Automatically selects the appropriate measurement range or allows manual selection.
- Low Battery Indication: Alerts when the battery voltage drops below 3.6V.
- Three-Color LED Light Indicator: Provides quick visual cues for various functions.
- High Safety Standards: Complies with CAT II 1000V/CAT III 600V safety ratings.
Click Here for Data Sheet!
Specifications:
| Specifications | Range | UT60EU |
|---|---|---|
| DC Voltage | 9.999mV / 99.99mV / 999.9mV / 9.999V / 99.99V / 999.9V | ±(0.5%+3) |
| AC Voltage | 9.999mV / 99.99mV / 999.9mV / 9.999V / 99.99V / 999.9V | ±(0.8%+3) |
| DC Current | 999.9μA / 999.9mA / 9.999A / 10A | ±(0.8%+3) |
| AC Current | 999.9μA / 999.9mA / 9.999A / 10A | ±(1.0%+3) |
| Resistance | 999.9Ω / 9.999kΩ / 99.99kΩ / 999.9kΩ / 9.999MΩ / 99.99MΩ | ±(0.8%+2) |
| Capacitor | 9.999nF / 99.99nF / 999.9nF / 9.999μF / 99.99μF / 999.9μF / 9.999mF / 9.99mF (UT60EU/UT60BT) / 99.9mF (UT60S) | ±(4.0%+5) |
| Frequency | 99.99Hz - 9.999MHz | ±(0.1%+5) |
| Duty Cycle | 0.1 - 99.9% | ±(3%+5) |
| Temperature | -40℃ - 1000℃ / -40°F - 1832°F | ±4℃ / ±5℉ |
| Display Count | 9999 | 9999 |
| Auto Range | √ | |
| REL | √ | |
| NCV | √ | |
| Diode | √ | |
| Continuity Test | √ | |
| Acousto-optic Indication (NCV/continuity/battery power) | √ | |
| Low Battery Indication | ≤3.6V | √ |
| Data Hold | √ | |
| Auto Power Off | 15Min | √ |
| Operation Temperature | 0℃ - 40℃ | |
| Safety | CAT II 1000V / CAT III 600V |
Package Includes:
Test Leads, Digital Multimeter and User Manual.
