Waveshare 5inch Display for Raspberry Pi, 800×480, DPI Interface, IPS, No Touch

5inch Display For Raspberry Pi, 800×480, DPI Interface, IPS, No Touch

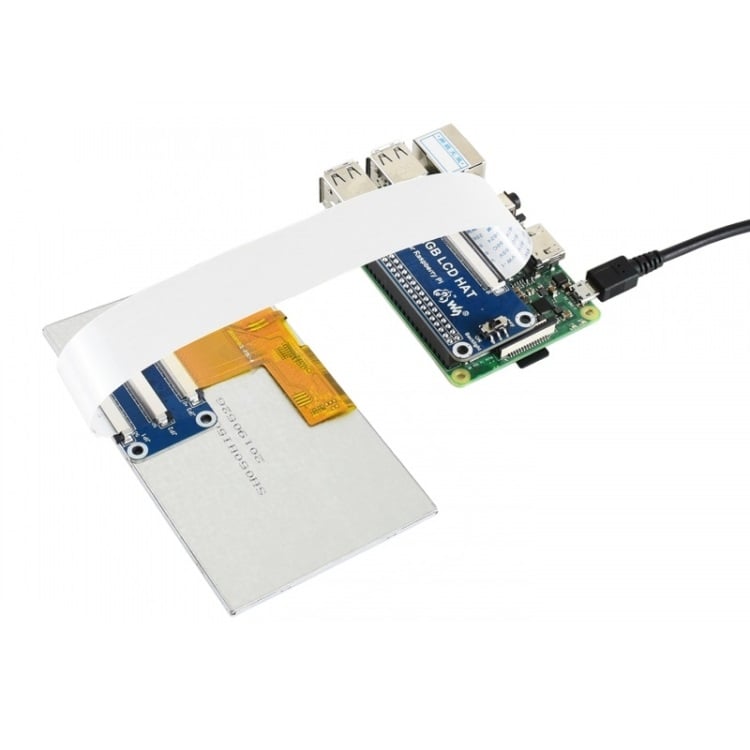

Hardware connection

1. Connect the RGB LCD HAT to the JP1 socket on RGB 50P TO 40/50P adapter with an FFC cable (white).
2. Connect the FPC cable (golden) on LCD to the JP3 socket on RGB 50P TO 40/50P adapter.

Note: Please first unlock the ZIF connector then gently remove/insert the cable. As shown below

Features:

1. 5 inch IPS screen, 800×480 hardware resolution
2. Compatible with Raspberry Pi 2B/3B/3B+/3A+/Zero/Zero W/Zero WH
3. The LCD is directly driven by Raspberry Pi DPI interface, refresh rate up to 60Hz
4. Support Raspbian, Ubuntu, OSMC, etc.
5. Backlight can be turned off to lower power consumption
6. Compact size, suit for various projects

Note:  This item can be used for displaying ONLY, if a touch panel is required, please consider 5inch HDMI Capacitive Touch LCD OR 5 inch HDMI Resistive Touch LCD.

The Case:

1. Material: high-quality bicolour Acrylic, black and white
2. Comes with bottom holder, optional tilt angle, 45° or 60°
3. Features mounting holes for Raspberry Pi A+/B+/2B/3B/3B+

Package Includes:

1 x 5inch 800×480 IPS LCD
1 x RGB LCD HAT (B)

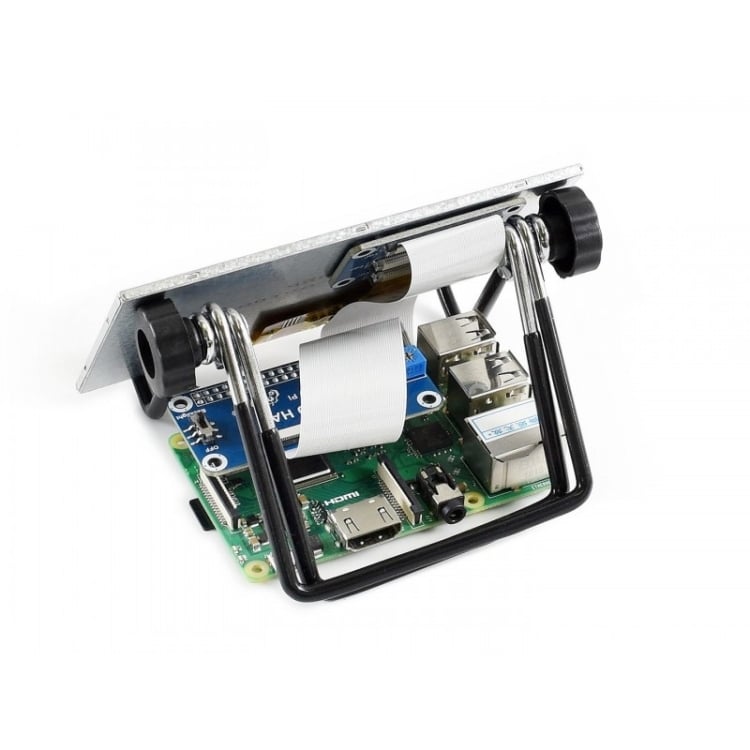

1 x LCD stand (small size)
