Waveshare 7inch Capacitive Touch IPS Display for Raspberry Pi, with Protection Case, 1024×600, DSI Interface
Specifications and Features:
- 7inch IPS display with capacitive touch panel, hardware resolution is 1024 x 600
- Capacitive touch, supports up to 5-points touch
- Toughened glass capacitive touch panel, 6H hardness
- DSI interface, refresh rate up to 60Hz.
- Driver is provided for Raspberry Pi OS (Raspbian)
- Brightness is adjustable by software

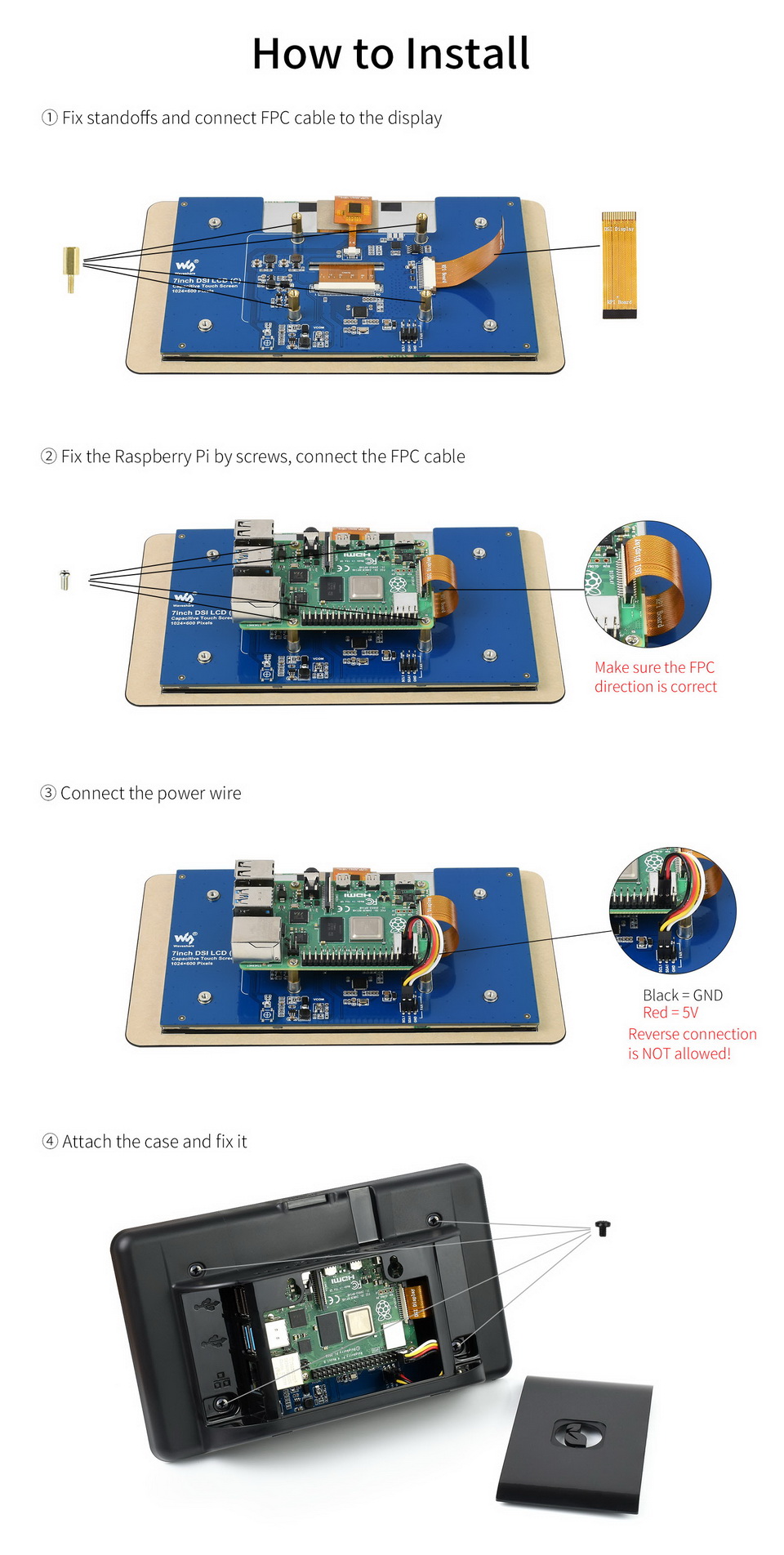

Hardware Connection
- Connect the 7inch DSI LCD (C) (display hereafter) to the DSI interface of Raspberry Pi boards by 15PIN FPC cable.

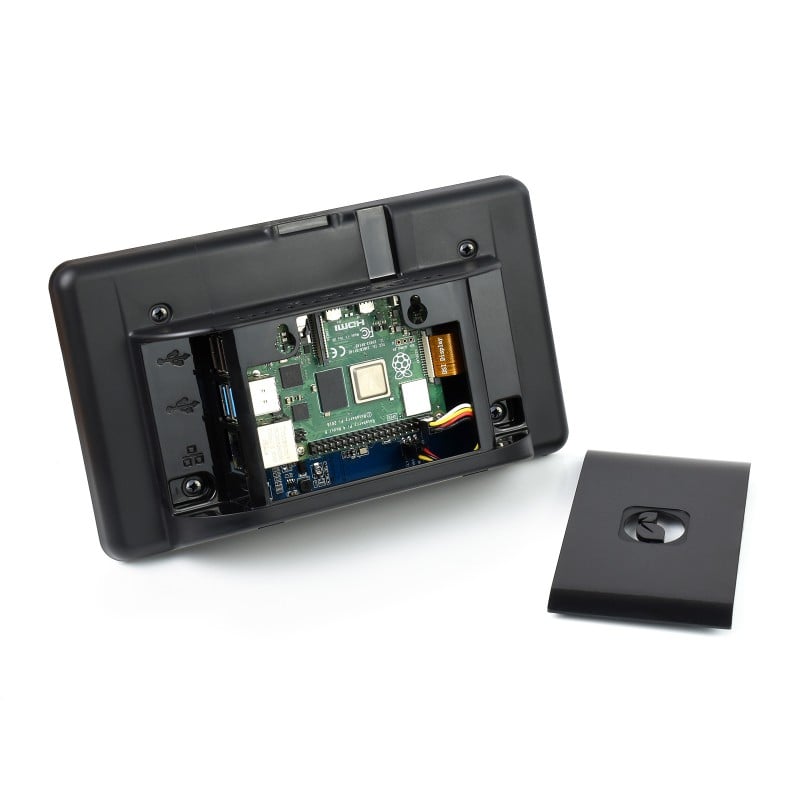

- For easy use, you can fix the Raspberry Pi board to the backside of the display by standoffs and screws provided.
- Connect the 4PIN cable between the display and the 40PIN of Raspberry Pi according to the figure below.
Package Includes:
1 x Waveshare 7inch Capacitive Touch IPS Display
1 x Protection Case
