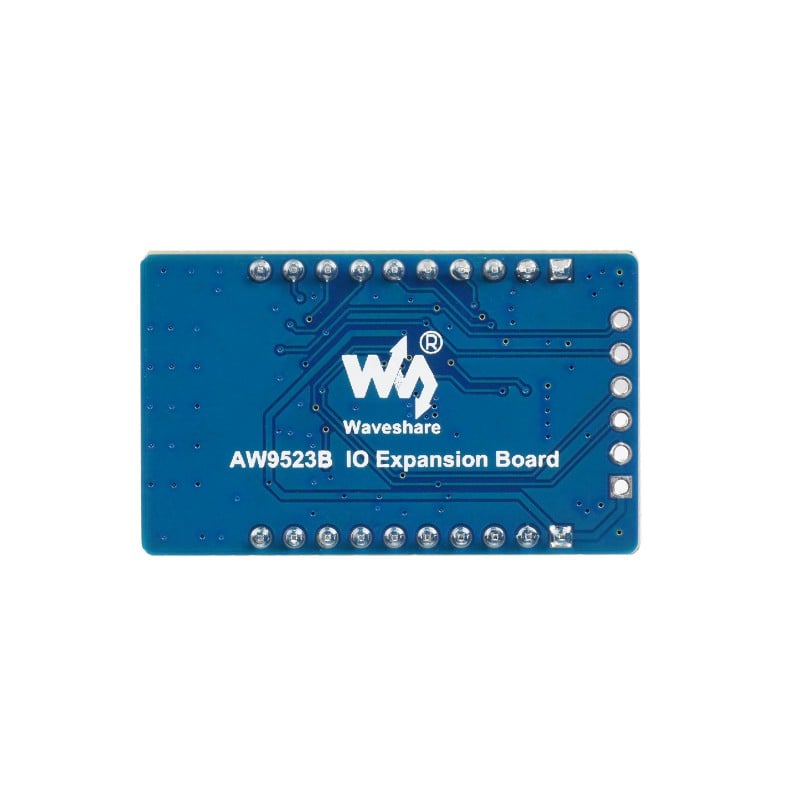

  11. Waveshare AW9523B IO Expansion Board, I2C Interface, Expands 16 I/O Pins
Waveshare AW9523B IO Expansion Board, I2C Interface, Expands 16 I/O Pins
🔍 Zoom

Waveshare AW9523B IO Expansion Board, I2C Interface, Expands 16 I/O Pins

SKU: RZ24312652 Brand: Arduino Category: Connectors & Cables
₹ 573.85
Out of Stock

Buy Waveshare AW9523B IO Expansion Board, I2C Interface, Expands 16 I/O Pins online, Order today to get instant delivery in all over india.

Bulk Discount Pricing
Quantity Discount Price / Unit
5 – 10 2% ₹ 562.37
11 – 30 3% ₹ 556.63
31 – 50 4% ₹ 550.90
51 – 100 5% ₹ 545.16

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details
Brand Arduino
Subcategory Interface Modules
SKU RZ24312652

AW9523B use I2C interface, allows using 4 expansion boards at the same time by modifying the i2c address, expand up to 64 I/O ports.

Pin configuration:

  1. VCC: Power input(3.3V/5V)
  2. GND: GND
  3. SDA: I2C Data input
  4. SCL: I2C Clock input
  5. INT: Interrupt output
  6. RST: Reset

Connect To STM32

Outline Dimensions:


Features:

  1. I2C bus, allows expanding 16 I/O ports by just using two wires
  2. Support driving 16-ch common anode constant current LED, 256-step linear dimming, current controllable
  3. Output interrupt (INT) signal when changing the state of an input port
  4. I2C address configurable by shorting the A0/A1 jumpers
  5. Provides two connector options: PH2.0 header and/or solder pads, allows multi I2C modules to be stacked
  6. Onboard voltage translator, compatible with 3.3V/5V level
  7. Comes with development resources and manual (examples for Raspberry Pi / micro:bit / Arduino / STM32)

Packages Includes:

1 x Waveshare AW9523B IO Expansion Board, I2C Interface, Expands 16 I/O Pins
