Waveshare Dual ETH Mini-Computer For Raspberry Pi Compute Module 4 (Without Power Adapter)

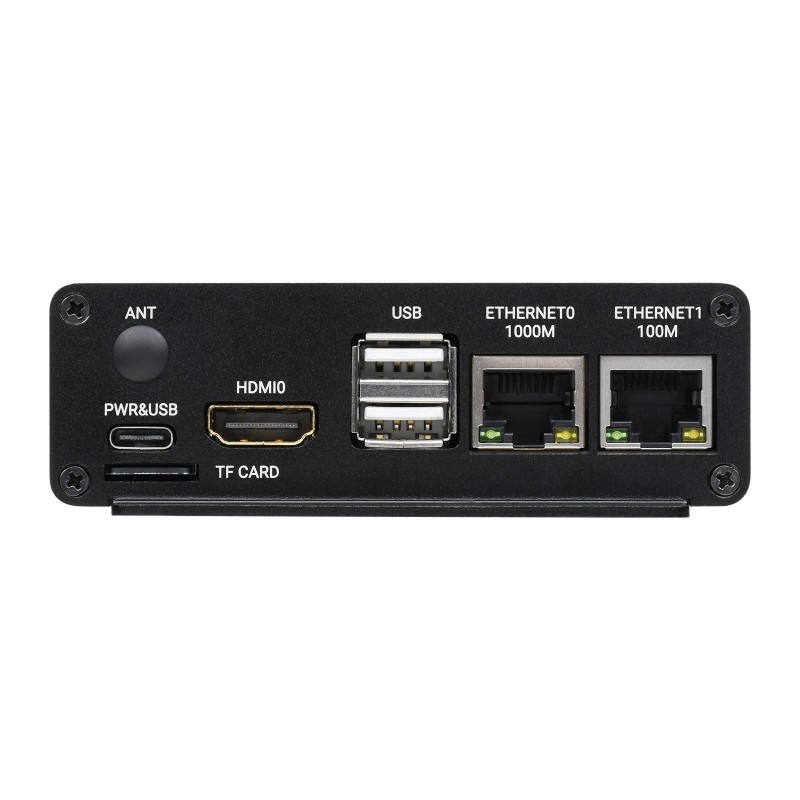

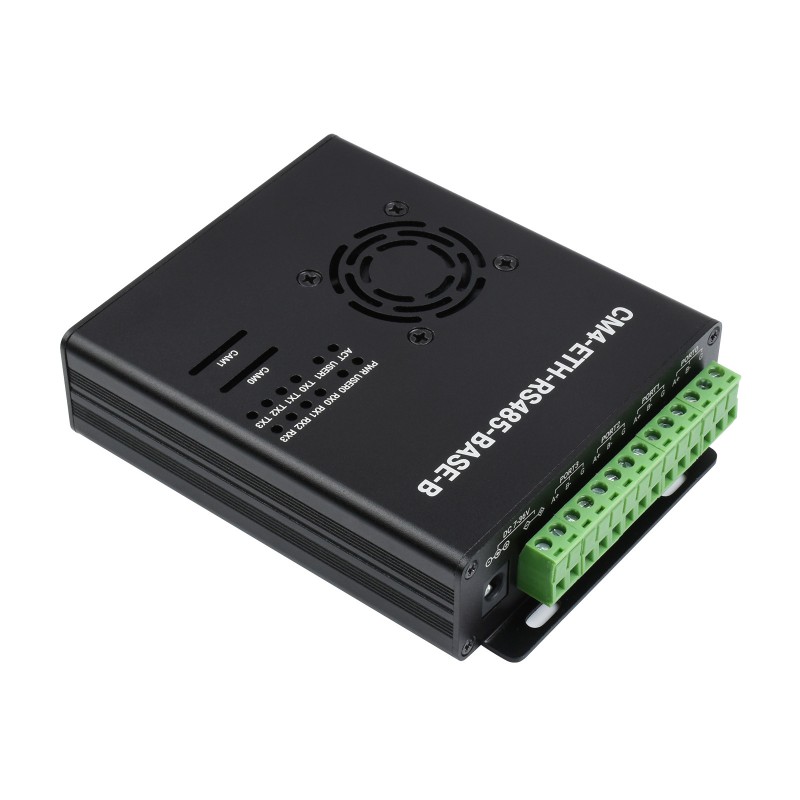

Dual ETH Mini-Computer For Raspberry Pi Compute Module 4(NOT Included), Gigabit Ethernet, 4CH Isolated RS485, USB2.0.CM4-ETH-RS485-BASE-B, which is an expansion board that can be used with Raspberry Pi Compute Module 4, and supports 7-36V DC power supply and 5V DC DC power supply of Type -C interface. Onboard four isolated RS485 interfaces, 100M+1000M dual network ports, HDMI interface, two CSI interfaces and two USB interfaces, etc

Note: Raspberry Pi Compute Module 4(NOT Included)

Features:

1. Cooling Fan Included
2. Precise Cut-Out With Clear Label
3. Dual ETH Quad RS485 Computer Based On CM4

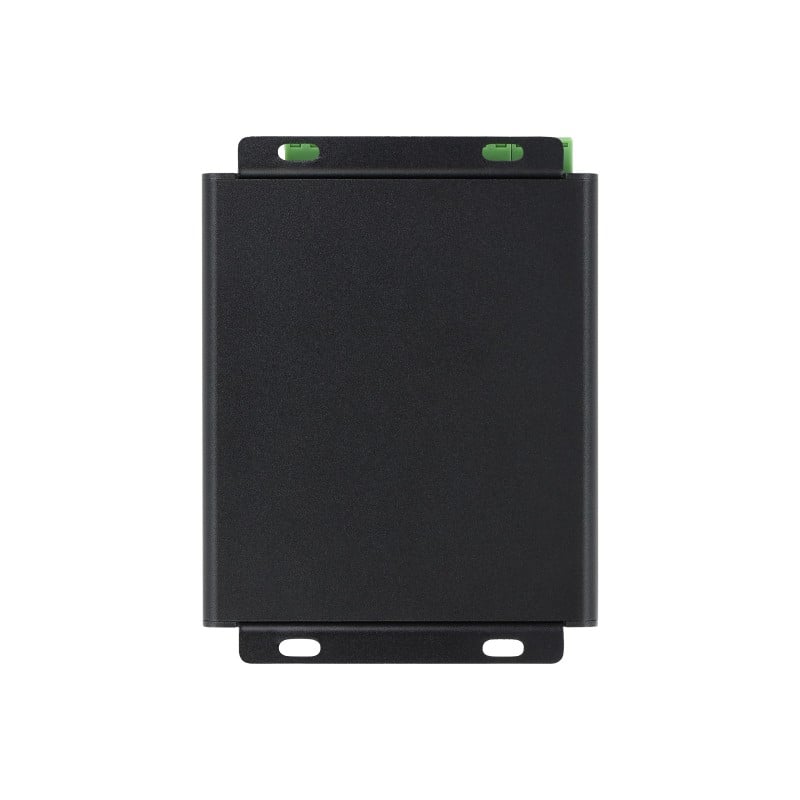

4. Wall Mount Holes On Two Sides, Handy For Mounting
5. Suitable For Raspberry Pi Applications Requiring Multi-Channel RS485 Communication
6. Real-time clock with battery socket and ability to wake Compute Module 4

Specifications:

1. CM4 socket: suitable for all variants of Compute Module 4
2. Networking: Gigabit Ethernet RJ45 connector, 100M Ethernet RJ45 connector
3. USB: USB 2.0 Type A
4. Connector: Isolated RS485 , Power screw terminal
5. Camera:  MIPI CSI-2 port  (15pin 1.0mm FPC connector)
6. Video: HDMI port ,supports 4K 30fps output
7. Storage: Micro-SD card socket for Compute Module 4 Lite (without eMMC) variants
8. Fan Header: allows speed adjustment 5V
9. Indicator: Power indicator , CM4 status indicator
10. Power input: 7-36V
11. Product weight: 280g
12. Dimension: 12 x 10 x 3 mm

Package Include:

1 X CM4-ETH-RS485-BASE-B

1 X Fan

1 X Screwdriver

1 X Screws pack
