Waveshare FT232 USB UART Board (Type C), USB To UART (TTL) Communication Module, USB-C Connector

This is the FT232 USB UART converter Board. This is a great little tool for embedded systems that require a serial connection to a computer. The board can simply attach to a USB-C bus and will appear as a standard COM port.

Pin connections of FT232 USB UART Board:

1. VCCIO ↔ 3.3V or 5V output (the module is powered from USB, the onboard jumper should be shorted to 3.3V or 5V)
2. GND ↔ GND
3. TXD ↔ MCU.RX (signal direction: MCU.RX << FT232 << PC.TX)
4. RXD ↔ MCU.TX (signal direction: MCU.TX >> FT232 >> PC.RX)
5. RTS ↔ MCU.CTS (signal direction: MCU.CTS << FT232 << PC.RTS)
6. CTS ↔ MCU.RTS (signal direction: MCU.RTS >> FT232 >> PC.CTS)

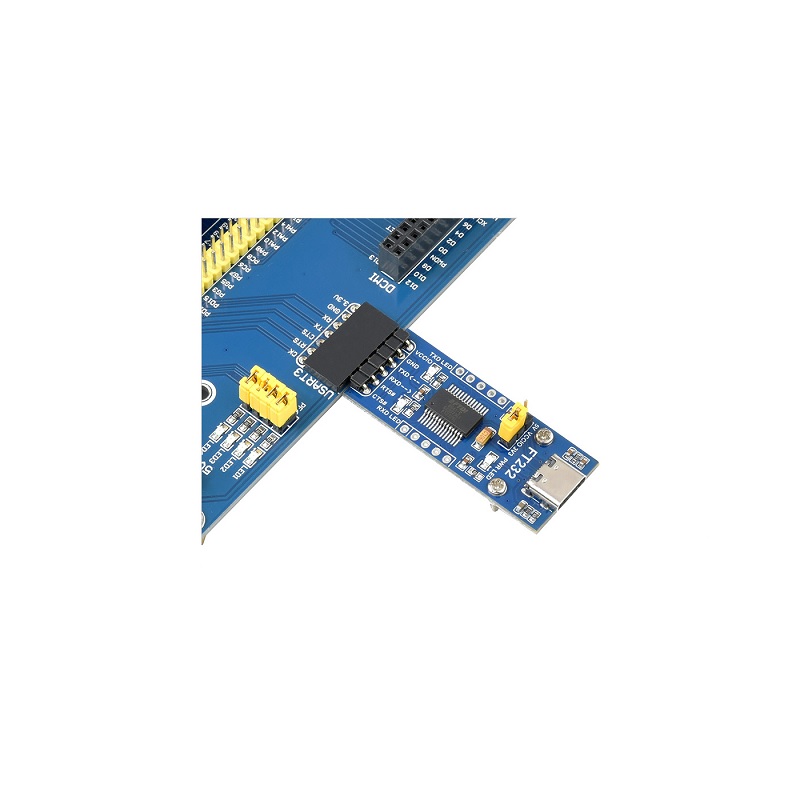

This breakout also allows you to connect the TX/RX pins of your favorite microcontroller or serial application to the RX/TX pins of the breakout, creating a simple serial cable replacement.

Features:

1. Original FT232RL onboard
2. Supports Mac, Linux, Android, WinCE, Windows 7/8/8.1/10…
3. 3 power mode: 5V output, 3.3V output, or powered by target board (3.3V-5V)
4. 3 LEDs: TXD LED, RXD LED, POWER LED
5. TXD, RDX, RTS#, CTS#: connected to the onboard soldered pin headers

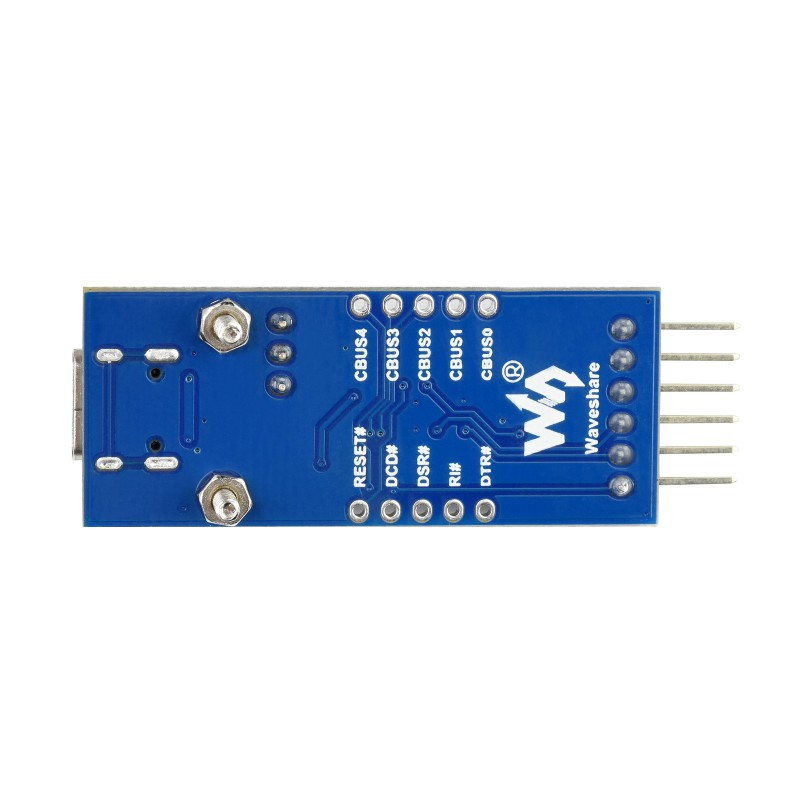

6. The other Pins: accessible on the drill holes (separate pin headers are also provided for easily connecting to the user system, the pitch is compatible with breadboards)

Package Includes:

1 x FT232 USB UART Board (Type C)

1 x 6-pin custom connector jumper wire

2 x 5-pin male pinheader & 5-pin female pinheader
