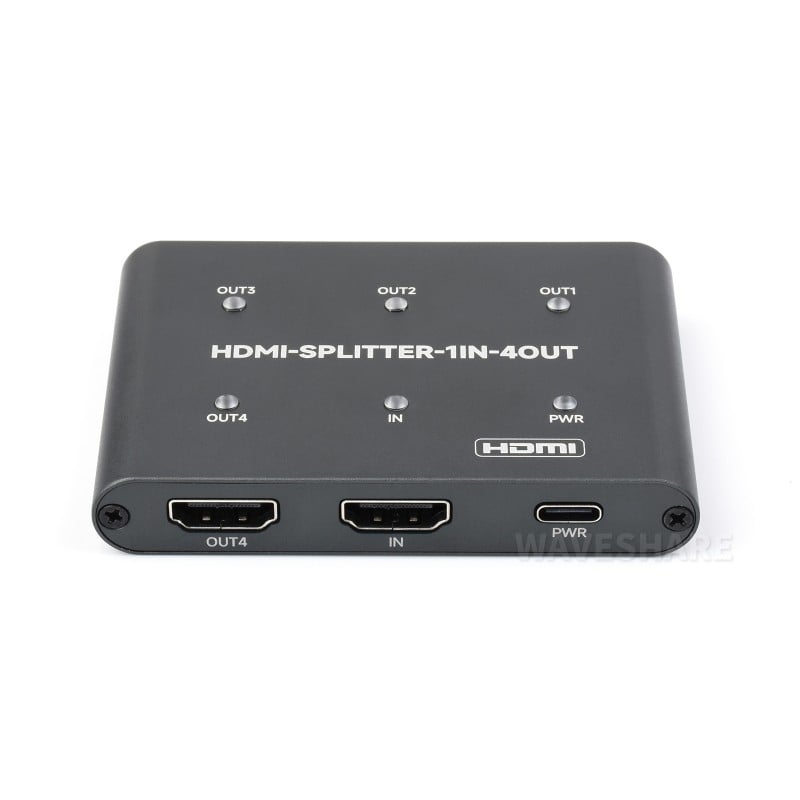

Waveshare HDMI 4k Splitter, 1 In 4 Out, Share One HDMI source

HDMI-SPLITTER-1IN-4OUT, an HDMI splitter, allows multi-display devices to share one HDMI source. Support the HDMI input signal with 4K x 2K@30Hz and 4K/2K (YCbCr420)@60Hz resolution, and the equalizer at the HDMI input end and the adjustable drive capability at the output end can adapt to wires of different lengths and qualities, making the high-speed TMDS signal always have the best performance

Features:

2. 4-ch HDMI output
3. Compatible with HDMI1.4B and DVI 1.0
4. Data rates up to
5. Built-in input equalizer can automatically adjust the input signal, for getting higher-quality TMDS input
6. Built-in output drive regulator, can automatically adjust the output signal amplitude, for getting higher quality TMDS output

Specifications:

1. Data rates: 3 Gbps
2. HDMI Ports: 1 In 4 Out
3. Compatible: HDMI1.4B and DVI 1.0
4. Supports: 4K/2K@30Hz and 4K/2K(YCbCr420)@60Hz resolution
5. Supports: 10/12/16 BIT color depth

Package Includes:

1 x Waveshare HDMI 4k Splitter, 1 In 4 Out, Share One HDMI source
