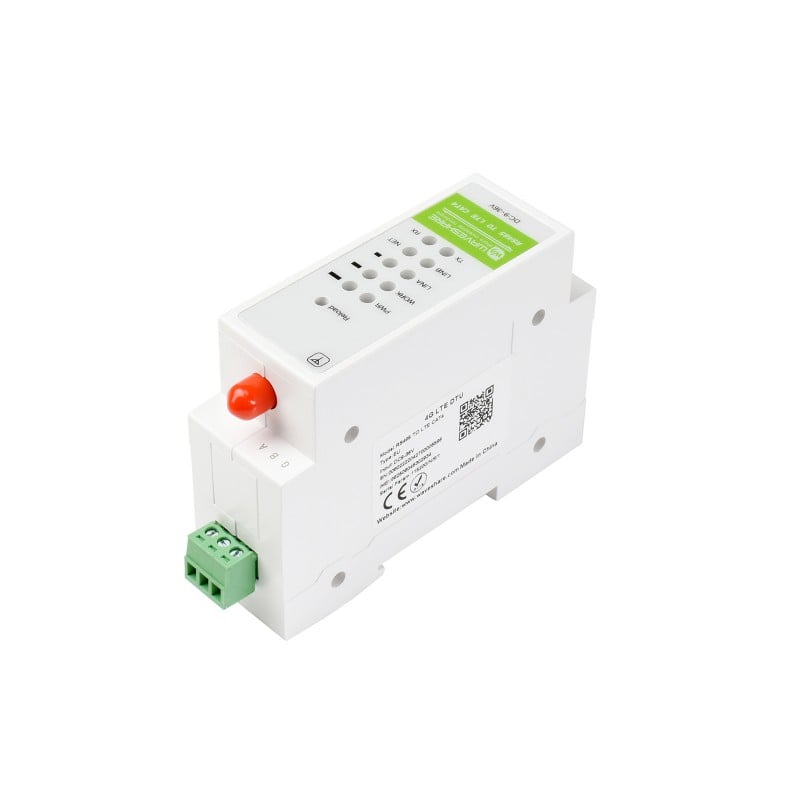

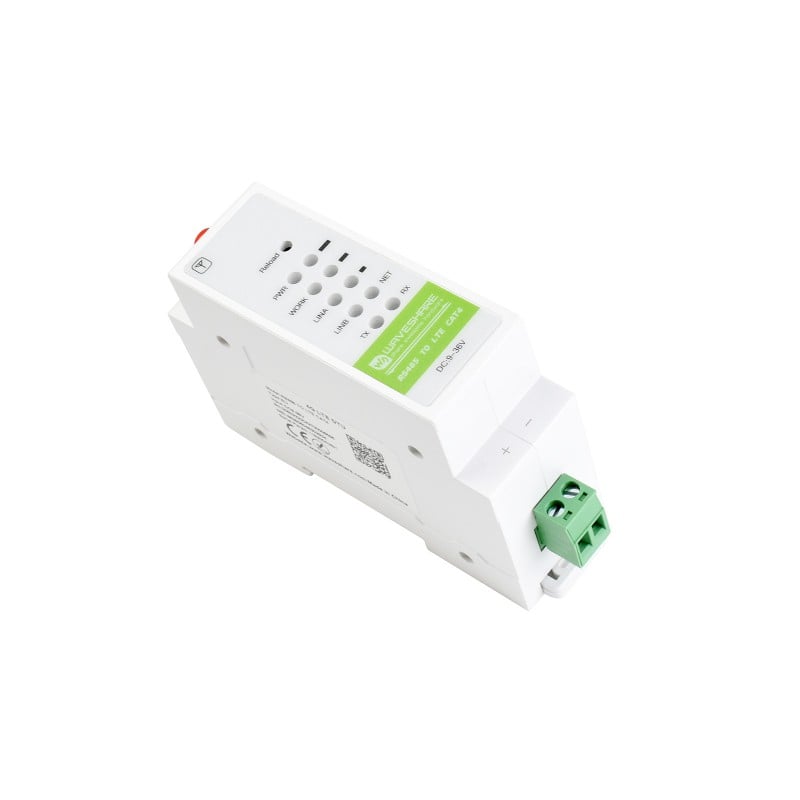

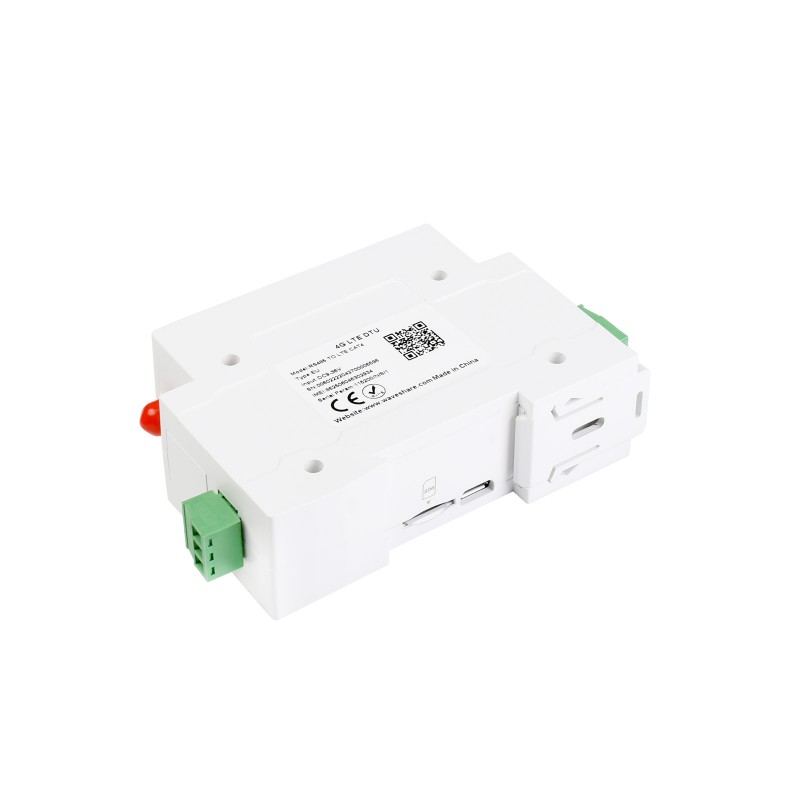

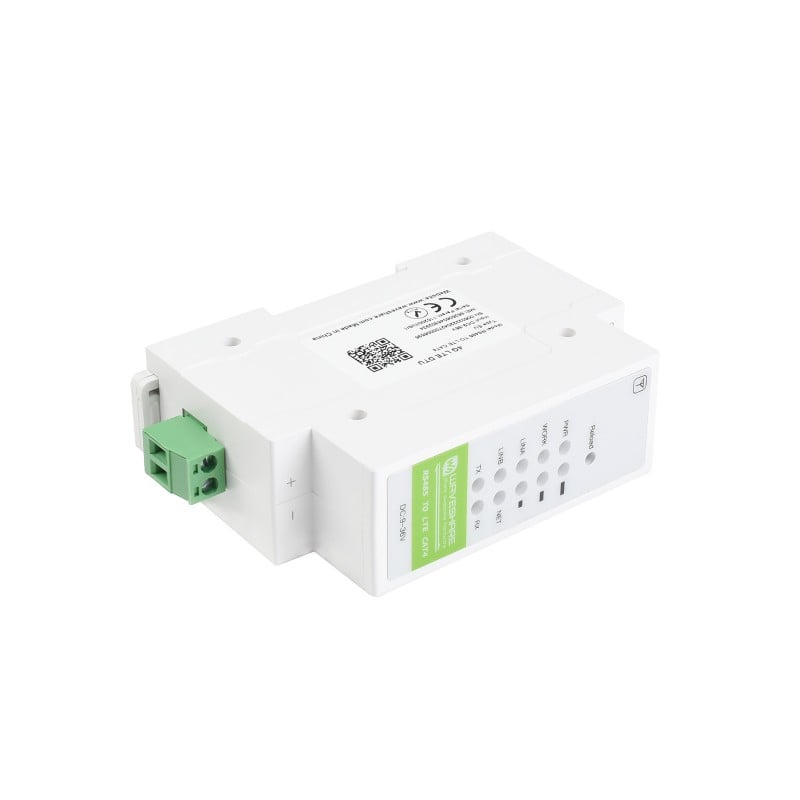

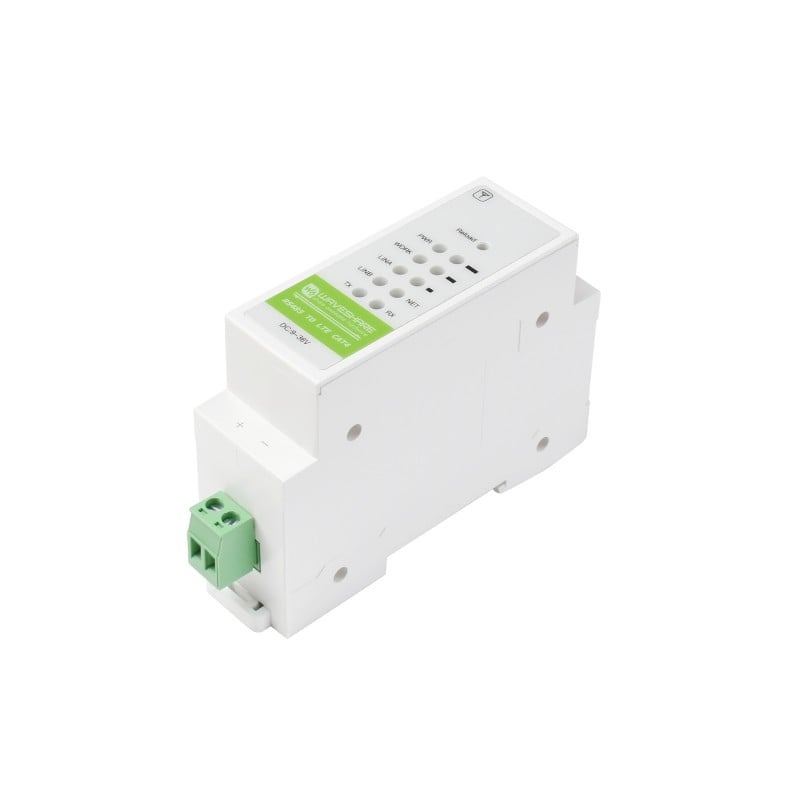

Waveshare Industrial 4G DTU, RS485 TO LTE CAT4, DIN Rail-Mount

RS485 TO LTE CAT4 is a 4GDTU for serial device and network server to transmit data to each other via operator network. Users can easily use it to achieve two-way data transparent transmission from serial port to network by setting up AT commands. RS485 TO LTE CAT4 also supports cloud, providing users with software and hardware integrated system. This chapter is a quick start guide for RS485 TO LTE CAT4. It is recommended that new users read this chapter carefully and follow the instructions to have a systematic understanding of the equipment. Users familiar with such products can skip this chapter. Refer to subsequent chapters for specific details and instructions.

RS485 TO LTE CAT4 adopts DC 12V power supply, supports 4G, 3G and 2G network access at the
same time. The software has complete functions and covers most of the common application
scenarios. Users can realize the transparent data transmission from the serial port to the network
through simple settings. And it supports protocol transparent transmission mode, customer registration package, heartbeat package function, supports 2-way Socket connection, supports TCPServer, and
supports cloud access. It has the characteristics of high speed and low delay, and supports FTP
upgrade protocol and protocol

RS485 TO LTE CAT4

Multi Working Modes

Multi Configuration Ways
Support configuration via host computer, webpage, and serial port

Hardware Protection
Level 4 ESD protection, Level 3 surge protection, Level3 EFT protection

Dimensions

Features:

The RS485 TO LTE CAT4 (EU) is a DIN Rail mounted RS485 cellular modem with European bands, which can realize the data transmission between RS485 and 4G Network. Reliable Serial to 4G Cellular Communication. With RS485 interfaces, full network coverage, wide temperature and wide voltage, multi center transmission. Provides wireless data communications between field serial devices and the central control system to enable remote control of industrial field sites. It is ideal for M2M and IoT applications including distribution automation, smart metering, water & wastewater, heating, street light monitoring and etc.

Packages Includes:

1 x Waveshare Industrial 4G DTU, RS485 TO LTE CAT4, DIN Rail-Mount for India, Southeast Asia
