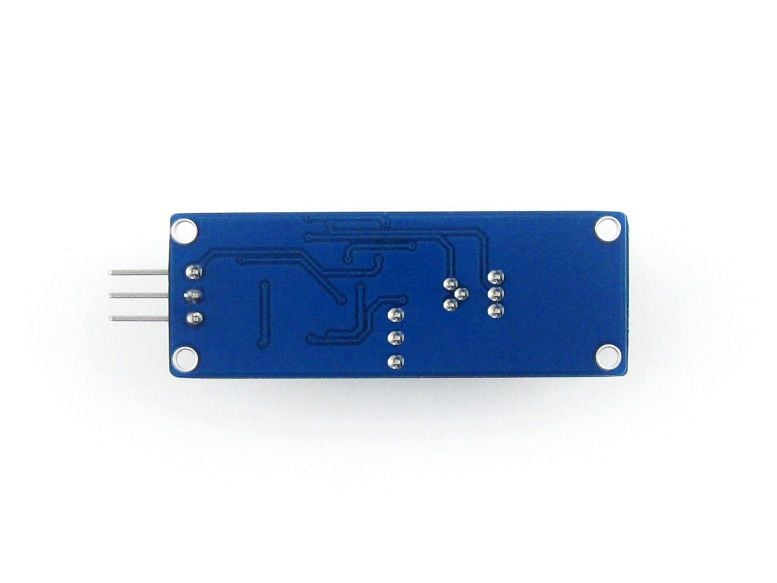

Waveshare Laser Sensor

Diffuse Reflection Laser Sensor Module Laser Ranging Module Obstacle Detection. Signal output indicator, Features boost circuit.Obstacle detection,Pipeline counter,Smart robot,Obstacle-avoiding car.

A laser sensor contains a transmitter and a receiver. In the transmitter, there is an oscillating tube can generate a shockwave in a frequency of 180KHz. After amplified by a transistor, the shockwave is applied to the laser tube for exciting. In the receiver, there is a receiving tube, matching to the oscillating tube, can receive the reflected light. Since the laser sensor adopts modulation processing technology, the receiving tube can only receive the reflected light in a same frequency, efficiently preventing from the visible light.

Application:

1. Obstacle detection
2. Pipeline counter
3. Smart robot
4. Obstacle-avoiding car

Features:

1. Boost circuit
2. Signal output indicator

Specification:

1. Effective distance: 0.8m(typ), 1.5m(max)
2. Power: 2.5V ~ 5.0V
3. Dimension: 47.7mm * 17.9mm
4. Mounting holes size: 2.0mm

Package Includes:

1 x Laser Sensor
1 x 3-pin custom connector jumper wire
