Waveshare Motor Control Board
Buy Waveshare Motor Control Board online, Order today to get instant delivery in all over india.
Out of Stock
You're on the list! We'll email you when this product is back in stock.
Enter your email to be notified when this product is available again.

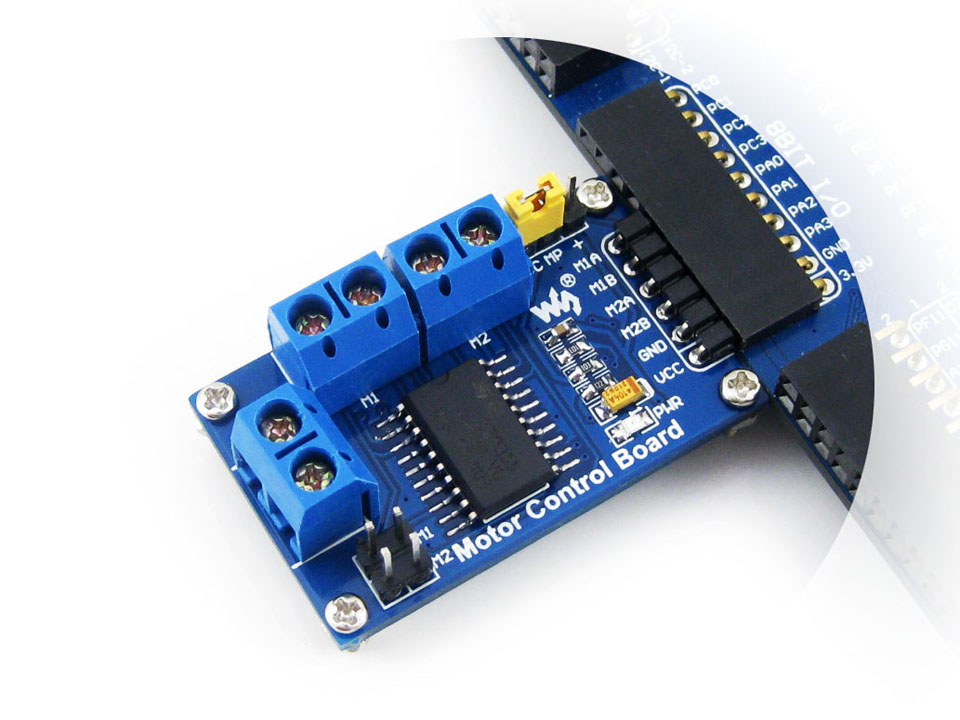

This is a Waveshare Motor Control Board. The Control Board consists of onboard dual H-bridge driver L293D. It’s easy to use Arduino or another development platform to drive the motor by this diver board. The motor driver drives 2 DC motors or 1 stepping motor at one time.
How to Use:
- M1A/M1B: connects to MCU digital IO, motor1 rotation controlling
- M2A/M2B: connects to MCU digital IO, motor2 rotation controlling
- GND: ground
- VCC: 5V power supply
| M1A/M2A | M1B/M2B | M1/M2 |
| 1 | 0 | Counterclockwise/Clockwise |
| 0 | 1 | Clockwise/Counterclockwise |
| 1 | 1 | Stop |
| 0 | 0 | Stop |
Features:
- Onboard dual H-bridge driver L293D
- Drives 2 DC motors or 1 stepping motor at one time
- 600mA output current (peak 1.2A) per single bridge
- ESD protection
Package includes:
1 x Waveshare Motor Control Board
