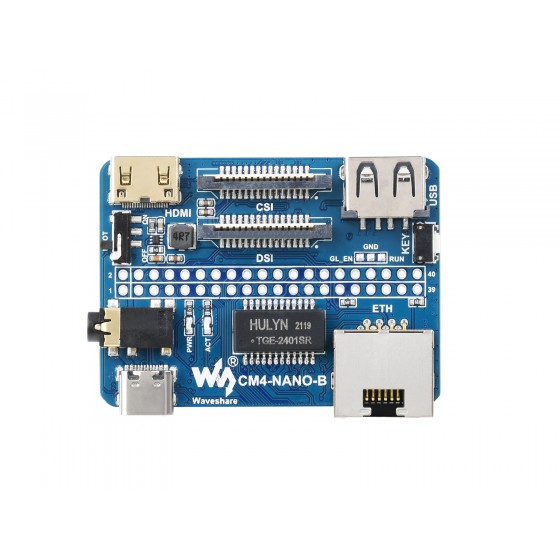

Waveshare Nano Base Board (B) for Raspberry Pi Compute Module 4, Same Size as the CM4
🔍 Zoom

Waveshare Nano Base Board (B) for Raspberry Pi Compute Module 4, Same Size as the CM4

SKU: RZ24314436 Brand: Waveshare Category: General
₹ 1,953.85
Out of Stock

Buy Waveshare Nano Base Board (B) for Raspberry Pi Compute Module 4, Same Size as the CM4 online, Order today to get instant delivery in all over india.

Bulk Discount Pricing
Quantity Discount Price / Unit
5 – 10 2% ₹ 1,914.77
11 – 30 3% ₹ 1,895.23
31 – 50 4% ₹ 1,875.70
51 – 100 5% ₹ 1,856.16

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details
Brand Waveshare
Category General
Subcategory General
SKU RZ24314436

The Differences. Although the Raspberry Pi Compute Module 4 has the same computing power as the Raspberry Pi 4, one can think of the Raspberry Pi Compute Module as a stripped-down version of the Raspberry Pi 4 with no ports. So, a carrier board is necessary to use the Compute Module The Compute Module 4 IO Board is a companion board for Raspberry Pi Compute Module 4 (supplied separately). It is designed for use both as a development system for Compute Module 4 and as an embedded board integrated into end products


Features:

  1. Micro SD card slot
  2. CSI interface
  3. USB2.0 interface
  4. Easy to use
  5. Color: green
  6. Raspberry Pi Compute Module 4
  7. 40PIN GPIO interface
  8. PWR indicator
  9. ACT indicator
  10. AMS1117-3.3
  11. BOOT switch

Specification:

  1. CM4 Socket: suitable for all variants of Compute Module 4
  2. Networking: Gigabit Ethernet RJ45 connector
  3. Connector: Raspberry Pi 40PIN GPIO header × 1
  4. USB: Raspberry Pi 40PIN GPIO header × 1
  5. Display: MIPI DSI port × 1 (15pin 1.0mm FPC connector)
  6. Camera: MIPI DSI port × 1 (15pin 1.0mm FPC connector)
  7. Video: Mini HDMI port × 1, supports 4K 30fps output
  8. Audio: 3.5mm jack
  9. Storage: Micro SD card socket for Compute Module 4 Lite (without eMMC) variants
  10. Power Input: 5V

Packages Includes:

1 x Waveshare Nano Base Board (B) for Raspberry Pi Compute Module 4, Same Size as the CM4

welcome

welcome

You May Also Like

View all →
Single Channel remote control + RF superheterodyne receiver module (3.3V~5V) 433MHZ

Buy Single Channel remote control + RF superheterodyne receiver module (3.3V~5V) 433MHZ online, Order today to get instant delivery in all over india.

Notify Me
74HC27D,653 – Triple 3-Input NOR Gate Surface Mount SO14 – Nexperia

Buy 74HC27D,653 – Triple 3-Input NOR Gate Surface Mount SO14 – Nexperia online, Order today to get instant delivery in all over india.

Notify Me
ESP32-S0WD Single-core 32-bit MCU 2.4GHz Wi-Fi BT/BLE SoC 48-Pin QFN

Buy ESP32-S0WD Single-core 32-bit MCU 2.4GHz Wi-Fi BT/BLE SoC 48-Pin QFN online, Order today to get instant delivery in all over india.

Notify Me

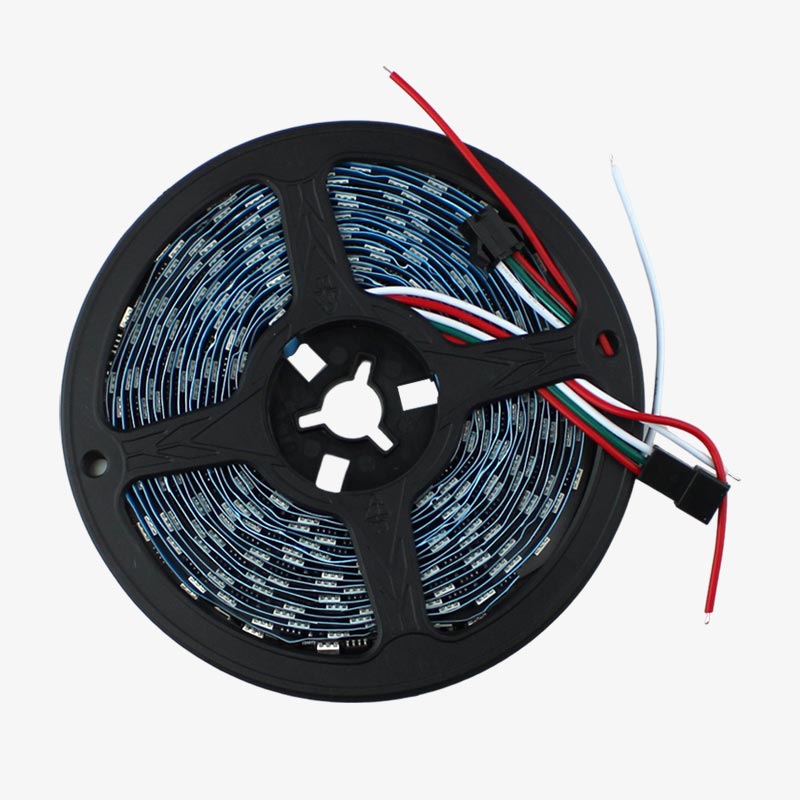

WS2812B Neopixel LED Strip 60LED/MTR - 5V IP20 Addressable LED Strip (5 Meter Pack)
