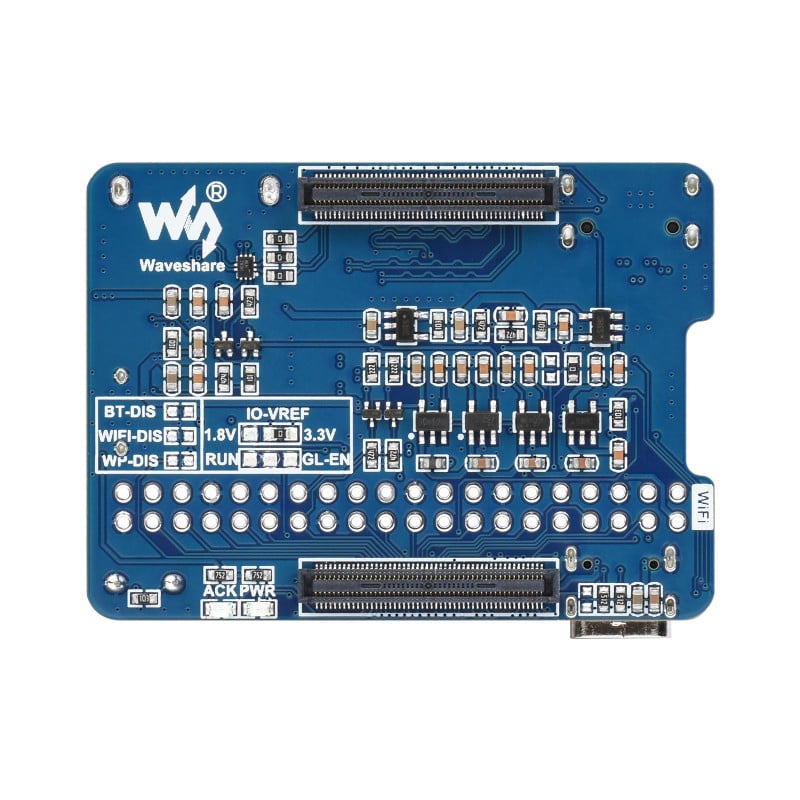

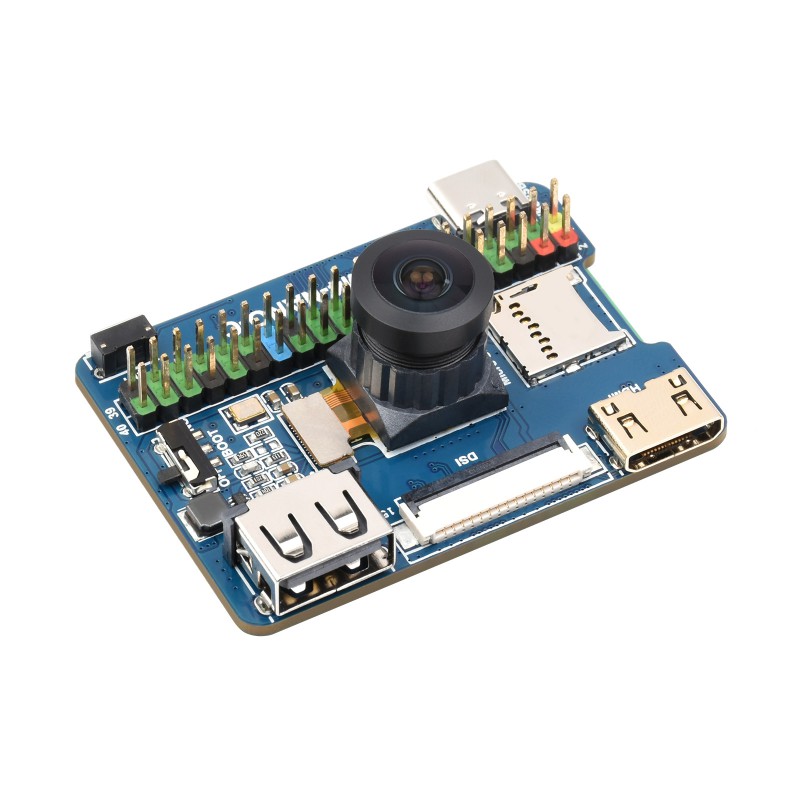

Waveshare Nano Base Board (C) for Raspberry Pi Compute Module 4, Same Size as the CM4, Onboard 8MP Camera

CM4-NANO-C (Raspberry Pi CM4 Ultra Mini Expansion Board Type B) is a baseboard that can be used with Raspberry Pi Compute Module 4. Although it is tiny, it can bring out the interface of Raspberry Pi Compute Module 4 with an onboard camera.

Features:

1. Multiple Interfaces, Onboard 8MP Camera
2. Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products
3. ON: Switch USB to Type C interface, will enter download mode when powered on (configured as a large-capacity disk through RPI boot)
4. 5V power supply, or used for eMMC burning

Specifications:

1. CM4 Socket: suitable for all variants of Compute Module 4
2. Connector: Raspberry Pi 40PIN GPIO header × 1
3. USB: USB 2.0 Type-A port × 1
4. Display MIPI DSI: port × 1 (15pin 1.0mm FPC connector)
5. Camera: IMX219-D160 (8MP, 160°FOV)
6. Video: Mini HDMI port × 1, supports 4K 30fps output
7. Storage: TF card socket for Compute Module 4 Lite (without eMMC) variants
8. Power Input: 5V

Package Includes:

1 x Waveshare Nano Base Board (C) for Raspberry Pi Compute Module 4, Same Size as the CM4, Onboard 8MP Camera
