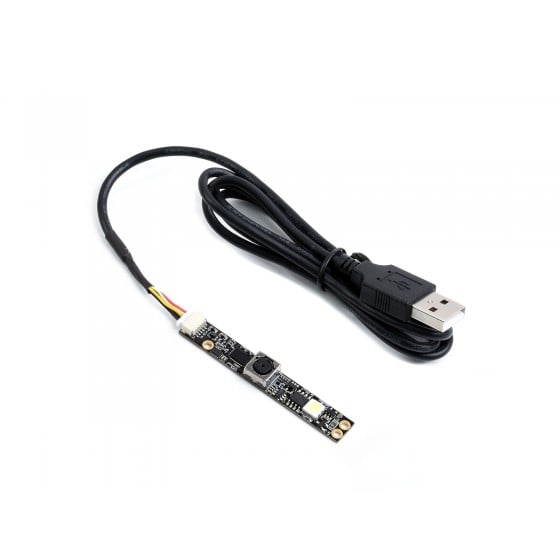

Waveshare OV5640 5MP USB Camera 1080P Video Recording Available In AF/FF
🔍 Zoom

Waveshare OV5640 5MP USB Camera 1080P Video Recording Available In AF/FF

SKU: RZ24313947 Brand: Waveshare Category: General
₹ 3,172.85
Out of Stock

Buy Waveshare OV5640 5MP USB Camera 1080P Video Recording Available In AF/FF online, Order today to get instant delivery in all over india.

Bulk Discount Pricing
Quantity Discount Price / Unit
5 – 10 2% ₹ 3,109.39
11 – 30 3% ₹ 3,077.66
31 – 50 4% ₹ 3,045.94
51 – 100 5% ₹ 3,014.21

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details
Brand Waveshare
Category General
Subcategory General
SKU RZ24313947

5MegaPixel Auto Focus CMOS camera module with JPEG output. The camera module is based on OmniVision OV5640 image sensor and can be used with Any shields and other platforms like Freescale i.MX6 develops the board.

The OV5640 (color) image sensor is a low voltage, high-performance, 1/4-inch 5 megapixel CMOS image sensor that provides the full functionality of a single chip 5 megapixel (2592×1944) camera using OmniBSI™ technology in a small footprint package. It provides full-frame, sub-sampled, windowed, or arbitrarily scaled 8-bit/10-bit images in various formats via the control of the Serial Camera Control Bus (SCCB) interface.

The OV5640 has an image array capable of operating at up to 15 frames per second (fps) in 5-megapixel resolution with complete user control over image quality, formatting, and output data transfer. All required image processing functions, including exposure control, gamma, white balance, color saturation, hue control, defective pixel canceling, noise canceling, etc., are programmable through the SCCB interface or embedded microcontroller.

Applications:

  1. Cellular phones
  2. PDAs
  3. Toys
  4. Other battery-powered products
  5. ARM-based platforms



NOTE:

Choose OV5640 5MP USB Camera (B) for Auto-focus, and Select OV5640 5MP USB Camera (C) for Fixed-focus, Except for the focus mechanism, the two cameras are exactly the same.


Features:

  1. Working voltage:5V ± 5%
  2. Working Temperature:0°C ~ 50°C
  3. Support OS Windows, Linux, Mac OS
  4. Working with Raspberry Pi
  5. Working with jetson nano developer kit
  6. Interface: USB2.0

Packages Includes:

1 x Waveshare OV5640 5MP USB Camera, 1080P Video Recording, Available In AF/FF
