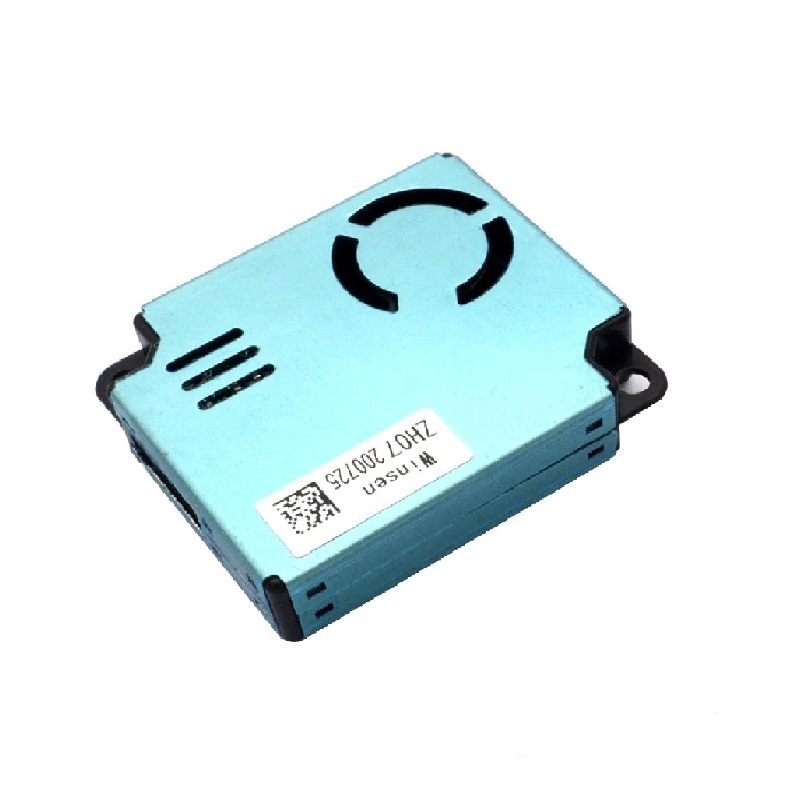

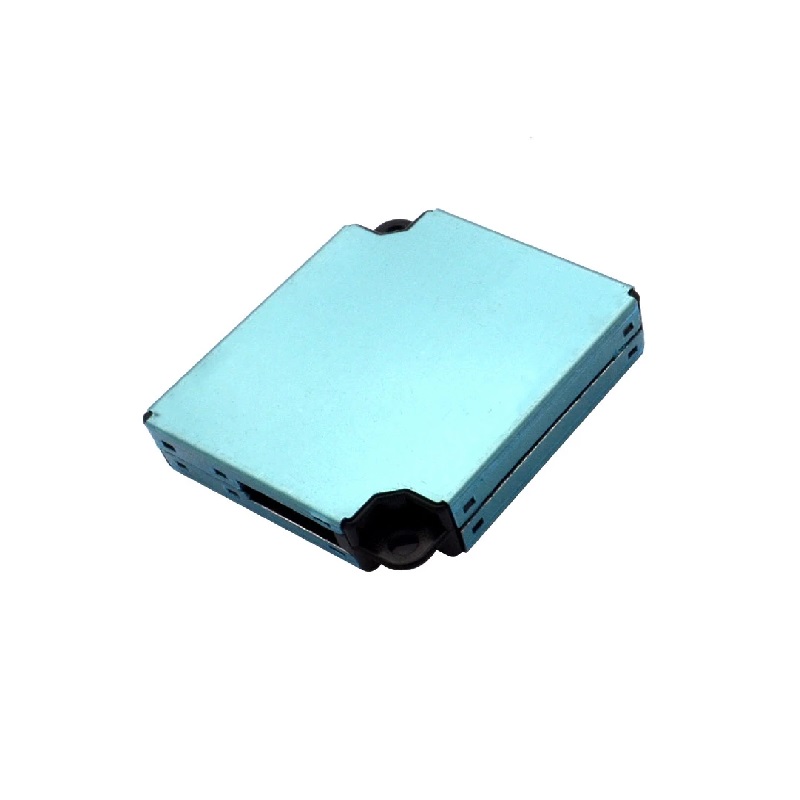

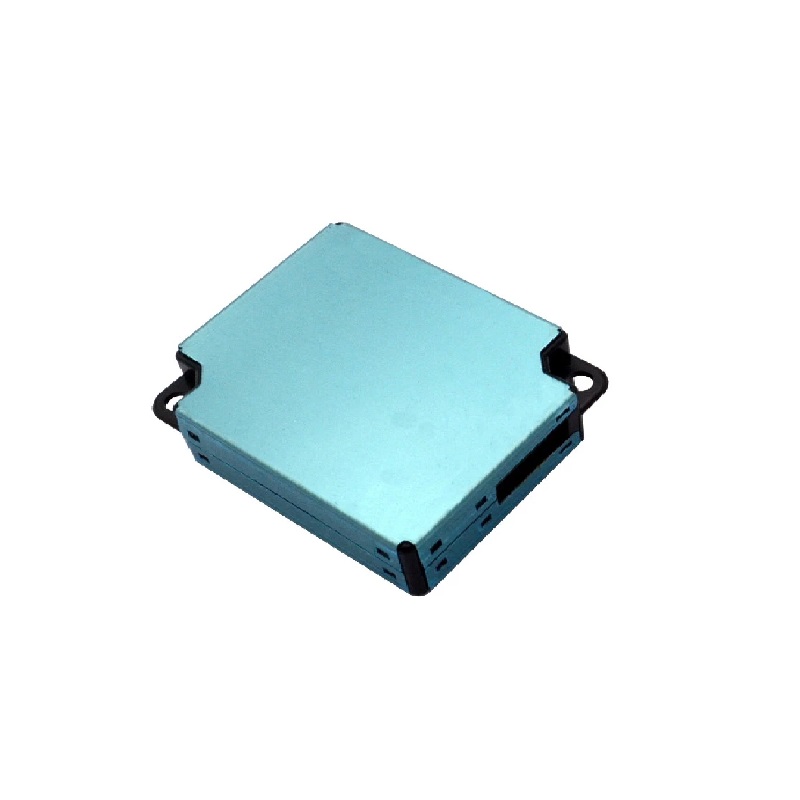

Winsen ZH07 Laser Dust Sensor Module

Laser Dust sensor module ZH07 is a common type, small size sensor, using laser scattering principle to detect the dust particles in air, with good consistency and stability. It is easy to use, with UART & PWM output.

ZH07 is a universal and miniaturization laser dust sensor module, which can detect dust particles existing in the air by using Mie scattering principle. Through professional algorithm and calibration detection process processing, the sensor has good consistency and stability. The sensor has both serial port output and PWM output capabilities, which is convenient to use, small in volume and easy to integrate and apply.

Applications:

1. Air purifiers
2. Ventilation systems
3. Portable instrument
4. Air quality monitoring equipment
5. Air conditioner
6. Smart home fields

Features:

1. Good consistency
2. Real time response
3. Accurate data
4. Low power consumption
5. Minus resolution of particle diameter 0.3 µm

Specifications:

1. Model: ZH07
2. Detectable particle diameter range: 0.3-10μm
3. Effective Range: 0-1000μg/m³
4. Detection Interval: 1s
5. Preheating Time: 30s
6. Working Voltage: 4.8V～5.5V(DC)
7. Working Current: ＜120mA
8. Dormancy Current: ＜20mA
9. Detection Range:0.3-10μm
10. Effective Range:0-1000μg/m³
11. Output: UART_TTL Output (3.3V level, default),PWM Output (3.3V level, default)
12. Response Time: T90＜30s
13. Working Humidity0～80％RH(No Condensation)
14. Working Temperature: －10～60℃
15. Storage Temperature:－30～70℃
16. Dimension: 48×40×12.5mm(L×W×H)
17. Weight: ＜30g
18. MTTF: Continuous > 10000H

packages Includes:

1 x Winsen ZH07 Laser Dust Sensor Module
