WIZnet Ethernet HAT

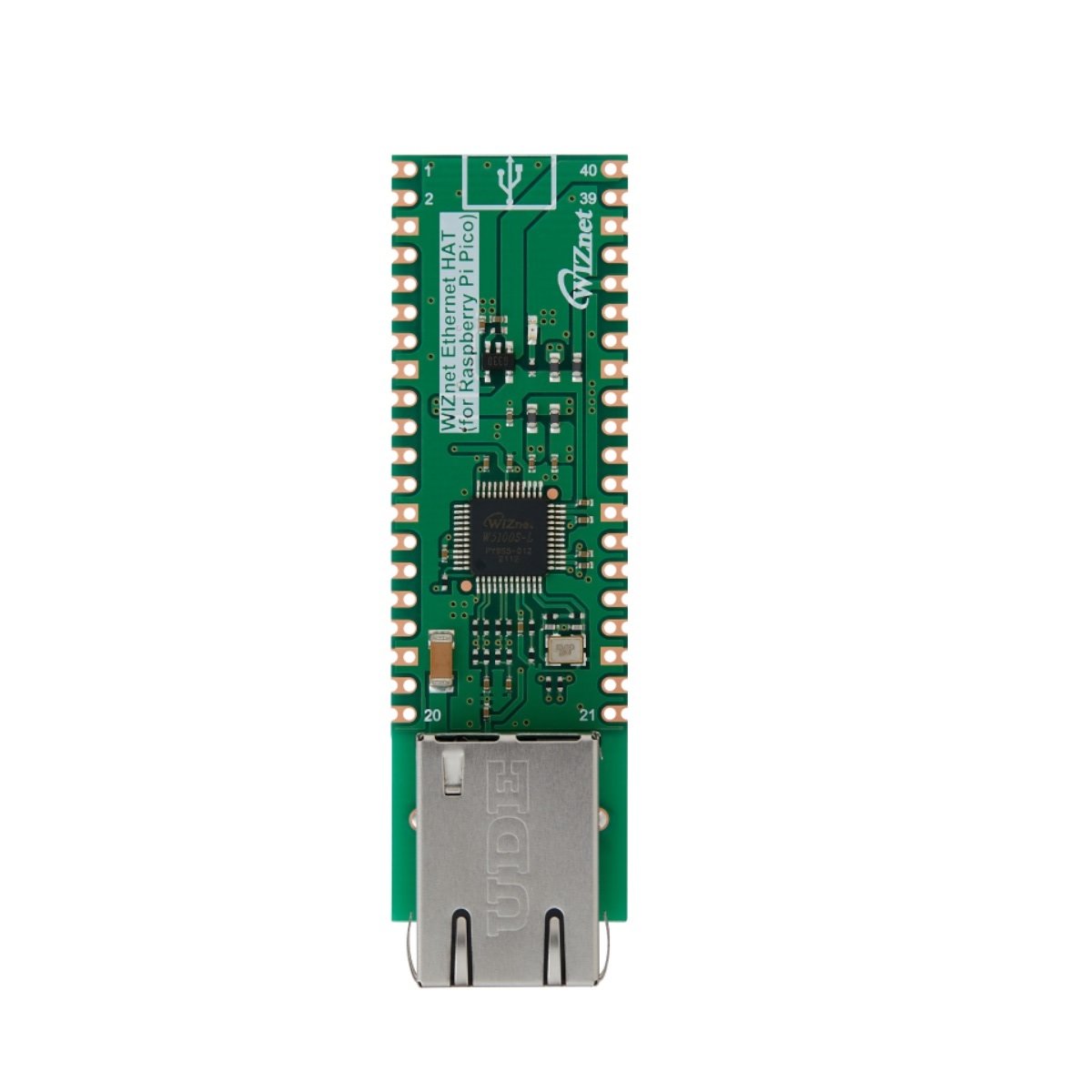

The WIZnet Ethernet HAT is a small, versatile expansion board designed to add Ethernet connectivity to single-board computers such as the Raspberry Pi. The HAT (which stands for “Hardware Attached on Top”) plugs directly into the Pi’s 40-pin GPIO header, and includes an Ethernet controller chip, RJ45 connector, and associated circuitry.

The WIZnet Ethernet HAT supports both 10/100Mbps Ethernet speeds and uses the popular W5500 chip, which provides a wide range of features such as TCP/IP protocol stack, network configuration, and data transfer. It also supports various network protocols such as TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPPoE.

Features:

1. Includes W5100S
2. Supports Hardwired Internet Protocols: TCP, UDP, WOL over UDP, ICMP, IGMPv1/v2, IPv4, ARP, PPPoE
3. Supports 4 Independent Hardware SOCKETs simultaneously
4. Internal 16 Kbytes Memory for TX/ RX Buffers
5. Built-in LDO (LM8805SF5-33V)
6. SPI Interface 5V I/O tolerance
7. 10 / 100 Ethernet PHY embedded
8. Supports Auto-Negotiation
9. Full / Half Duplex
10. Built-in RJ45 (RB1-125BAG1A)

Specification:

1. Support Protocols: TCP, UDP, WOL over UDP, ICMP, IGMPv1/v2, IPv4, ARP, PPPoE
2. Internal Memory: 16 Kbytes Memory for TX/ RX Buffers
3. Operation Voltage: 3.3V / 5V
4. Interface: SPI Interface 5V I/O tolerance
5. Supports Auto Negotiation: Full / Half Duplex 10 / 100 Based

Package Includes:

1 x WIZnet Ethernet HAT
