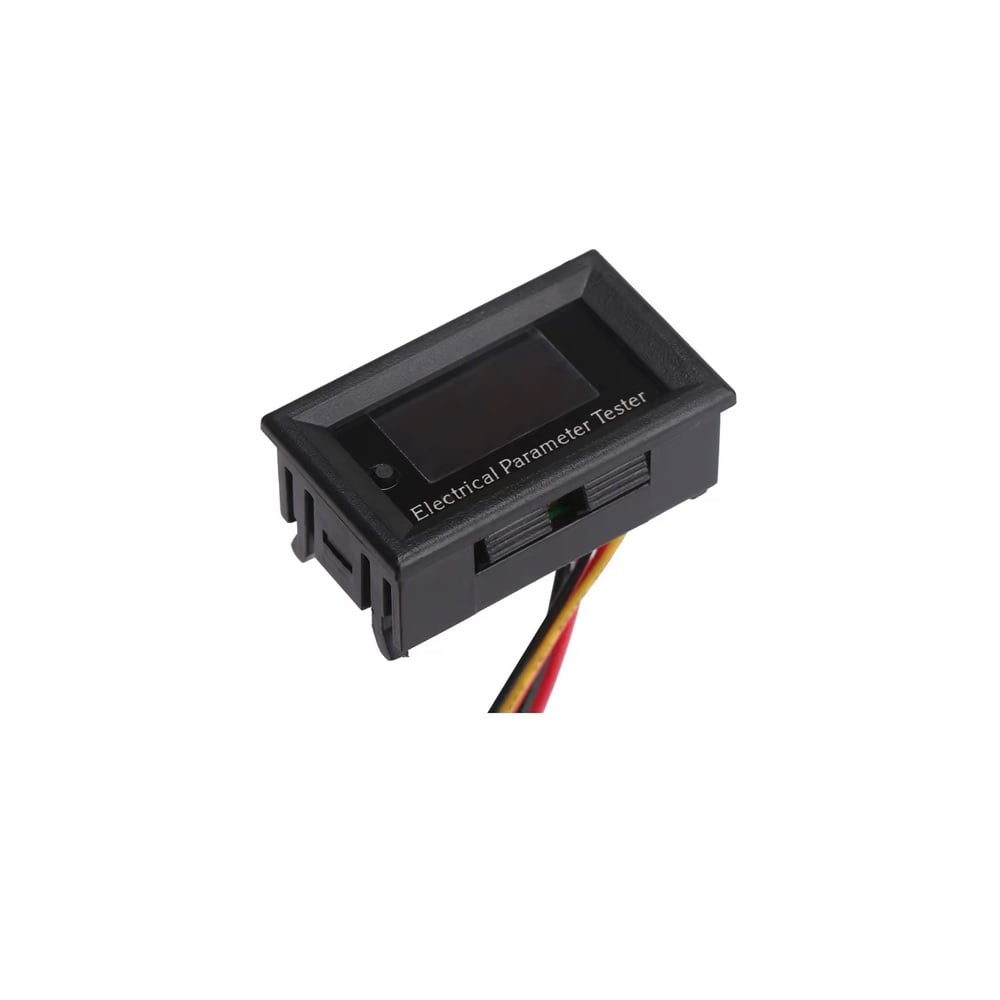

100V 20A OLED Digital Tester Amp Volt Power meter Time Capacity Energy Temp

The 100V 20A 7in1 OLED Digital Amp Volt Power Time Capacity Energy Temperature Tester can test voltage, current, run time, power, capacity, temperature and energy.
Measurement Range: Voltage DC 00.0-99.9V; Current DC 0.00-9.99A; Power 00.00-99.99W-999.9W; Energy 0-9999.9Wh; Capacity 00.00-99.999Ah; Time 0-99h59min; Temperature -15~60Degrees Celsius. It can use an isolated power supply, system, or DC converter to supply power, please ensure proper wiring in strict accordance with the wiring diagram.

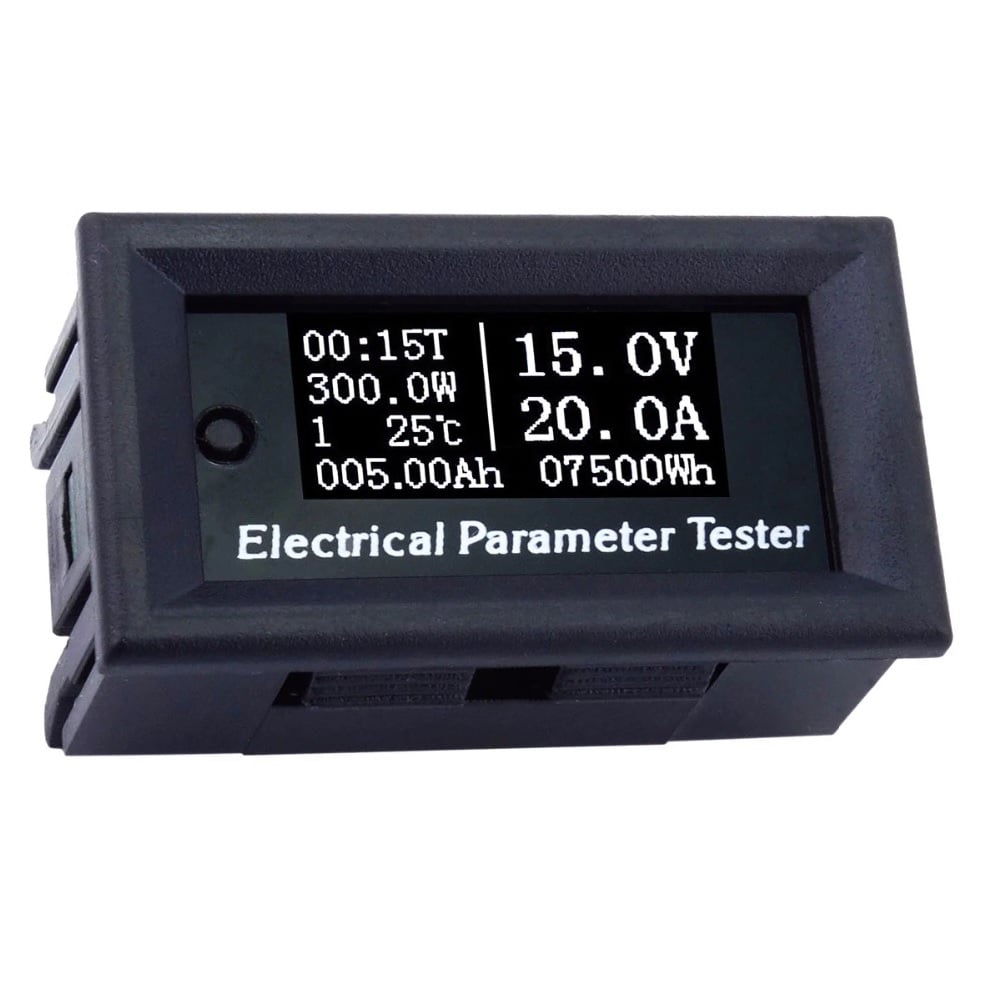

⑤Capacity display ⑥Voltage display ⑦Current display ⑧Energy display

Button Function: on the display interface, press the button to switch the data set; keep pressing the button to clear the accumulated data.

Features:

1. Compact design and solid made
2. Bright, clear display is very easy to read;
3. Very helpful for measuring electrical parameters.

Specifications:

1. Voltage measurement range: DC 00.0-99.9V
2. Current measurement range: DC 0.00-9.99A
3. Power measurement range: 00.00-99.99W-999.9W
4. Energy measurement range: 0-9999.9Wh
5. Voltage measurement accuracy: +/-(0.5% + 1 digit)
6. Current measurement accuracy: +/-(1 + 2 digits)
7. Capacity measurement range: 00.00-99.999Ah
8. Time measurement range: 0-99h59min
9. Temperature measurement range: -15~60Degrees Celsius
10. Weight: 19g

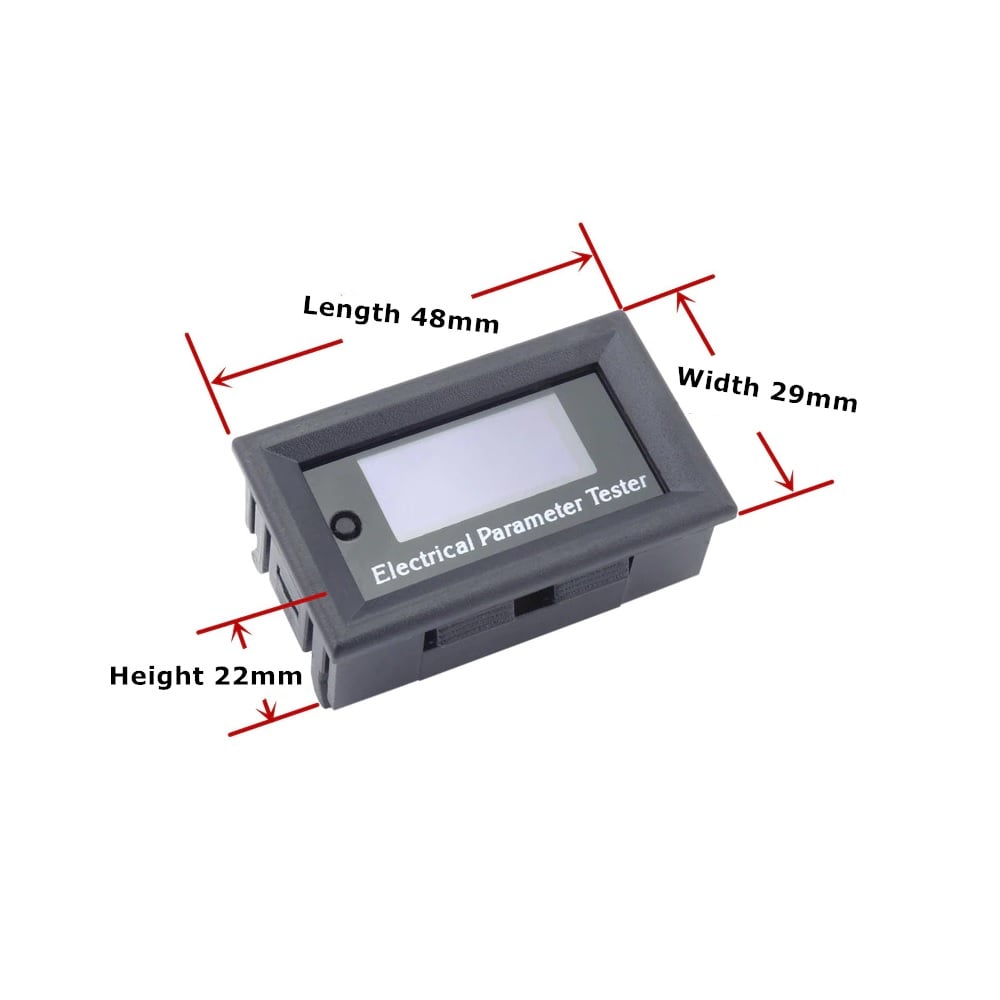

11. Size: 48mmX29mmX22mm

Package Includes:

1 x 100V 20A 7in1 OLED Digital Amp Volt Power Time Capacity Energy Temperature Tester
