12-84V Battery Power Display Meter Lithium Battery Lead-acid Battery Power Display GY-6GS Green 3 Strings Lithium Battery

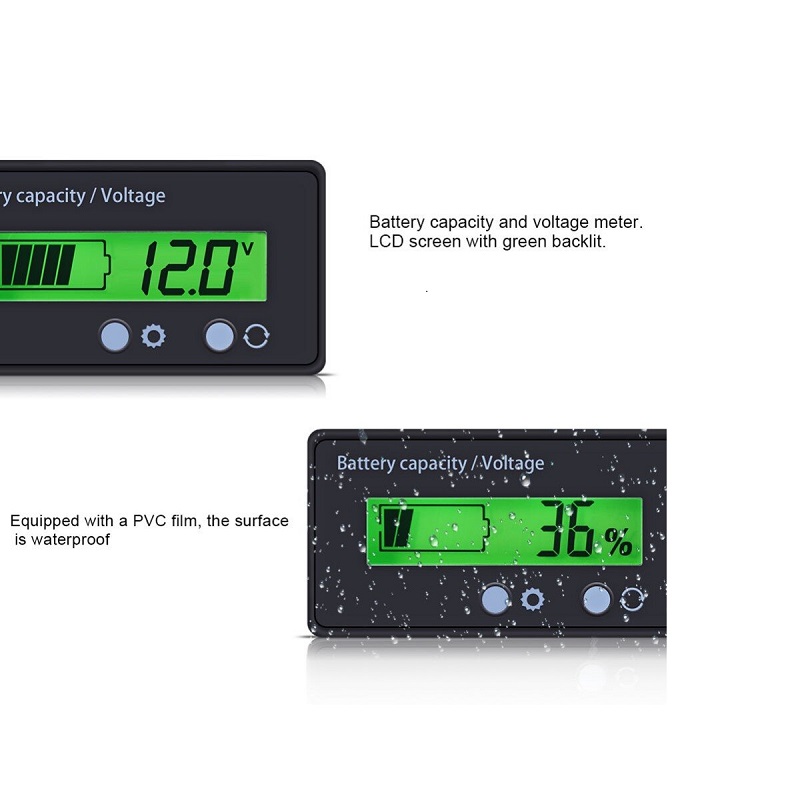

The Battery Capacity Voltage Meter can not only measure the battery voltage but also the capacity, show you with percentage. The battery monitor is designed with a high-quality LCD, LCD screen with green backlit offers a clear and bright display from every angle. Equipped with a PVC film, the surface is waterproof. Long service life button with comfortable hand feeling. Built with buckle, free of screw installation. Battery meter can be applied to portable mobile equipment, electron mobile, balance car, cleaning machine, measuring equipment, etc.

Setting Instruction:

1. Long press the Set key, power supply to the product, enter the setup interface
2. Press the Set key to select the battery specification (Lead-acid battery(P), Lithium battery (L), Fe battery(F))
3. Short press the Function key to select the number of battery strings (increasing for the set button, decreasing for function button)
4. Long press the Function key to set s mode.

Features:

1. Equipped with a switch, you can turn off the power, no power consumption after turning off.
2. Accurately display the battery power percentage, voltage, and intuitively grasp the battery usage status.
3. When the power value is lower than or equal to 20%, the backlight flashes an alarm.
4. Compatible with acid battery, lithium battery, iron lithium battery which can be set by yourself.
5. Double button design, easy to set up, can be set in just a few seconds.
6. Manually switch battery percentage/voltage/power off
7. Automatic recycling display battery capacity/voltage per 2 seconds (Settable)
8. 10s delay auto-off (Settable)
9. Double discharge curve selection (Settable)

Package Includes:

1 x Power Display Meter
