12V Bluetooth 5.0 MP3 Player WMA Decoder Board Module with Remote Control Power Amplifier Dual Channel 25W+25W

This feature-packed module combines advanced Bluetooth technology, versatile input options, and a dual-channel power amplifier to deliver high-quality audio in your car or DIY audio projects. Whether you're streaming music wirelessly, playing MP3/WMA files from a TF card or USB drive, or tuning in to FM radio, this module offers it all. Plus, the included wireless remote ensures convenient control, making it a perfect addition to your audio setup.

1. Bluetooth Hands-Free Calling: Stay connected while on the go with Bluetooth hands-free calling support, and conveniently control external touch keys.

2. Folder Selection: Easily select and play music from different categories on your card or USB drive, making it effortless to organize your music collection.

3. Automatic Source Switching: The module automatically switches between USB, TF, Bluetooth, and FM sources, with voice prompts available (English optional).

4. Wide Format Compatibility: Play MP3, WMA, and WAV format music, with support for various bitrates (MP3: 32-320kbps, WAV/WMA: 1411kbps or less).

5. Comprehensive Control: Control functions include switching between sources, skipping tracks, adjusting volume, EQ settings, play/pause, stop, mute, shutdown, and direct song selection.

6. Bluetooth Playback Control: Conveniently control Bluetooth playback functions, including skip, volume adjustment, play/pause, and mute.

7. Power and Memory Function: The module remembers the last played song and volume level, enabling a seamless listening experience even after powering off. It also supports breakpoint memory playback.

Specifications:

• Power supply: DC 9-15V
• VDD=14.4V; RL=4Ω; PO=27W*2    THD+N≤10%
• VDD=12V;    RL=3Ω; PO=23.5W*2 THD+N≤10%
• VDD=12V;    RL=4Ω; PO=20W*2    THD+N≤10%
• VDD=9V;      RL=4Ω; PO=15W*2    THD+N≤10%

(VDD= DC Supply Voltage; RL= Load Impedance PO= Power output per channel; THD+N=Total harmonic distortion + noise)

• Output power: >30-60W
• Rated input: 12V/4A
• Rated power: <60W
• Panel interface: USB, TF card, AUX

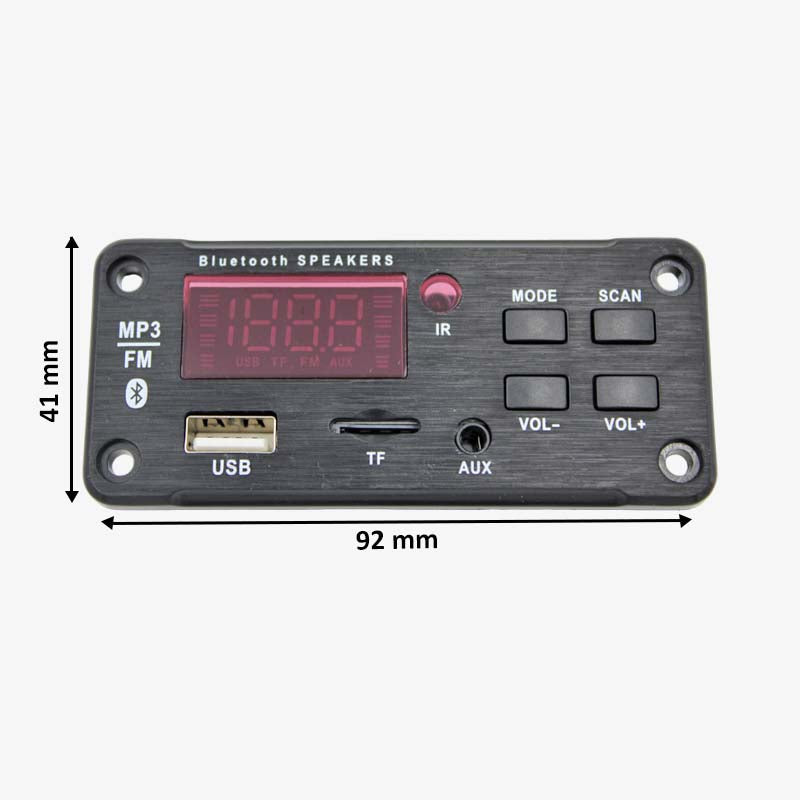

• Appearance Size (Dimension): 92*41*20mm

Features:

• USB: Connect USB flash drive (maximum support 32GB)
• LED Color Screen: Large digital display in red
• TF: Connect TF memory card (maximum support 32GB)
• AUX: Audio input interface
• VOL-: Short press selects the previous song; long press decreases the volume
• PLAY/PAUSE: Short press switches between pause and play; long press activates FM auto-station scanning
• VOL+: Short press selects the next song; long press increases the volume
• MODE: Switch between USB/TF/FM/LINE IN/BLUETOOTH modes

Upgrade your audio setup with this 12V Bluetooth 5.0 MP3 Player Module, complete with a powerful dual-channel power amplifier. Enjoy a diverse range of audio sources, wireless connectivity, and user-friendly remote control. Elevate your audio experience today by adding this versatile module to your setup.

Pinout :

Package Includes:

• 1x Bluetooth 5.0 12V MP3 WMA Decoder Board

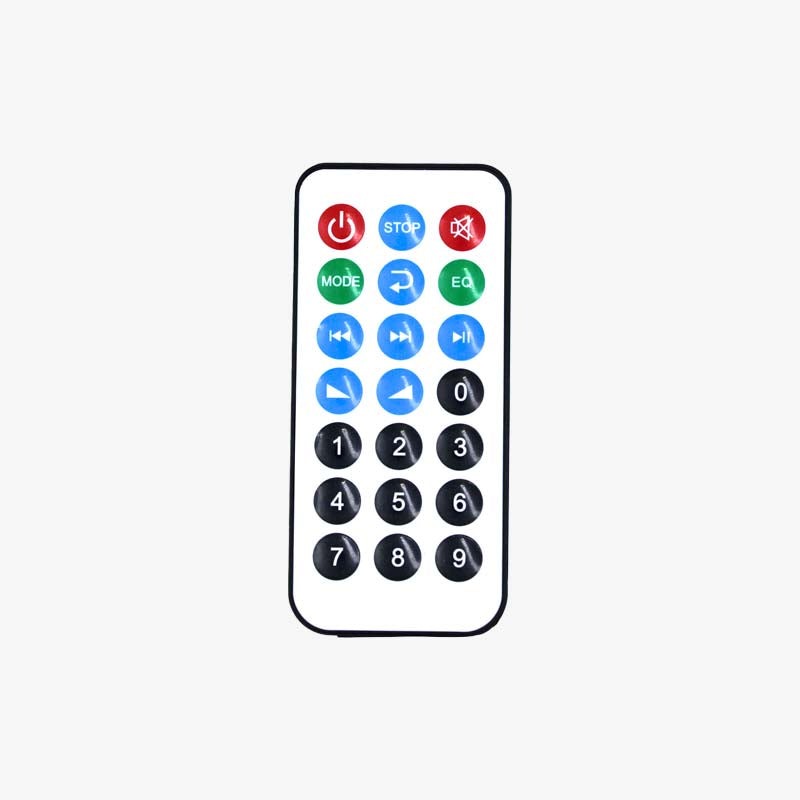

• 1x Remote Control
• 3 x Cable
