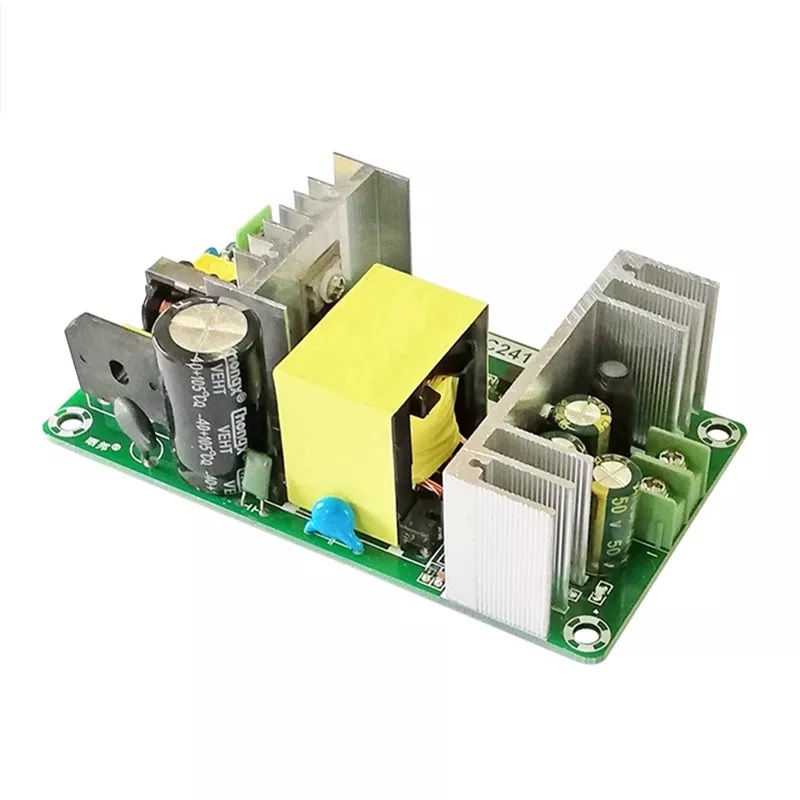

150W AC-DC AC-DC 100- 260V to 12V 13A Switching Power Board

This 150W AC-DC Buck Converter 100V-260V to 12V 13A Step Down Power Supply Module adopts a double-sided PCB design which guarantees more stable and reliable performance and becomes more suitable for the power supply of industrial control system.

This is an electronic power supply module that incorporates a switching regulator to convert electrical power efficiently. Like many other power supplies, it transfers power from AC100V~260V(50HZ/60HZ) source to DC 12V.

Switching regulators are used as replacements for linear regulators when higher efficiency, smaller size or lighter weight are required. It supports over-voltage protection, over-current protection, and short circuit protection. Designed with two heat sinks for better heat dissipation.

Features :

1. High efficiency and low ripple.
2. Maximum Output Current: 13A

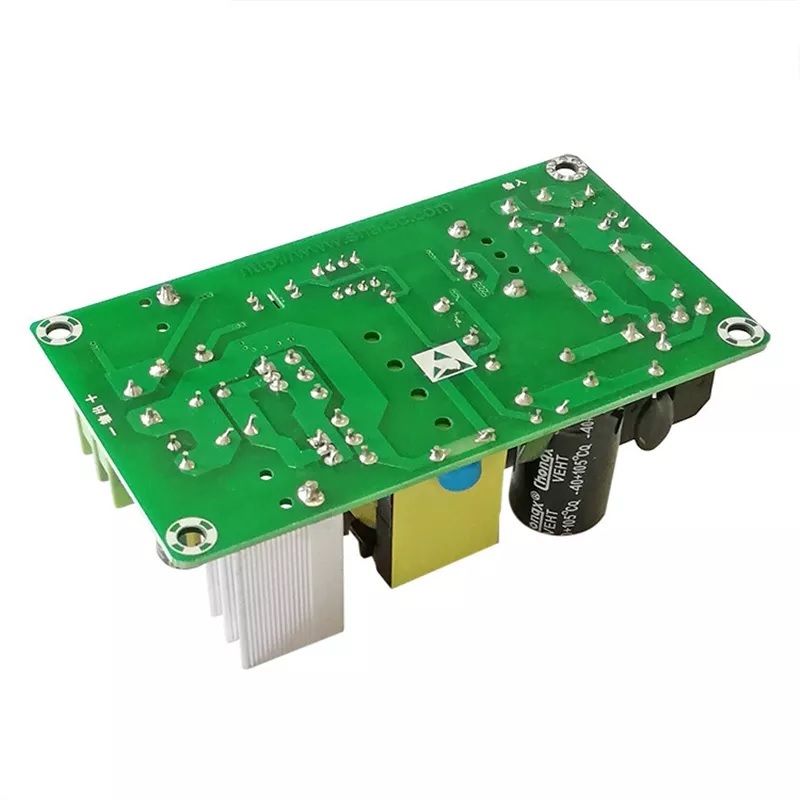

3. Dual-side plate design.
4. Easy to use handy Module.

Specifications:

1. Input AC Voltage(V): 100 to 260
2. Input Frequency(Hz): 50
3. Output Voltage(V): 12
4. Max. Output Current (A): 13
5. Overload Protection: Yes
6. Output Power(Watt): 150
7. Over Current Protection: Yes
8. Short Circuit Protection: Yes
9. Mounting Hole Pitch: 10.5 cm and 5.5 cm
10. Mounting Hole Diameter: 4mm

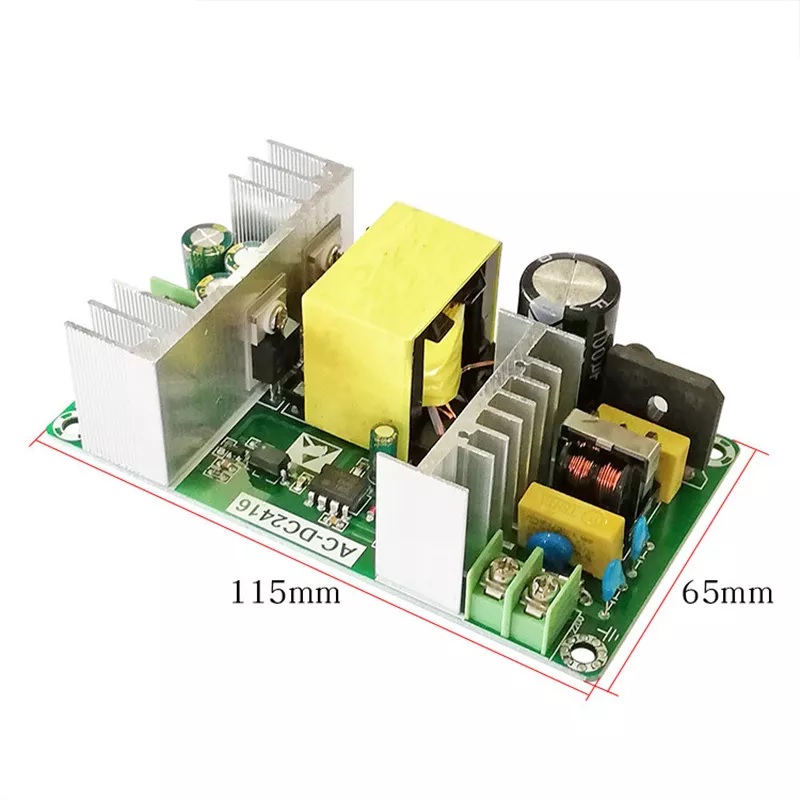

11. Length (mm): 115
12. Width (mm): 65
13. Height (mm): 36
14. Weight (gm): 200

Package Includes :

1 x 150W AC-DC 100- 260V to 12V 13A Switching Power Board
