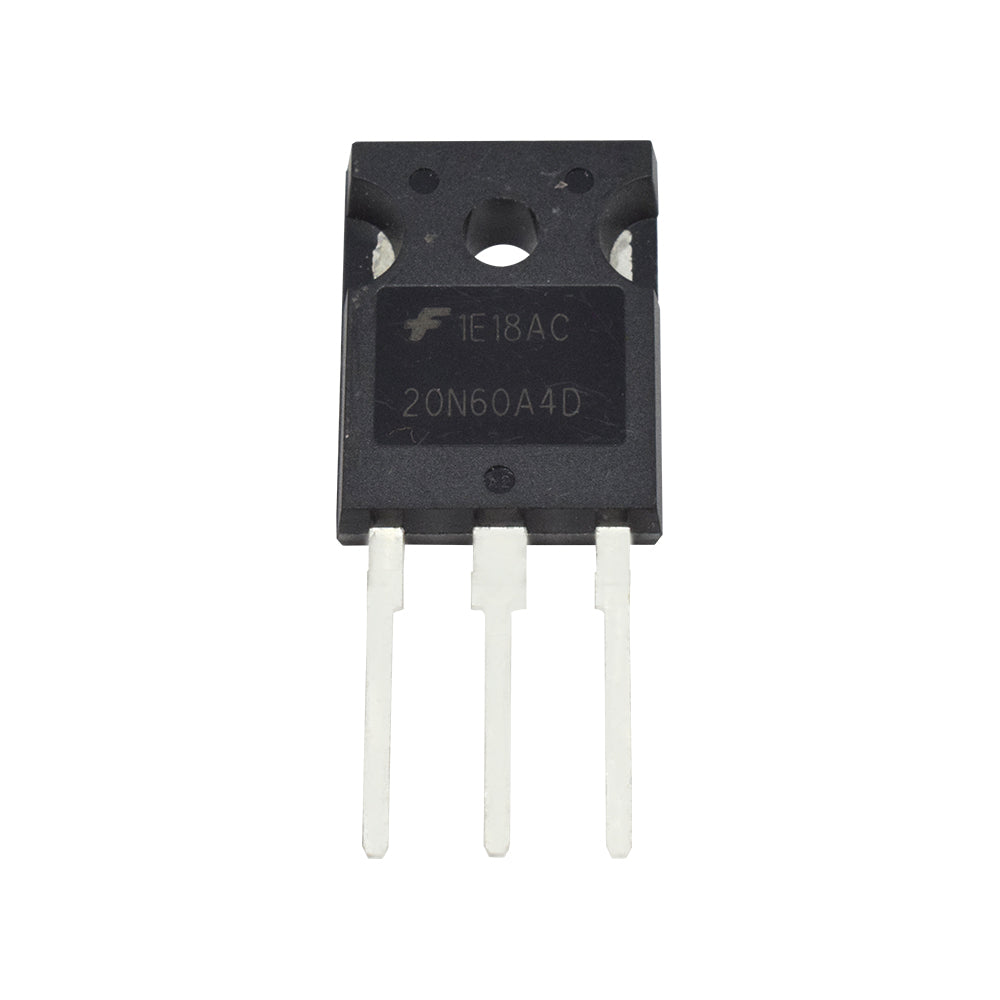

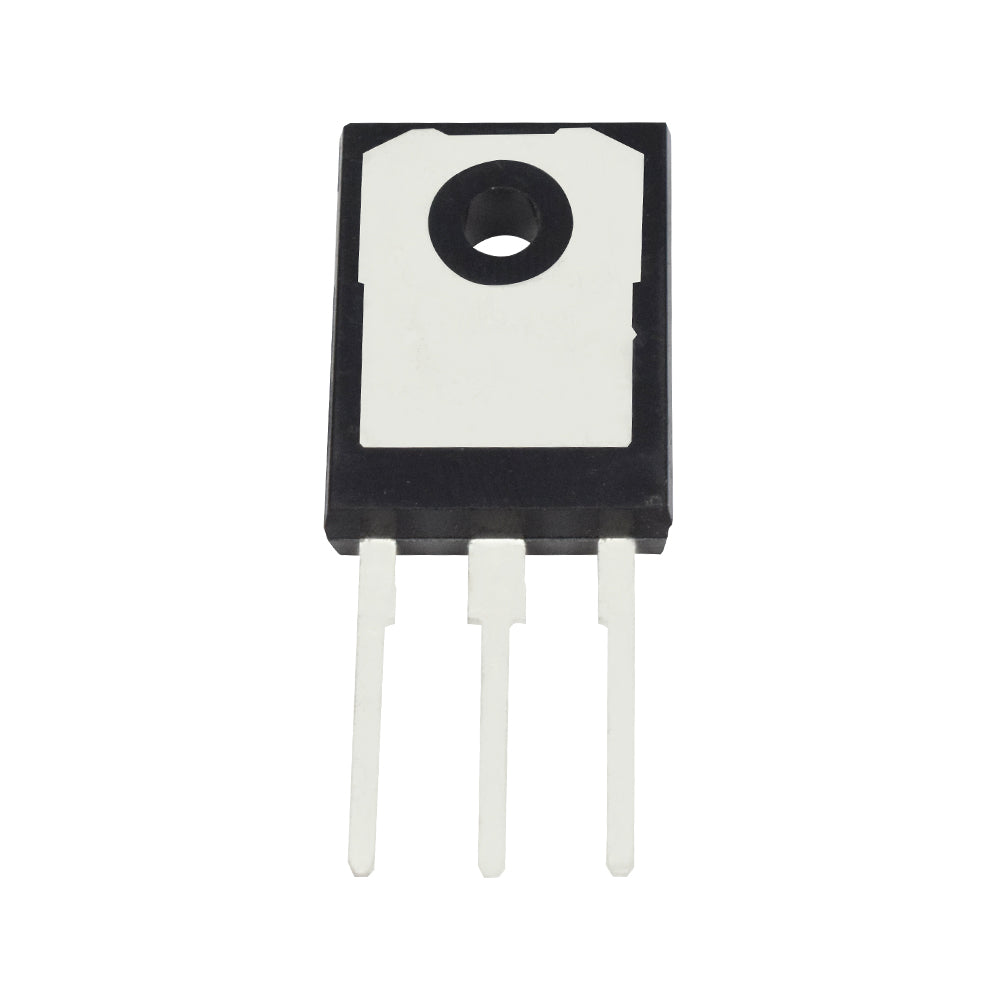

20N60A4D MOSFET

SKU: RZ24338547 Brand: ON Semiconductor Category: General

₹ 307.05

Out of Stock

Buy 20N60A4D MOSFET online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 300.91
11 – 30	3%	₹ 297.84
31 – 50	4%	₹ 294.77
51 – 100	5%	₹ 291.70

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Brand ON Semiconductor

Category General

Subcategory General

SKU RZ24338547

A high voltage switching device with MOS gate that combines the finest qualities of MOSFETs and bipolar transistors is called 20N60A4D. This device combines the low on-state conduction loss of a bipolar transistor with the high input impedance of a MOSFET. Between 25 and 150°C, the significantly smaller on-state voltage loss scarcely varies somewhat. The IGBT being used is a TA49339 development type. The development type TA49372 diode is utilized in anti-parallel. It has designed by Fairchild. This IGBT is perfect for a variety of high voltage switching applications that operate at high frequencies and require minimal conduction losses. This gadget is designed to work with high frequency switch mode power supply.

Features

>100 kHz Operation 390 V, 20 A
200 kHz Operation 390 V, 12 A
600 V Switching SOA Capability
Typical Fall Time 55 ns at TJ= 125°C
Low Conduction Loss
Its a lead free device

Applications

Fast switching operations
UPS
SMPS

Pinout:-

1: Gate, 2: Collector, 3: Emitter

Specification

Product	20N60A4D
Brand	Fairchild
Type	Hyper fast diode
Mounting Type	Through hole
Pins	3
Maximum operating voltage	600V
Package	TO-247−3LD
Power dissipation	260W
Maximum lead temperature	260°C
Fall time	55nS
Frequency	200KHz
Junction Temperature	125 Degree C
Country of Origin	China
