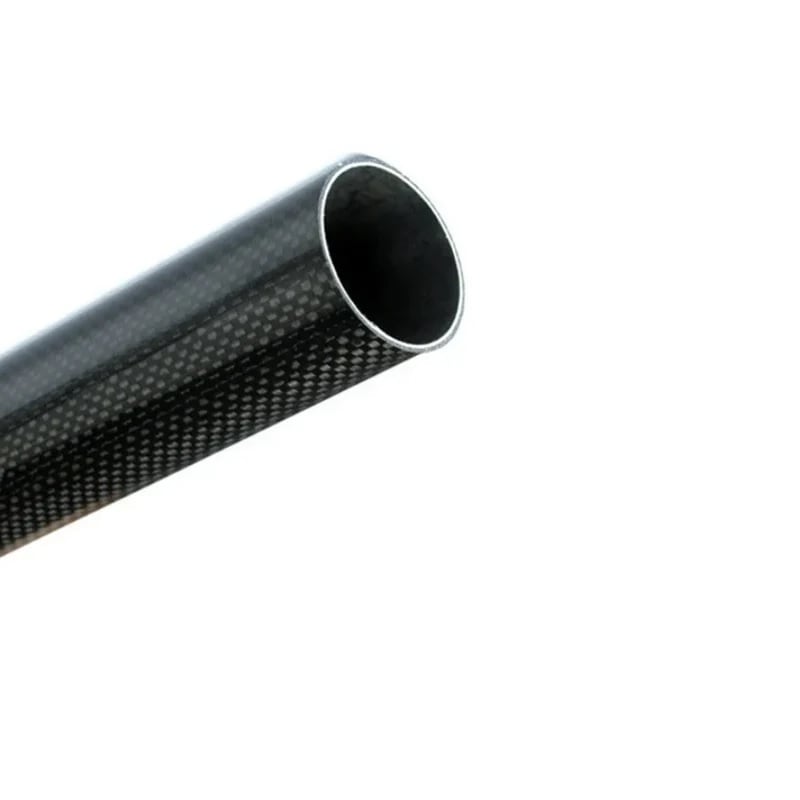

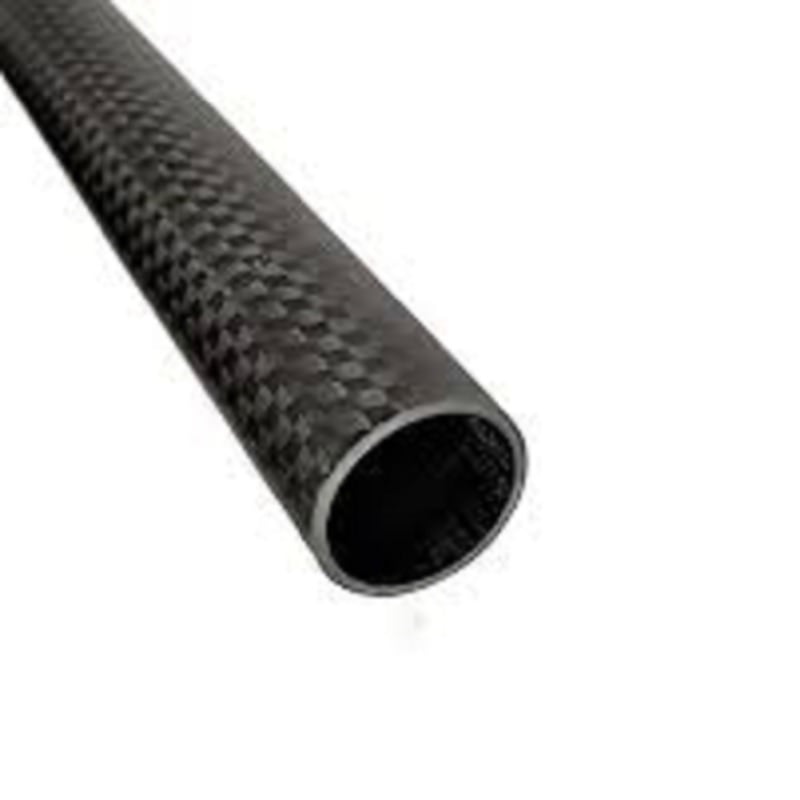

3K Carbon Fibre Tube (Hollow) OD40 x ID38 x L1000 MM

Carbon fiber tube can be used to replace aluminum or steel tubes in a wide range of projects. The Carbon fiber tube of the same weight as an aluminum or steel tube can be much stronger and lighter. This 40mm roll wrapped carbon fiber tube is manufactured predominantly using high modulus (T700) unidirectional prepreg carbon fiber oriented to provide maximum strength in the lateral axis.

Roll wrapped carbon fiber tubes offer superior strength in general use to ‘pultruded’ tubes (which have all their fibers running in exactly the same direction.

The use of unidirectional fibers and maximum strength in the lateral axis does mean that the tube is not strong across its diameter as it is along its length so should be used in such a way as to avoid unnecessary crushing forces across the tube.

Features:

1. Made of Carbon Fiber material
2. High Strength & lightweight
3. Stable dimension and UV resistant
4. High Corrosion  Resistance
5. Electrical & Thermal Non-Conductivity

Specifications:

1. Length: 1000mm
2. Outer Diameter: 40mm
3. Inner Diameter: 38mm
4. Material: Carbon Fiber
5. Weight: 199g

Packages Includes:

1 x 3K Carbon Fibre Tube (Hollow) OD40 x ID38 x L1000 MM
