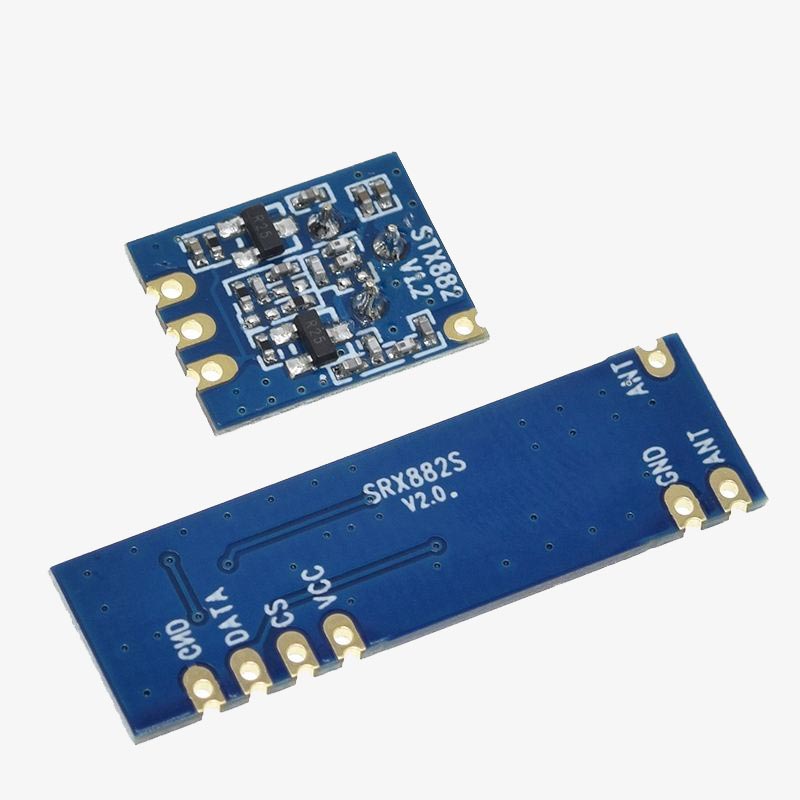

433MHz 100 Meters STX882 ASK Transmitter Module + SRX882 Superheterodyne ASK Receiver Module + 2 Antenna

Introducing the 433MHz 100 Meters STX882 ASK Transmitter Module & SRX882 Superheterodyne Receiver Module with Antenna kit. Designed for long-range data transmission and reception, this kit includes everything you need to establish reliable wireless communication links across distances of up to 100 meters. STX882 is an ASK transmitter module with small size, ultra-high power, low harmonics. With high stability, it is achievable at 50mW power when the voltage is 3.6V, it is the maximum transmitter power module under the same voltage in the market. The data port of the module can be connected to the microcontroller directly, make wireless product development and production more convenient.

SRX882 is a superheterodyne receiver with a micropower and strong driving force, which is a supplementary STX882 / STX888 module. The data port of the module can be connected to the microcontroller directly, make wireless product development and production more convenient.
SRX882 is a superheterodyne receiver with a micropower and strong driving force, which is a supplementary STX882 / STX888 module. The data port of the module can be connected to the microcontroller directly, make wireless product development and production more convenient.

Suitable Antennas:

• SW315-TH23 Gold Plated Spring Antenna: Designed for 315MHz wireless systems, offering small size, good VSWR, and stability.

• SW433-TH22 Gold Plated Spring Antenna: Tailored for 433MHz wireless systems, providing compact design, low VSWR, and durability.

Specifications:

STX882 ASK Transmitter Module:

• Frequency Range: 315MHz to 433.92MHz
• Maximum Output Power: 50mW at 3.6V (Market-leading)
• Voltage Range: 1.2V to 6V
• Data Rate: Up to 10kbps
• RF Power: 13dBm @2.4V, 15dBm @3V, 20dBm @5V
• Low-Power Sleep Mode: <1μA
• Modulation: ASK/OOK
• Compatibility: Direct microcontroller connectivity
• Frequency Stability: Reliable and stable
• International Standards: Complies with various testing standards

• Antenna dimensions: 26 x 4.5 mm (Height x Dia.)

SRX882 Superheterodyne Receiver Module:

• Frequency Range: 315MHz to 433.92MHz
• Voltage Range: 2.4V to 5.5V
• Latency: 20ms @ 315MHz, 9ms @ 433MHz
• Low Power Consumption: 2.5mA @ 315MHz, 2.8mA @ 433MHz
• Sensitivity: -110 dBm @ 1.2Kbps
• RF Data Rate: 0.1-9.6 Kbps
• Wide Receiver Bandwidth: 200 KHz
• Dimension: 35mm x 10.5mm
• Antennas: Included for enhanced performance

Applications:

Remote door, Wireless security alarm, Wireless industrial control, Wireless data transmission.

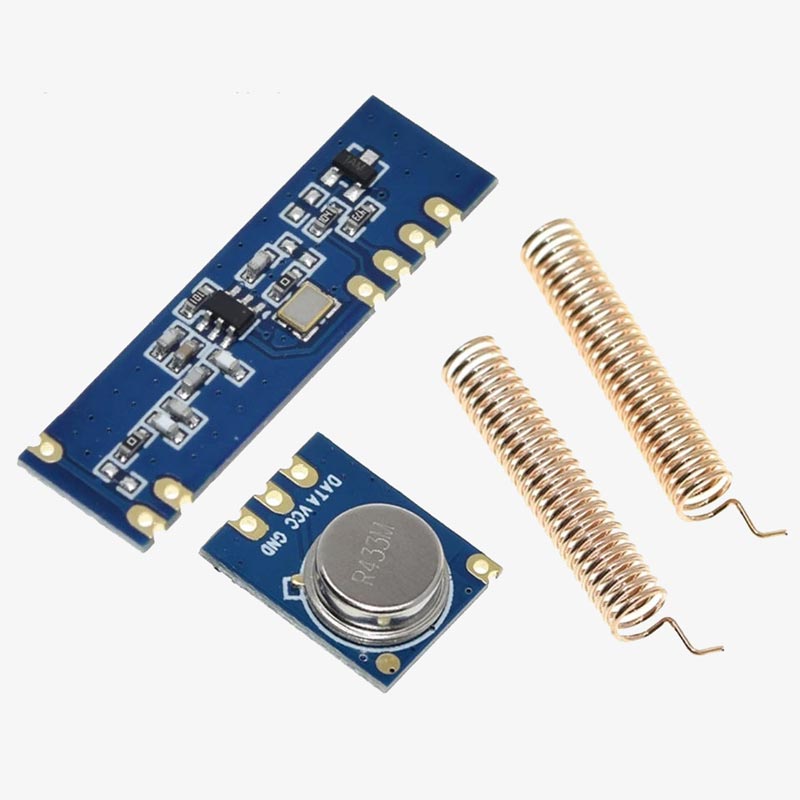

Package Includes:

1 x STX882 ASK Transmitter Module
1 x SRX882 Superheterodyne Receiver Module
2 x Spring Antennas
