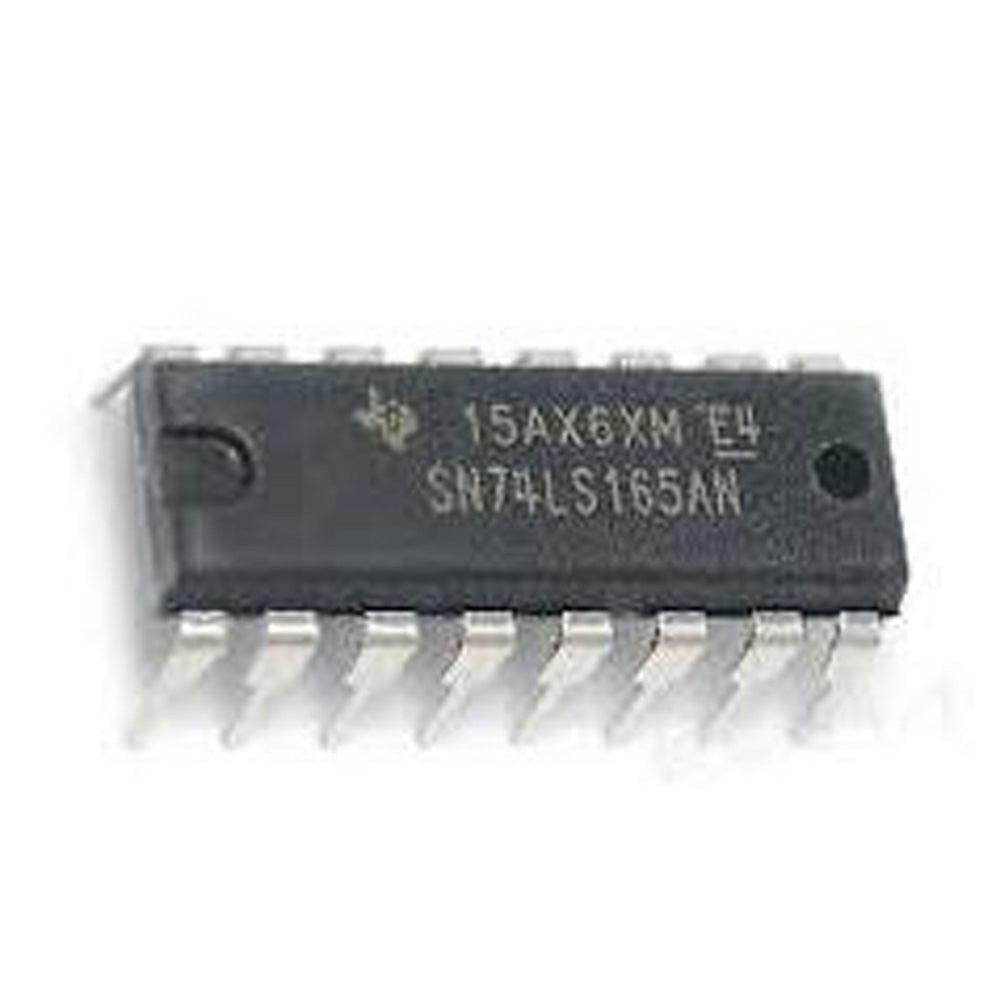

74LS165 Parallel In-Series Out Shift Register IC (74165 IC) DIP-16 Package

SKU: RZ24344677 Category: General

₹ 19.55

Out of Stock

Buy 74LS165 Parallel In-Series Out Shift Register IC (74165 IC) DIP-16 Package online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 19.16
11 – 30	3%	₹ 18.96
31 – 50	4%	₹ 18.77
51 – 100	5%	₹ 18.57

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Category General

Subcategory General

SKU RZ24344677

74LS Series ICs are High-Speed Logic gates, ideally a little faster than 74HC series but more power consumption is required. They are implemented with a Low-Power Schottky diode technology to achieve high switching speed. 74LS165 is one of the 74LS series IC. 74LS165 ICs contain an 8-Bit Parallel In/Serial Out shift register. The data is shifted from Qa to Qh synchronously. Data at the parallel inputs are loaded directly into the register when SH/LD is low, independently of the levels of CLK, CLK INH, or serial (SER) input. 74LS165 also has a feature of the complementary output of the last state.

The 74LS165 ICs have an operating range of VCC from 4.5 V to 5.5 V. Maximum current consumption is 30 mA through Icc and 0.1 mA per input pin. And the maximum propagation delay is 24 ns. They can provide 0.4 mA at High Input and 8 mA at Low Input. They allow inputs and outputs up to VCC. The recommended operating VCC is 5 V.

Specification:

Operating Voltage Range	4.5 V to 5.5 V
Package	DIP−16
Input Current	0.1 mA
Powering Current	30 mA
Propagation Delay	24 ns
Temperature Range	-65 °C - 150 °C

Pin Configuration:

Parallel Input (A, B, C, D, E, F, G, H)	2, 3, 5, 6, 11, 10, 14, 13
Inverting Output (QH')	7
Non-Inverting Output (QH)	9
Load Input (SH/LD')	1
Clock (CLK, CLK INH)	2, 15
Serial (SER)	10
Power Supply (VCC)	16
Ground (GND)	8
Country of Origin	China
