7A DC 60V Adjustable, Step-Down Regulator,, NC Power Supply, Module, Current Voltage, Meter, LCD Display, （With Case）

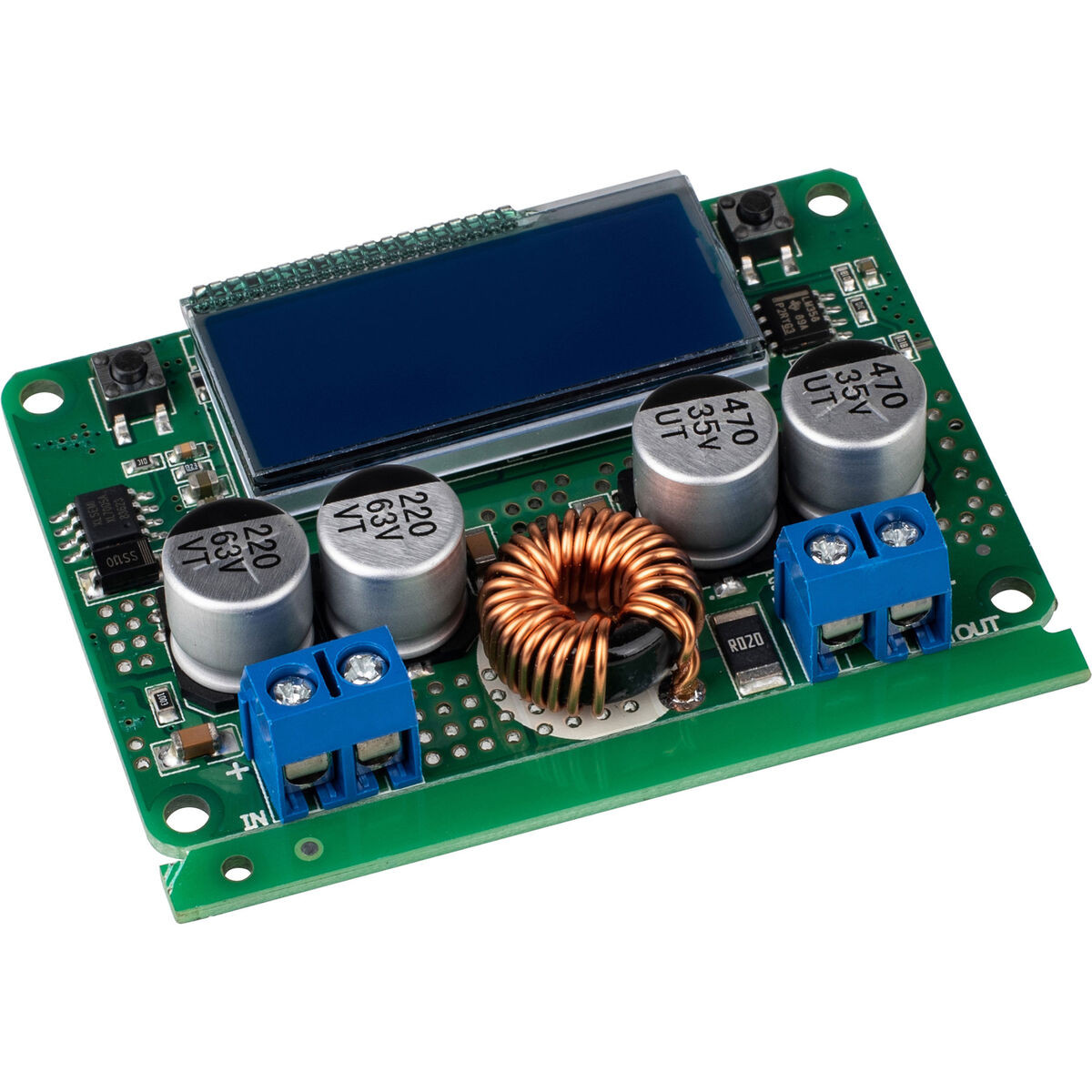

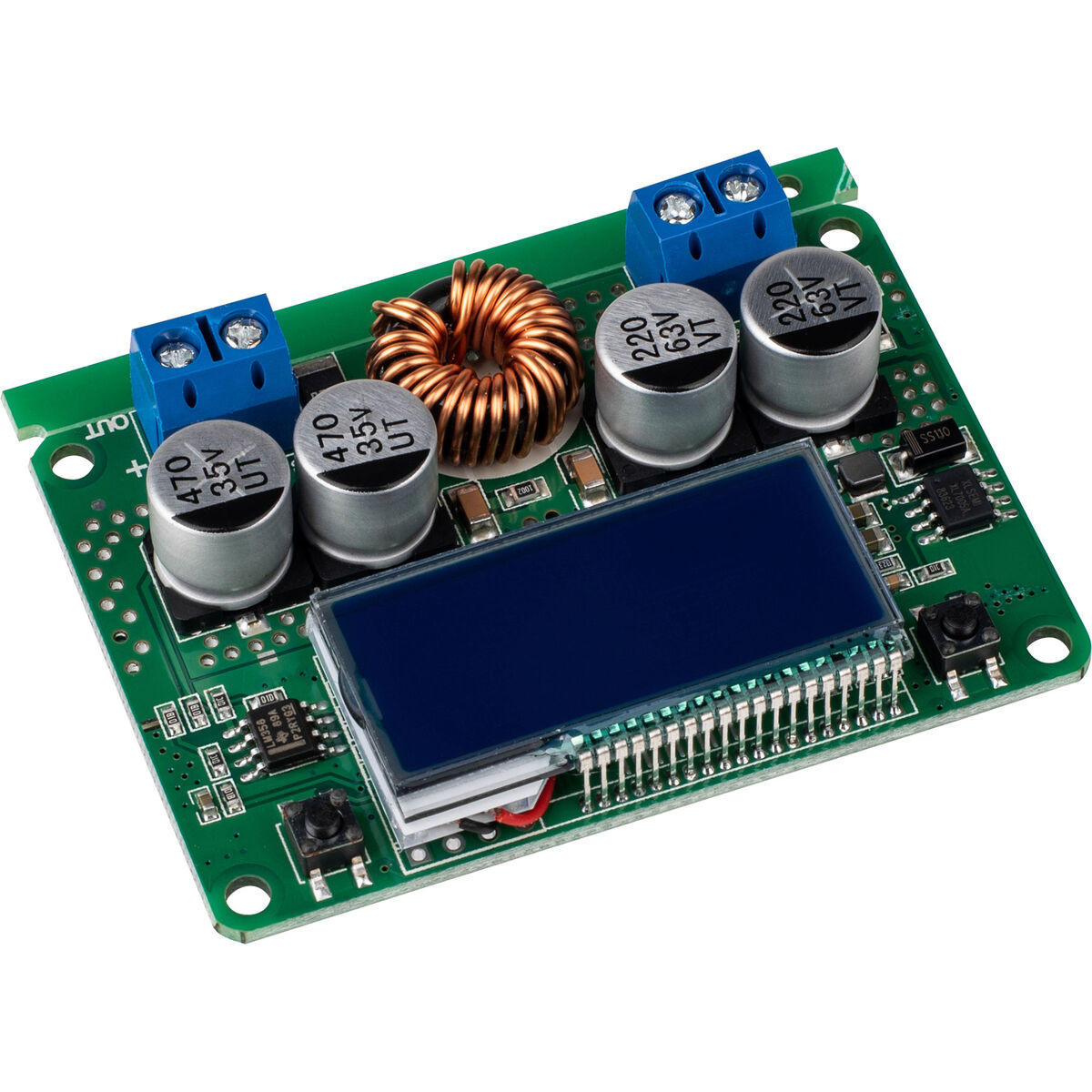

This step-down power supply module digitally displays output voltage and current draw. This enables you to monitor how much current your device is drawing while it’s working with the correct voltage. This helps you determine what AC adapter will work with your project without overheating it. The down converter accepts a 60V AC/DC adapter, but we recommend a 36 VDC 5A 120-063 adapter since the output is up to 32 VDC. Built-in short circuit protection for safe voltage down conversion.

Specification

1. Output Voltage: 3~32 adjustable (It can save the last set voltage automatically)
2. Peak Current: Recommended use in 2A, the accuracy of 1%, the minimum display 0.01A, less than 10mA will not be displayed.
3. Peak Current: 3A (Recommended use in 2A, the accuracy of 1%, the minimum display 0.01A, less than 10mA will not be displayed.)
4. Conversion Efficiency: 95%
5. Load Regulation S(I) 0.8%
6. Voltage Regulation S(U) 0.8%
7. Size: 62 x 44 x 18mm
8. Weight: 45g

Features:

1. Input Voltage: 8-60V, please keep the balance, it is recommended to use within 55V.
2. Output voltage: 3V-32V continuously adjustable, automatically save the last set voltage (input voltage must be higher than the output voltage 1V above).
3. Output current: maximum 7A, it is recommended to use within 5A, when the heat is big, please solve the heat dissipation problem by yourself. Note: The current size is adaptive to load, not adjustable.
4. Anti-anti-input: YES
5. Short circuit protection: YES
6. Accuracy: 1%, three voltage display, two current display, the unit is A.
7. Conversion efficiency: up to 95% (efficiency is related to input, output voltage, current and pressure).
8. Load regulation: S (I) ≤0.8%, voltage regulation: S (u) ≤0.8%
9. Size: 62mm * 44mm * 18mm
10. Weight: 45g

Calibration instructions:

Voltage calibration method: Under the no-load conditions, press and hold the left button to connect to the power supply, release the left button, the voltage value of the display begins to flash, measure the output voltage with a multimeter, and press the left and right keys to set the same value with the meter, Such as: multimeter measurement is 12.6V, the module set to 12.6V, it can be automatically saved three seconds, re-power voltage calibration is completed. The error can be calibrated within 0.05V, if the error is bigger, you can try again.

Current calibration method: After calibrating the voltage, load, first use a multimeter to measure the actual current value, then power off the board, press and hold the right button to connect to the power, release the right button, the screen current value starts flashing, press the left and right button to adjust value the same with the multimeter, for example the multimeter measurement value is 1.8A, the module can be adjusted to display 1.8A, three seconds automatically saved, re-power on the current calibration is completed.

Package Includes:

1 x 7A DC 60V Adjustable Step-Down Regulator Module LCD Display（With Case）
