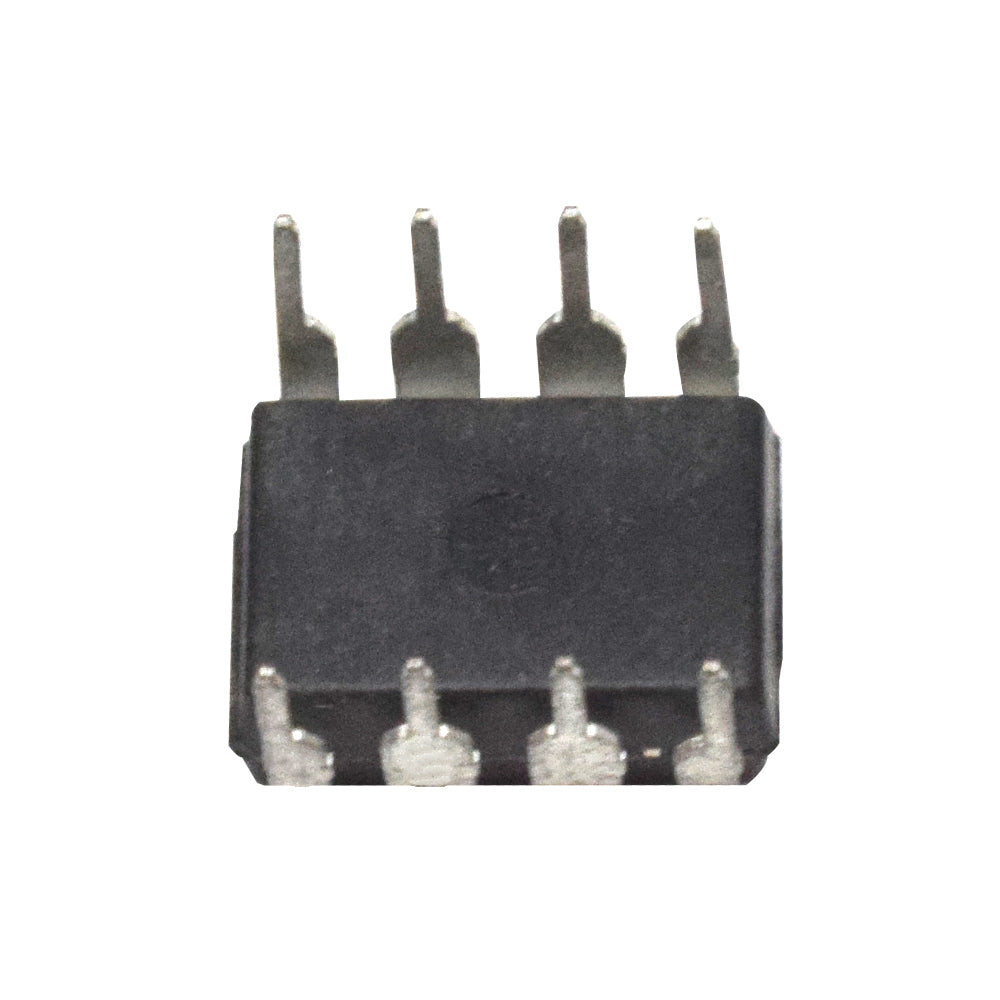

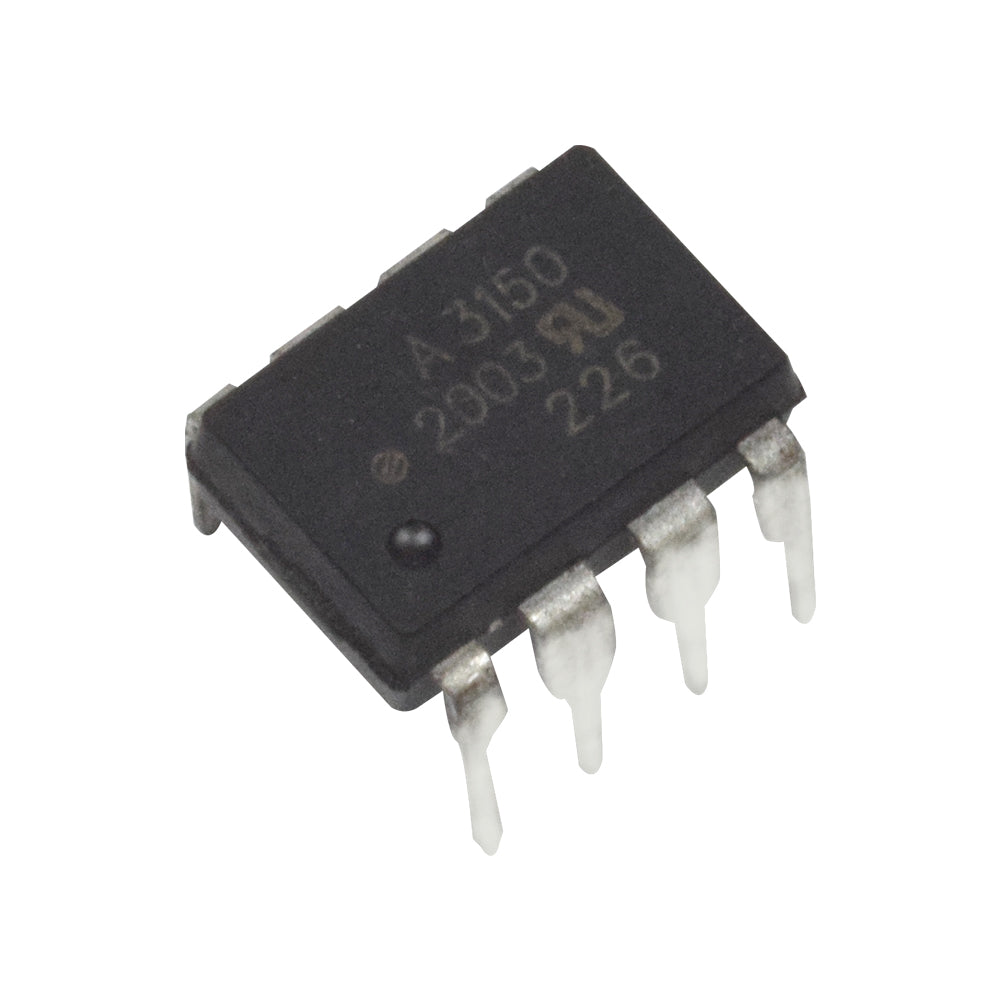

A3150 Optocoupler in DIP-8 Package

SKU: RZ24338523 Category: General

₹ 117.30

Out of Stock

Buy A3150 Optocoupler in DIP-8 Package online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 114.95
11 – 30	3%	₹ 113.78
31 – 50	4%	₹ 112.61
51 – 100	5%	₹ 111.44

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Category General

Subcategory General

SKU RZ24338523

A3150 Optocoupler used in motor control inverter applications, this optocoupler is perfectly suited. The output stage's large operating voltage range supplies the drive voltages needed by gate-controlled devices. This optocoupler is perfectly suited for directly driving IGBTs with ratings up to 1200V/50A due to the voltage and current it supplies. The HCPL-3150/315J can be used to drive a discrete power stage that drives the IGBT gate for IGBTs with greater ratings.

Features

0.6A maximum peak output current
1.0V maximum low level output voltage (VOL) eliminates need for negative gate drive
Under voltage lock-out protection (UVLO) with hysteresis
Wide operating VCC range: 15V to 30V
±0.35-µs maximum delay between devices/channel

Specification

Model	A3150
Type	Optocoupler
No of Pins	8
Channels	1
Package	8 Pin DIP
Output current	0.5A
Maximum switching speed	500nS
Operating voltage range	15 to 30V
Country of Origin	China
