Adafruit ISO1540 Bidirectional I2C Isolator – STEMMA QT / Qwiic

Adafruit ISO1540 Bidirectional I2C Isolator – STEMMA QT / Qwiic (AF-4903)

Sometimes you’ll find yourself with an I2C bus controller on one side, and an I2C bus device on the other and you gotta keep em (electrically) separated. Maybe because one is Earth-grounded, maybe because you’ve got some funky power monitoring setup, maybe you want to reduce noise.

Whatever it is, you can use the Adafruit ISO1540 Bidirectional I2C Isolator to add full electrical isolation between two sides of an I2C bus. The chip we use, the TI ISO1540 is fully bi-directional, supports up to 1 MHz clock rates, supports clock-stretching, works with 3 to 5V DC power or logic (separate on either side of course), with 2500 V-RMS isolation

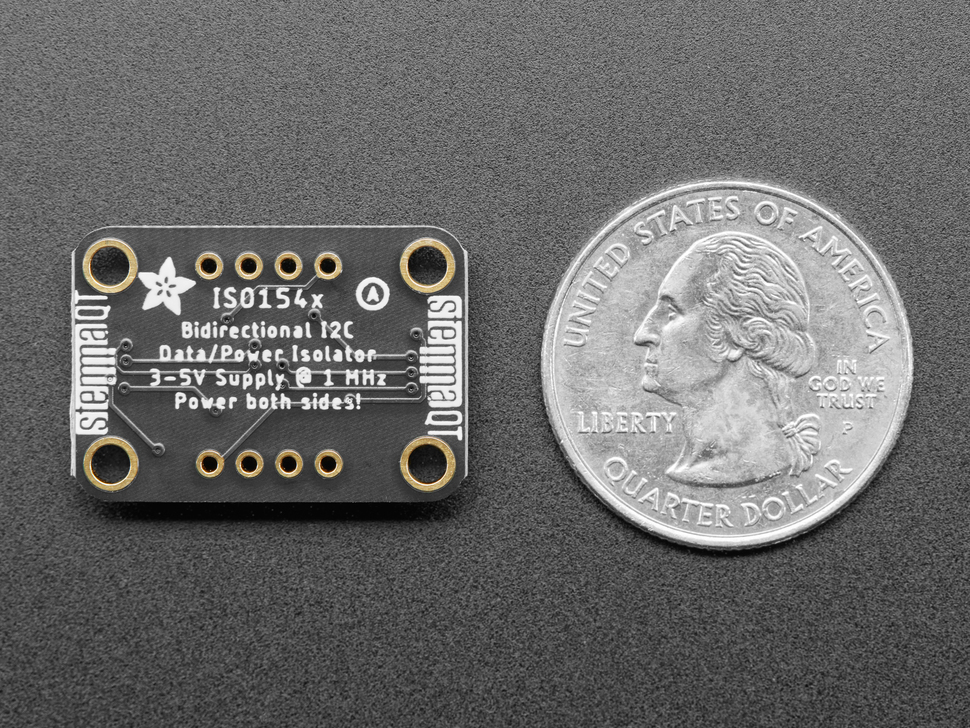

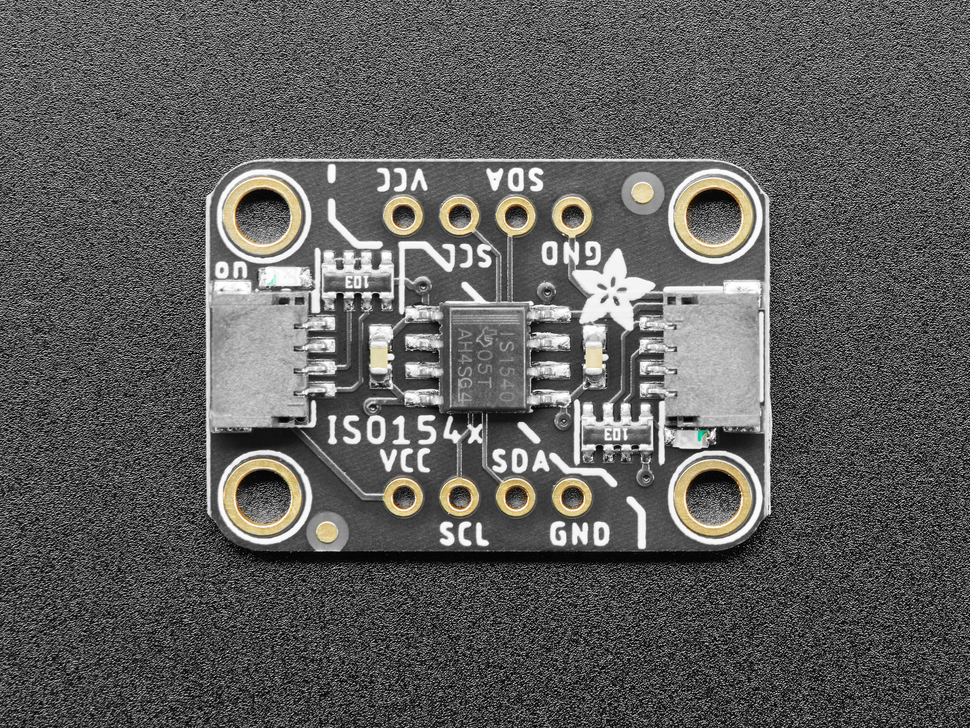

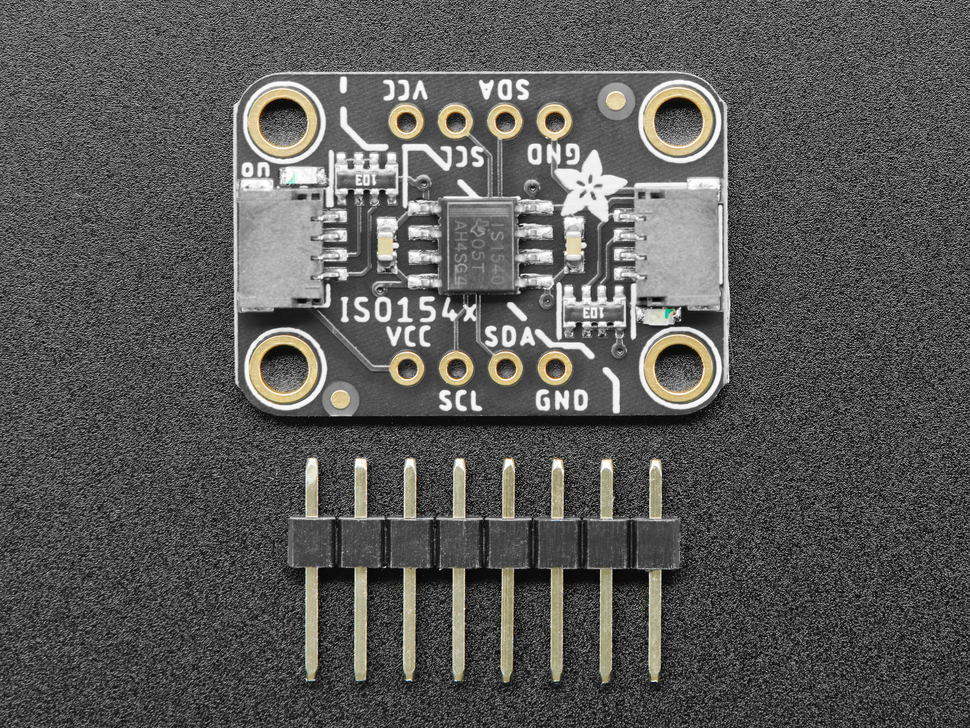

Usage is easy – you get power/ground/clock/data breakout pads for each side as well as a matching STEMMA QT connector. Unlike our other QT boards, the two sides are obviously electrically isolated, which means each half must be powered! Check that the green LED is lit on both sides. Now send data over I2C and you’re good to go. We have 10K pullups on each side, from the I2C pins to the matching VCC for that side.

Features:

• Isolated bidirectional, I2C compatible, communication
• Supports up to 1-MHz operation
• 3-V to 5.5-V supply range
• Open-drain outputs With 3.5-mA Side 1 and 35-mA Side 2 sink current capability
• -40°C to +125°C operating temperature
• ±50-kV/μs transient immunity (Typical)
• HBM ESD protection of 4 kV on all pins; 8 kV on bus pins
• Safety-related certifications:
  • 4242-VPK isolation per DIN VDE V 0884-11:2017-01
  • 2500-VRMS isolation for 1 minute per UL 1577
  • CSA approval per IEC 60950-1 and IEC 62368-1 end equipment standards
  • CQC basic insulation per GB4943.1-2011

Package Includes:

1 x Adafruit ISO1540 Bidirectional I2C Isolator
