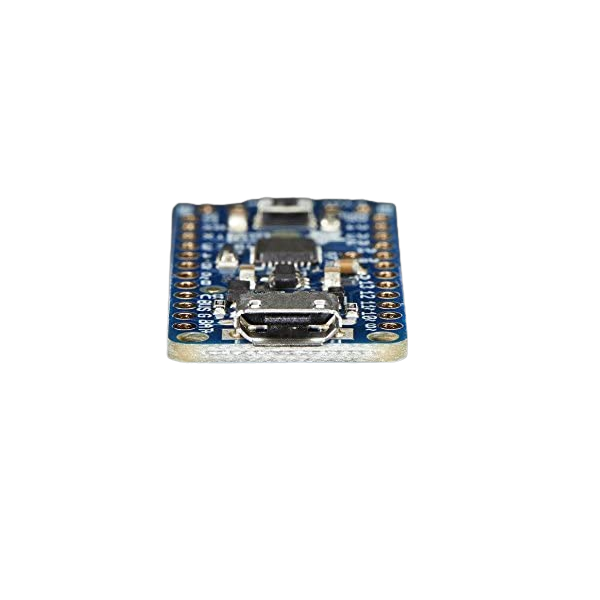

Adafruit Pro Trinket – 5V 16 MHz

Trinket’s got a big sister in town – the Pro Trinket 5V! Pro Trinket combines everything you love about Trinket with the familiarity of the common core Arduino chip, the ATmega328. It’s like an Arduino Pro Mini with more pins and USB tossed in, so delicious. Trinket’s a year old now, and while its been great to see tons of tiny projects, sometimes you just need more pins, more FLASH, and more RAM. That’s why we designed Pro Trinket, with 18 GPIO, 2 extra analog inputs, 28K of flash, and 2K of RAM. Like the Trinket, it has onboard USB bootloading support – we opted for a MicroUSB jack this time. We also added Optiboot support, so you can either program your Pro Trinket over USB or with a FTDI cable just like the Pro Mini and friends. The Pro Trinket PCB measures only 1.5″ x 0.7″ x 0.2″ (without headers) but packs much of the same capability as an Arduino UNO. So it’s great once you’ve finished up a prototype on an official Arduino UNO and want to make the project smaller. The Pro Trinket 5V uses the Atmega328P chip, which is the same core chip in the Arduino UNO/Duemilanove/Mini/etc. at the same speed and voltage.

Features:

1. ATmega328P onboad chip in QFN package
2. 16MHz clock rate, 28K FLASH available
3. USB bootloader with a nice LED indicator & headers for an FTDI port for reprogramming
4. On-board 5.0V power regulator with 150mA output capability and ultra-low dropout, up to 16V input, reverse-polarity protection, thermal and current-limit protection.

Package Includes:

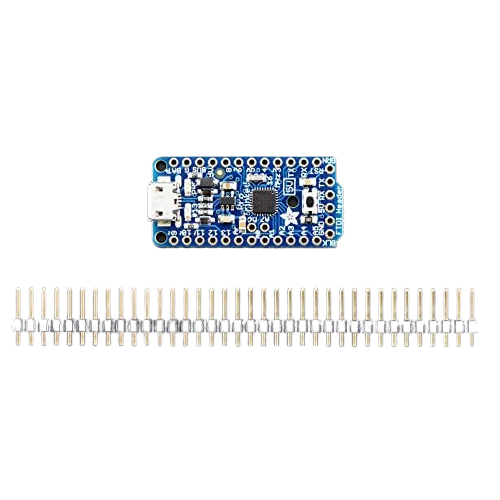

1 x Adafruit Pro Trinket – 5V 16 MHz
