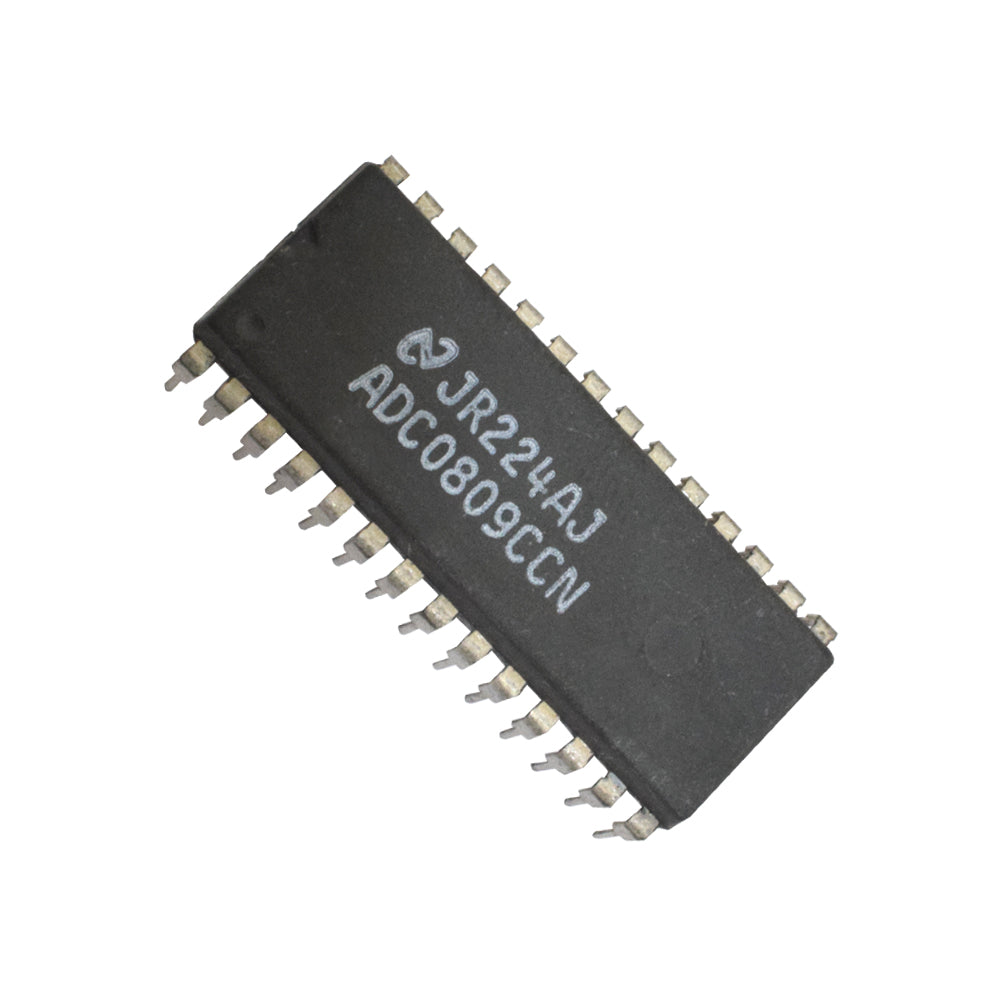

ADC0809CCN 8 Bit A/D Converter with DIP-28 Package

ADC0809CCN is an IC which is known as a converter IC, analog to digital converter IC. It has total 28 pins. The ADC0809 data acquisition component is an 8-bit analog-to-digital converter, an 8-channel multiplexer, and control logic that is compatible with microprocessors. It is a monolithic CMOS device. The conversion method used by the 8-bit A/D converter is sequential approximation. The converter has a successive approximation register, a 256R voltage divider with analogue switch tree, and a high impedance chopper stabilized comparator. Any of the 8 single-ended analogue signals can be directly accessed by the 8-channel multiplexer.

Features:

• Its easy to interface with all type of Microprocessor
• It operates on 5V DC
• It has 8 Channel Multiplexer with Address Logic
• Its input voltage range is 0-VCC
