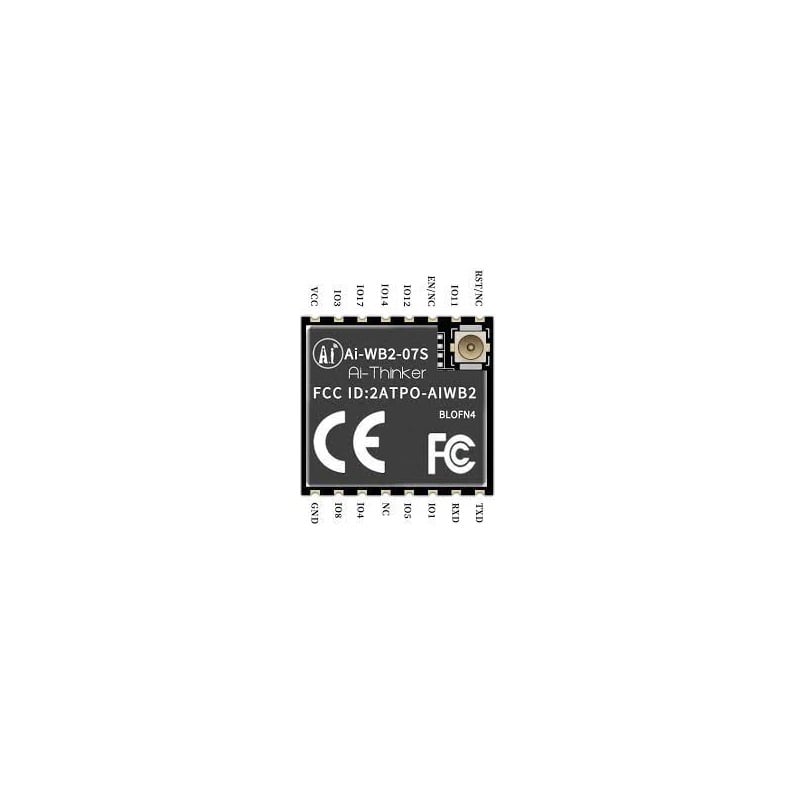

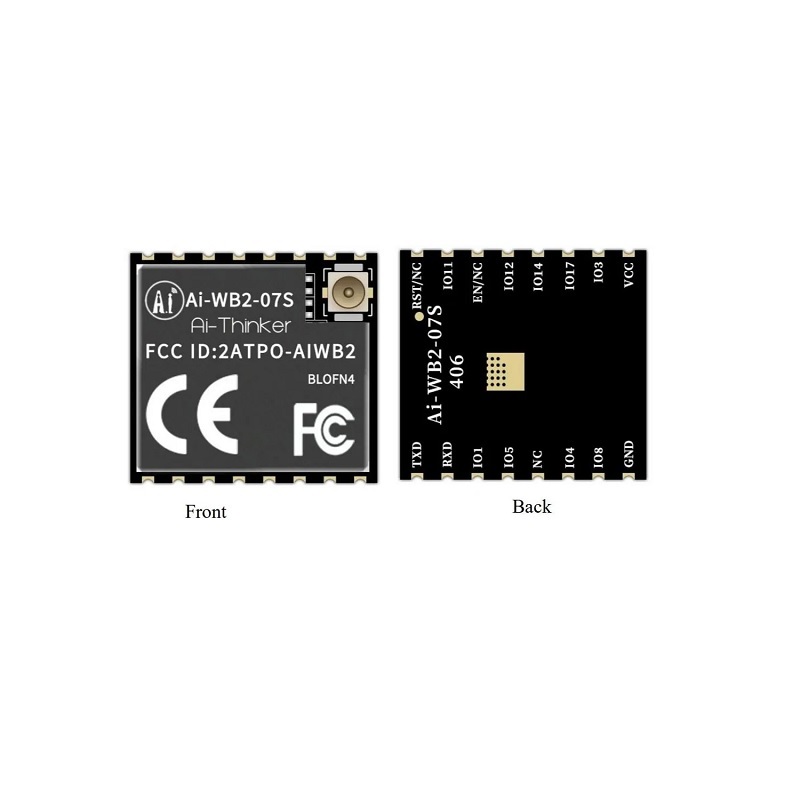

Ai-Thinker Ai-WB2-07S Module

Ai WB2 07S is a Wi-Fi&BT module developed by Shenzhen Ai Thinker Technology Co., LTD. The module is equipped with a BL602 chip as the core processor and supports Wi-Fi 802.11b/ g/n protocol and BLE 5.0 protocol. The BL602 chip has a low power 32 bit RISC CPU, 276KB RAM, and a wealth of peripheral interfaces, including SDIO, SPI, UART, I2C, IR Remote, PWM, ADC, DAC, PIR, and GPIO, etc. It can be widely used in the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes, and other fields.

Features:

1. The package is SMD 22
2. Support IEEE 802.11 b/g/n protocol
3. Wi-Fi Security Support WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
4. Support 20MHz bandwidth and the Max rate is 72.2 Mbps
5. Bluetooth BLE 5.0, Bluetooth Mesh
6. Support Station + BLE moderation + SoftAP + BLE mode
7. Support 32-bit RISC CPU276KB RAM
8. Secure start-up, supports mirroring with ECC 256 signature
9. Support QSPI/SPI Flash On The Fly AES Decryption, support AES 128 CTR mode
10. Support AES 128/192/256-bit encryption engine
11. Support SHA 1/224/256
12. Support true Random number generator (TRNG)
13. Public key Accelerator (PKA), supports a large number of basic operations, the software provides a signature, verification, and other application program interface
14. Support SDIOSPIUARTI2CIR remotePWMADCDACPIRGPIO etc
15. Integrated Wi-Fi MAC/BB/RF/PA/LNA/BT
16. Support a variety of sleep modes, deep sleep current 12μA
17. Universal AT instruction for a quick start
18. Support secondary development, integrated Windows, and Linux development environment

Specifications:

1. Model: Ai WB2 07S
2. Package: SMD 22
3. Size 17.0*16.0*3.1(±0.2)mm
4. Antenna Connector: IPEX
5. Frequency 2400 ~ 2483.5MHz
6. Operating temperature 40℃ ~ 85℃
7. Storage temperature 40℃ ~ 125℃, < 90%RH
8. Power supply Support voltage 2.7V ~ 3.6V
9. Supply current ≥500mA
10. Interface UART/GPIO/ADC/PWM/I2C/SPI
11. IO: 15
12. UART: rate Default 115200 bps
13. Security: WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
14. Flash: Default 4MByte, MAX support 16MByte

Package Includes:

1 x Ai-Thinker Ai-WB2-07S Module
