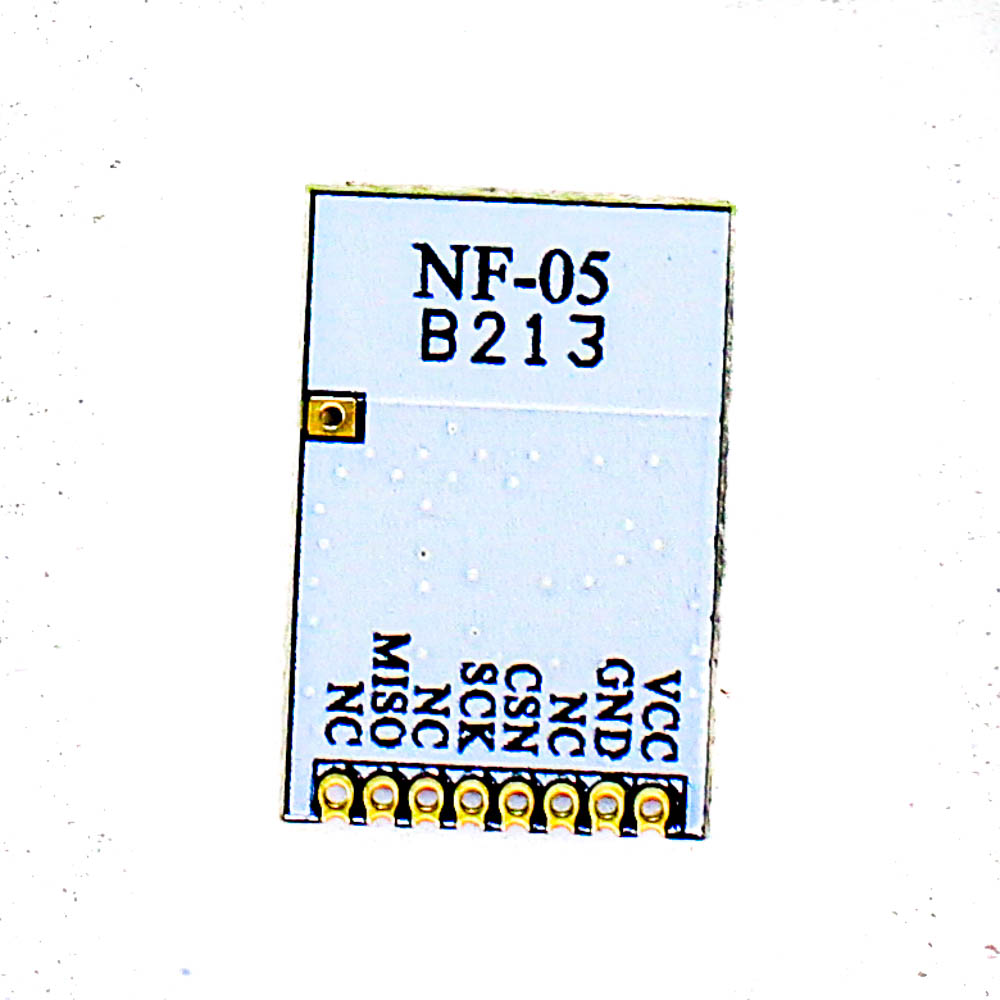

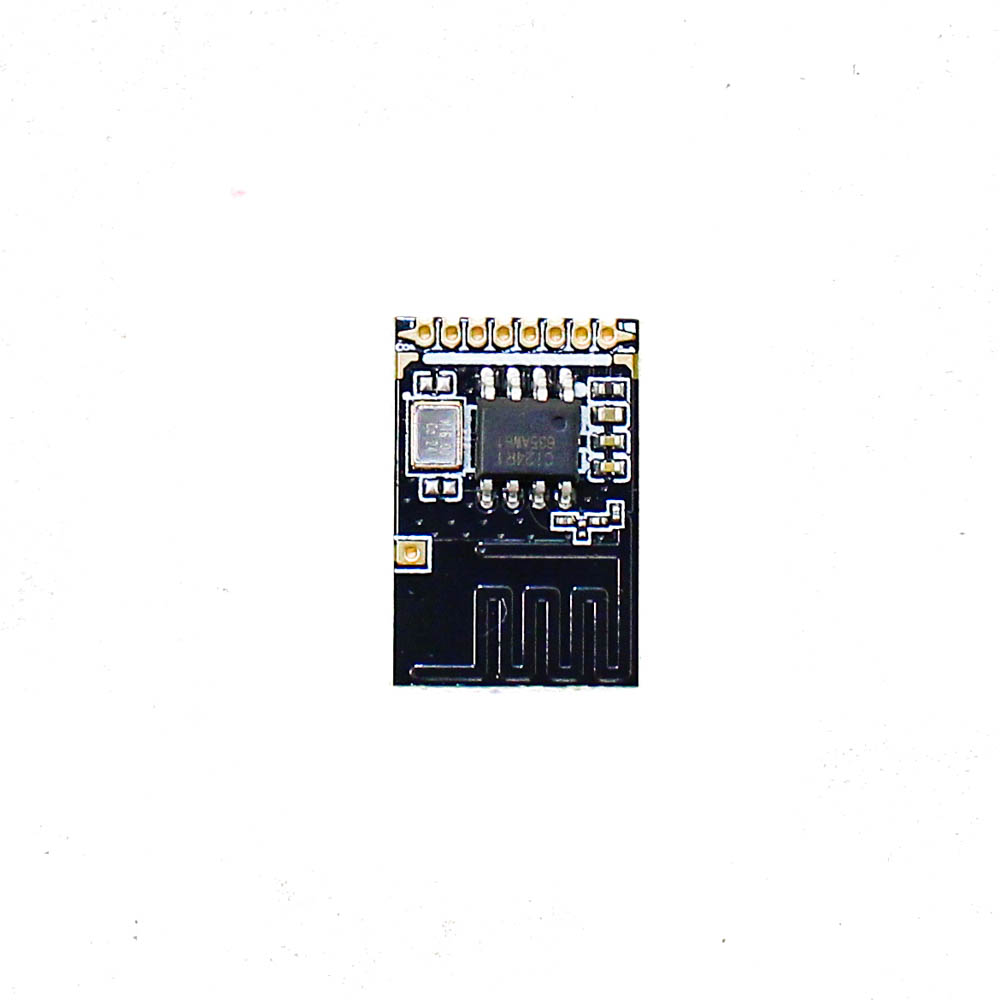

Ai-Thinker NF-05 module

NF-05 is a 2.4GHz module developed by Shenzhen Ai-Thinker Technology Co., LTD. Thecoreprocessor chip Ci24R1 is a high-performance 2.4ghz GFSK wireless transceiver chip, designed for a wireless mouse, keyboards, wireless remote control, motion sensing devices, smart power
grid, smart home, wireless audio, wireless data transmission, and other applications. NF-05chips have industry-leading low power performance and rf performance, supportingGFSK/FSK protocols. The chip integrates high PSRR LDO and an intelligent ARQbasebandprotocol engine. The chip has a fast startup time of less than 160uS and ultra-low-power
consumption of up to 2uA, which can meet the power requirements of various application scenarios. Few peripheral devices greatly reduce the application cost of the system. NF-05 module rate: 250Kbps, 1Mbps, 2Mbps. Support broadcast, and channel selection.

Features:

1. Fast start selectable recovery time<160uS
2. Low Power consuptions
3. High internal integration PSRR LDO
4. Maximum 10MHz two-wire SPI interface
5. Internal integration of intelligent ARQ baseband protocol engine
6. The hardware for sending and receiving data is interrupted
7. Supports 1bit RSSI output
8. Few peripheral devices, reduce the system application cost
9. Packaged SMD-8

Specifications:

1. Product: Core processor chip
2. Model: NF-05
3. Brand: Ai-Thinker
4. Power Supply: 3.6V
5. Current: 100mA
6. Working frequency: 2.4GHz ISM band
7. Debug Mode: GFSK/FSK
8. Power consumption：2uA
9. Data Rate: 2Mbps/1Mbps/250Kbps
10. Operating temperature: -40 ℃ ~ 85 ℃
11. Storage temperature: -40 ℃ ~ 125 ℃ , < 90%RH
12. Antenna On board antenna
13. Interface: SPI

Packages Includes:

1 x Ai-Thinker NF-05 module
