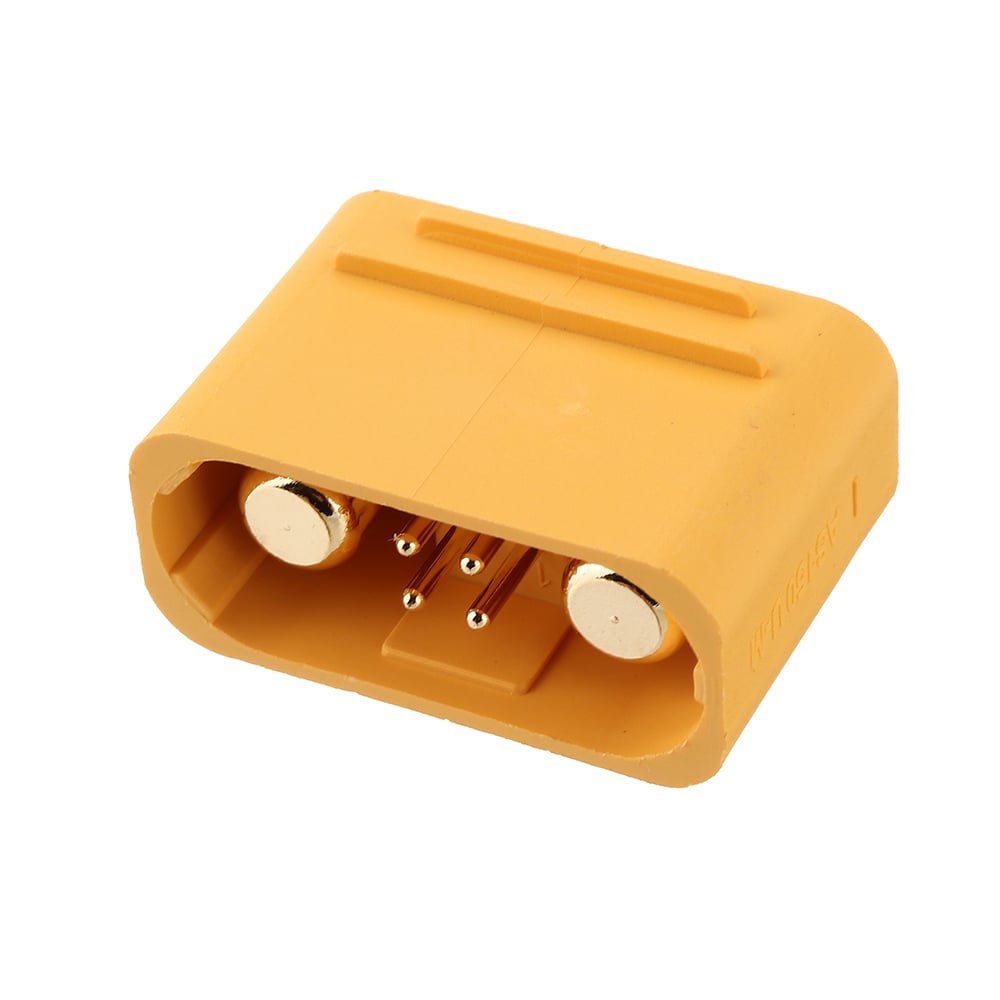

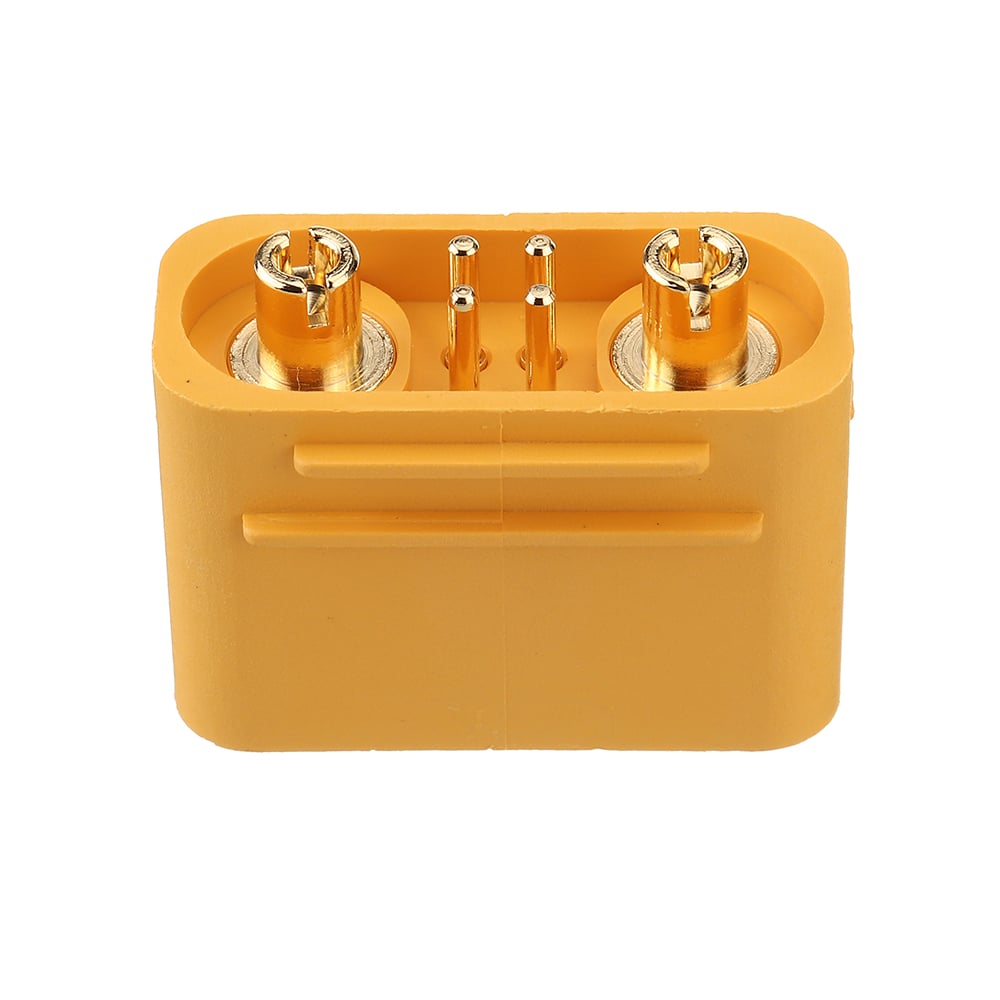

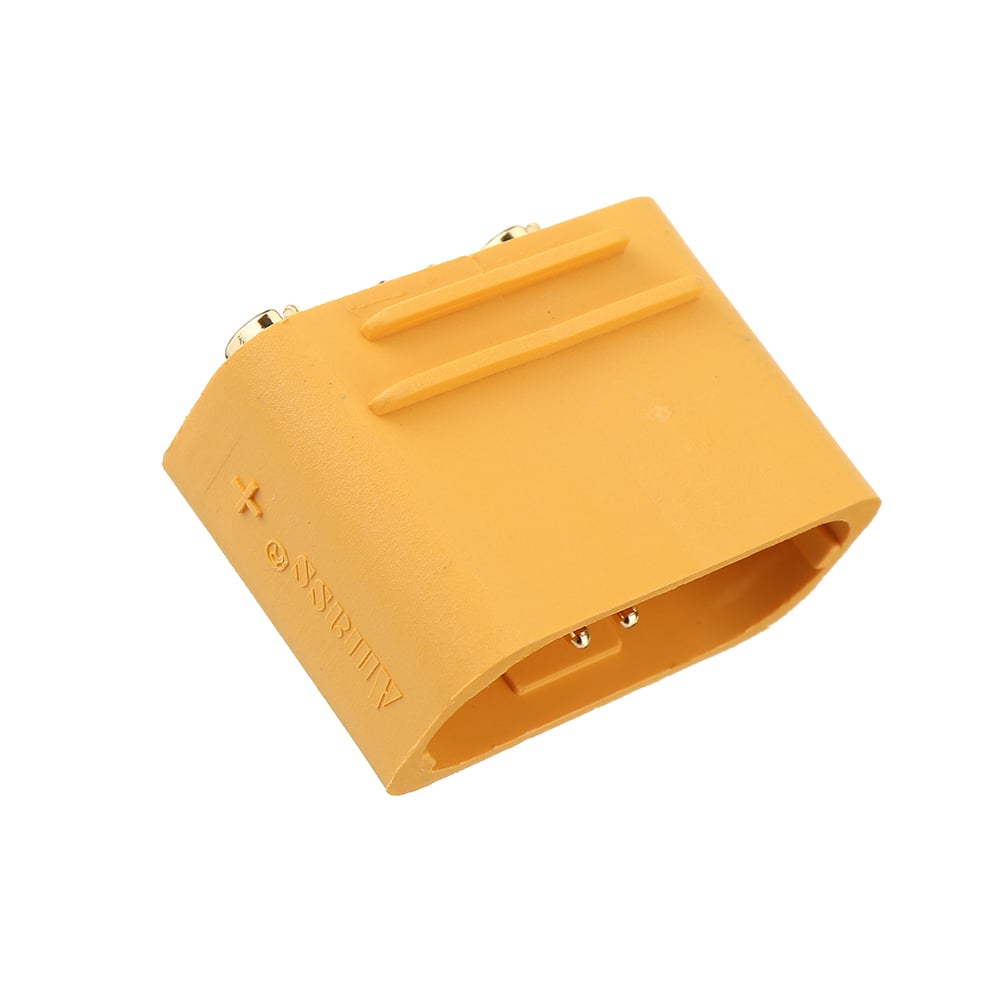

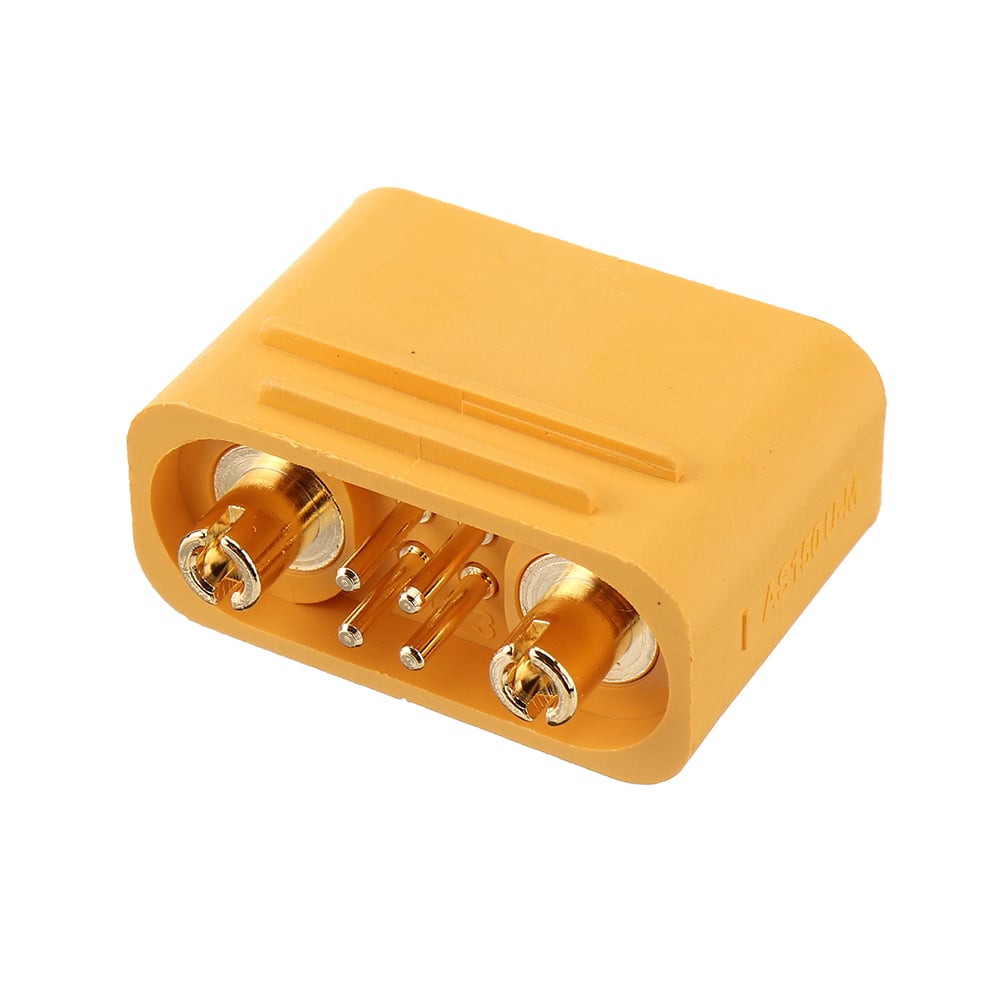

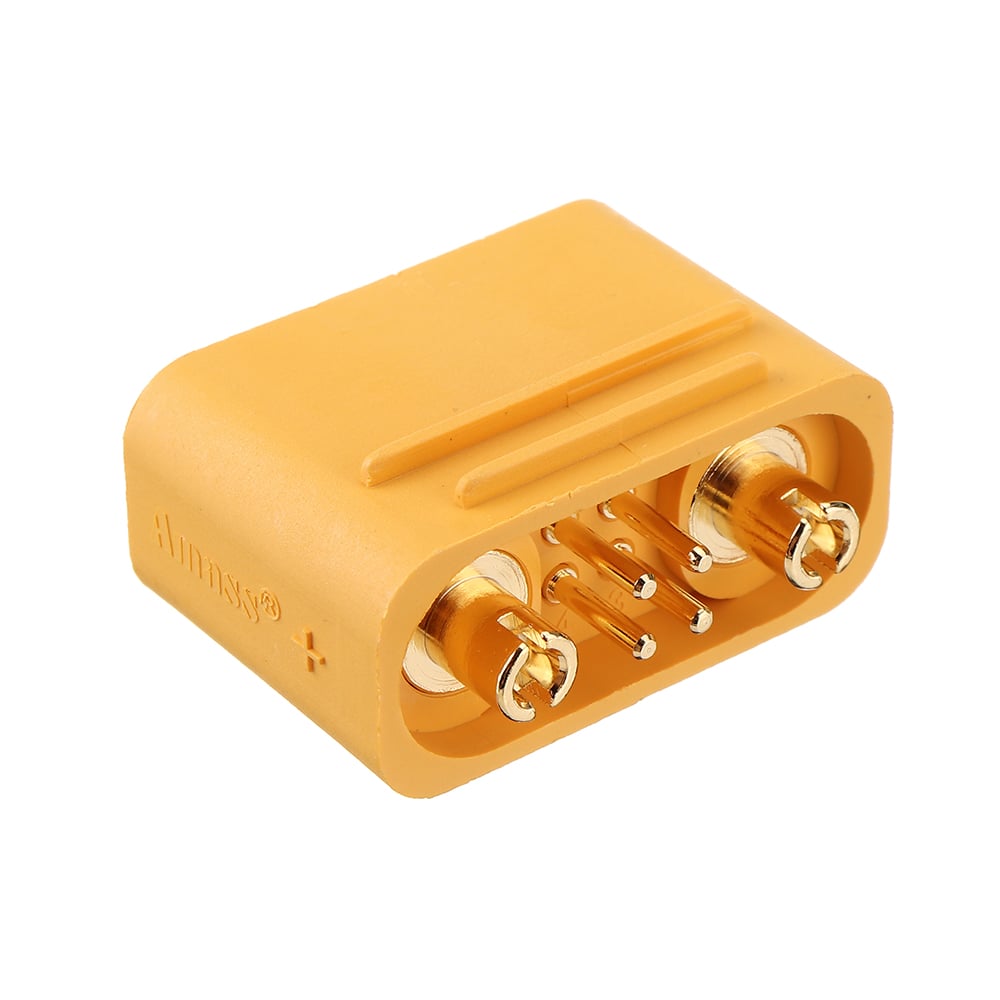

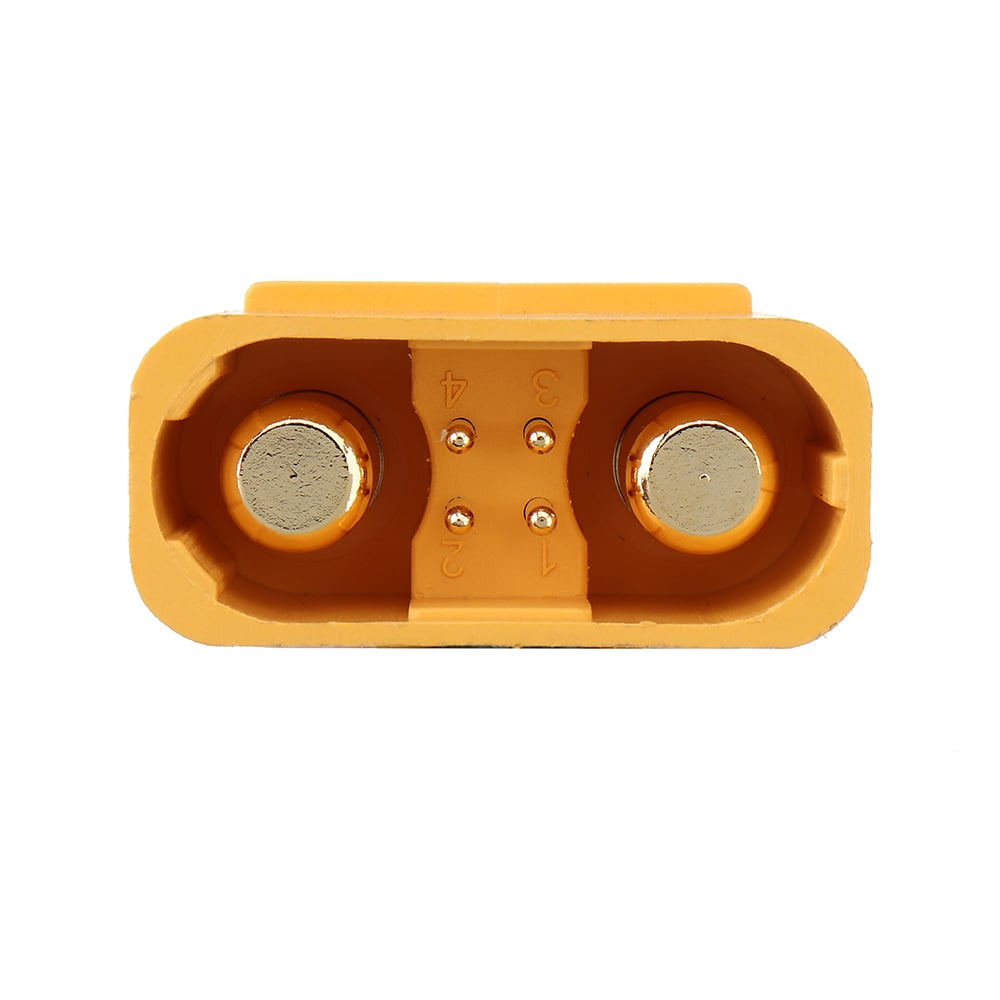

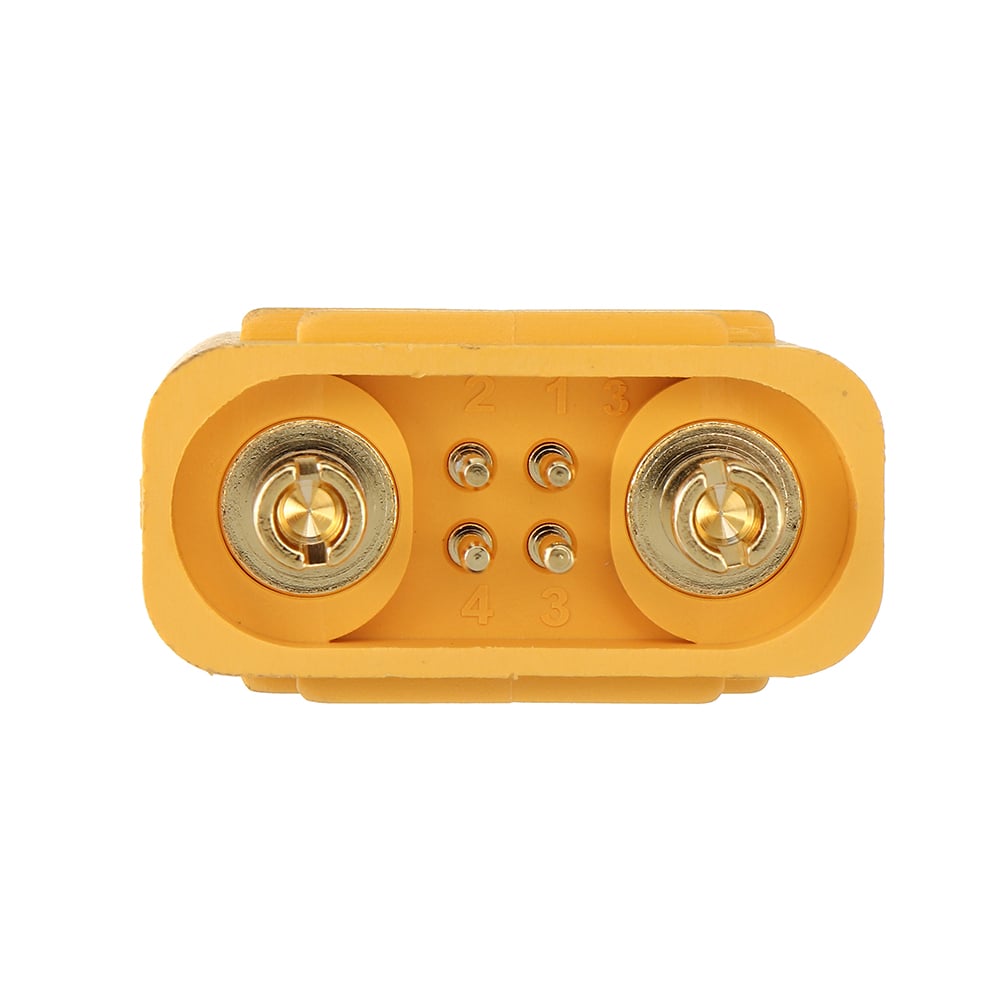

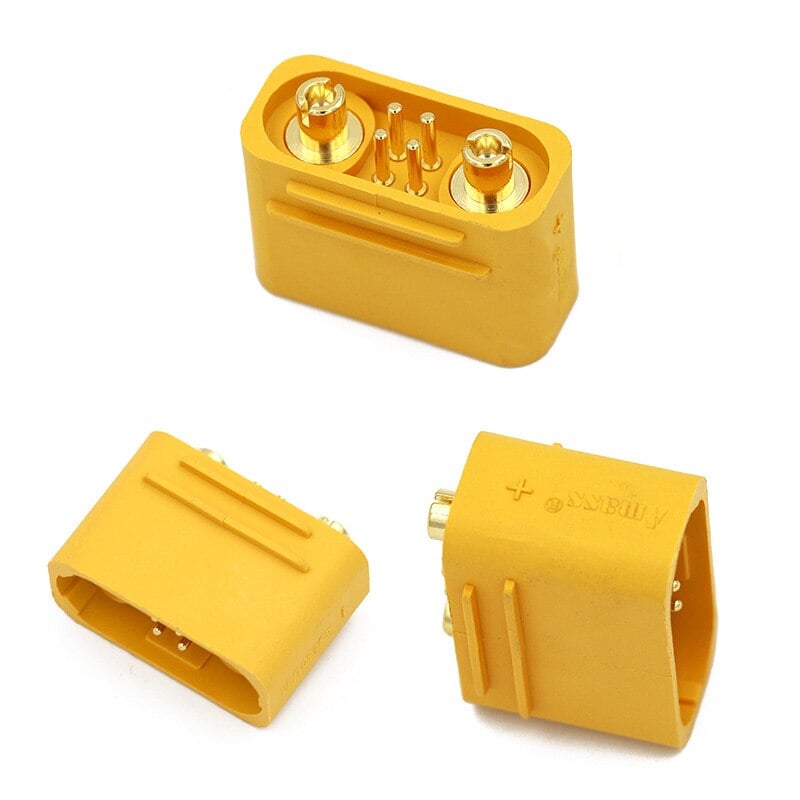

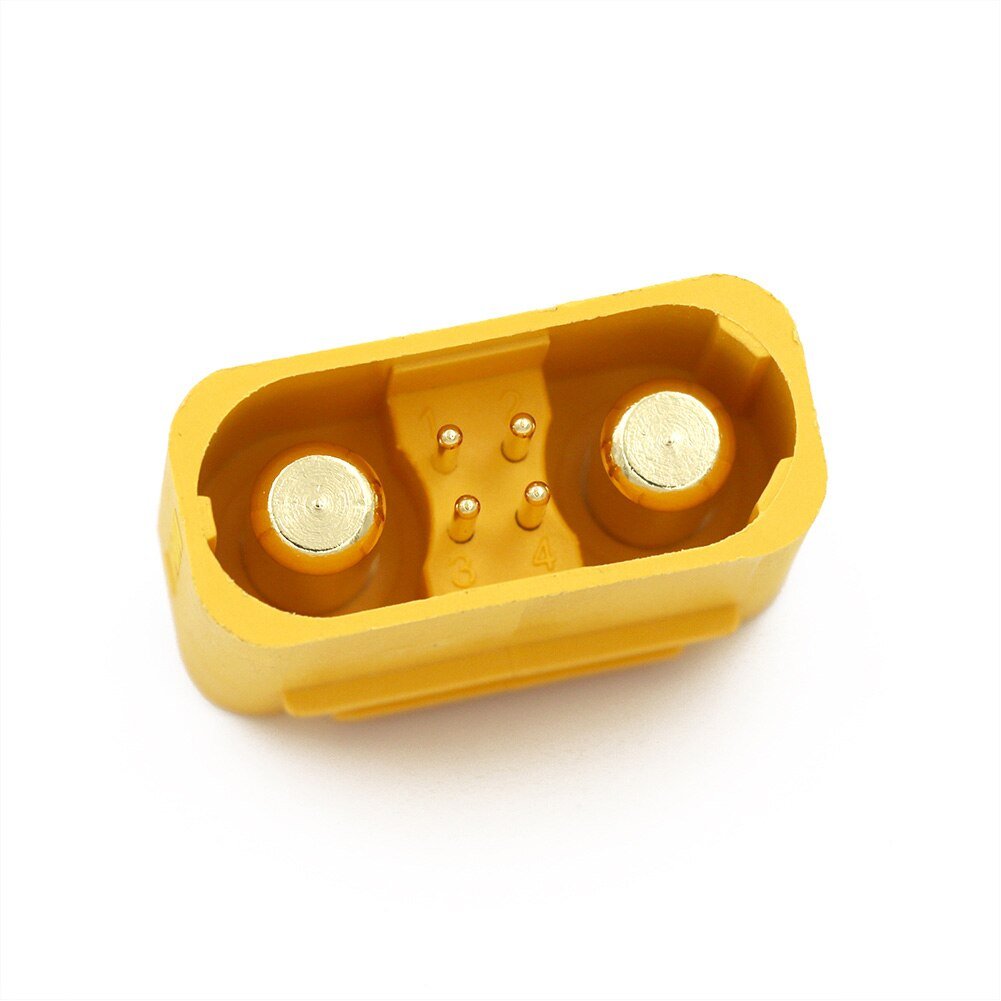

Amass AS150UPB-Male 140A Connector

Buy an Original High-Quality Amass AS150UPB-Male Connector for your application. The AS150UPB-M connectors provide a solid, high-amp connection – perfect for applications up to and beyond 140 amps!

IMPORTANT: These are not cheap copied connectors. These original high-quality plugs, manufactured by AMASS, can handle over 140A current for extended periods without exceeding 100DegC thanks to their better contact surface area. The plug is also less likely to deform or melt in comparison to copied non-Nylon plugs available on market.

Schematic:

Specifications:

1. Item name: AS150UPB Male Plug
2. Metal material: Brass gold plated
3. Plastic material: PA66
4. FR Level: UL94 V0
5. Recommend USE: Battery
6. Temperature rise: 70A＜70℃ (1 hour); 140A＜80℃（1min）
7. Weld mental: Main copper 3.3; Signal pin 2.5
8. CR: 0.40mΩ
9. Rated voltage: ＜DC 50V
10. Rated Current: 70A
11. Instantaneous current: 140A
12. Use times: 1000 times
13. Insertion force: 3-5kg
14. Cable spec.: 8AWG/24AWG
15. Temperature: 20℃ to 120℃
16. Weight: 20
17. Dimensions (L x W x H): 33 x 25 x 18 mm

Package Includes:

1 x Amass AS150UPB-Male 140A Connector
