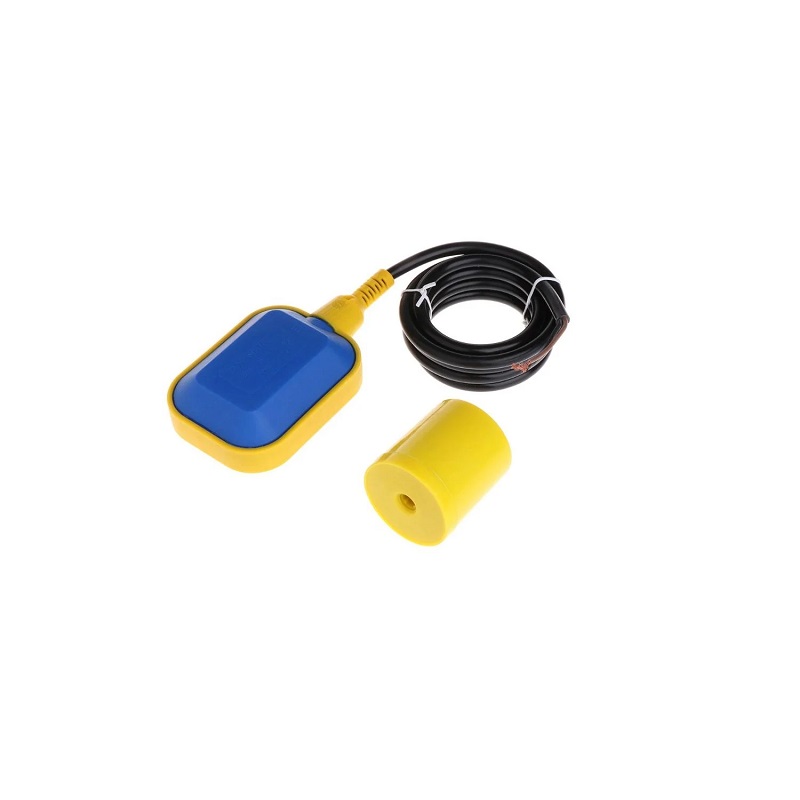

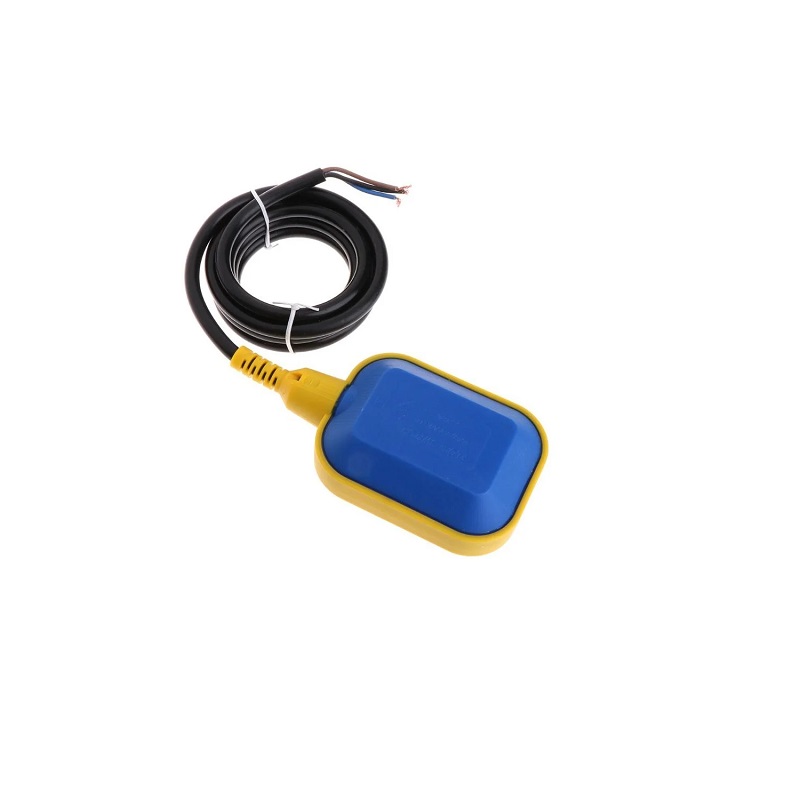

Anti-corrosion Square 5M Float Switch For Industry Pump Tank Sensor

Cable Float Switch is a control device for automatic On/Off pumps, motors, and magnetic valves. It is also an alarm device at certain pre-determined surface levels. It is suitable for use in non-flammable liquids at 250 volts. In potentially explosive atmospheres (e.g. oil tanks) the Switch can be used in conjunction with (Ex) I-isolator switch units. Due to its large float casing, the float Switch has a buoyancy that guarantees smooth, trouble-free operation under all conditions. The switch has a double chamber and a final remolding finish to make it absolutely hermetic.

 Note: images shown may vary from the actual product in terms of color according to availability from the supplier

Features:

1. It can test the pressure of the liquid.
2. The float switch is a switch that regulates fluid level in the tank or well etc
3. The float switch is resistant to water(sewage water) it is relatively capable of being used for oil, most acids, and alkalis
4. The float switch is not explosion-proof.

Specifications:

1. Input Voltage (V): 10(8A) 250V ~ 10(4A) 380V
2. Wire Length(mm): 10m
3. working Pressure: 0.1MPa
4. Operating Temperature (°C): 0~75℃
5. Electrical life: 1 x 100 000 times
6. Mechanical life: 5 x 100 000 times
7. Material: Plastic
8. Rectangle Box: 103x78x45 mm
9. Cylinder: 61x55mm

Package Includes:

1 x Square 5M Float Switch For Industry Pump Tank Sensor
