Arducam 12MP IMX477 Motorized Focus High Quality Camera for Raspberry Pi

This Arducam IMX477 High-Quality motorized focus camera module integrates a motor that could be controlled by software for a smarter focus, and you will no longer focus the camera by screwing the lens with your bare hands. Instead, keyboard keys or OpenCV can be used to remotely control the focusing process of your HQ camera. To learn more about autofocus with Raspberry Pi camera modules, we recommend you read Raspberry Pi Camera Autofocus: The Complete Guide.

Download link:

1. To use this camera, it is necessary to do hardware and software setup. To do both, please follow the instructions given in the link .

Features and Specification:

Image Sensor:

1. Sensor Model: IMX477
2. Shutter Type: Rolling shutter
3. Sensor resolution: 4056 x 3040 pixels, 12.3MP
4. Image Sensor Format: Type 1/2.3″
5. Pixel Size: 1.55 µm x 1.55 µm

Lens Assembly:

1. Model No: M23390H08
2. Optical Format: 1/2.3”
3. Focal Length: 3.9mm
4. Aperture: F2.8
5. Field of View (FOV): 75° (H) on Raspberry Pi High-Quality Camera, 50°(H) on Raspberry Pi V1/V2 Camera
6. Mount: M12 mount
7. Back Focal Length: 4.49mm
8. MOD: 0.3m
9. Dimension: Φ14×18.67mm
10. Weight: 5g
11. Focus Distance: 80mm to infinity

Camera Board:

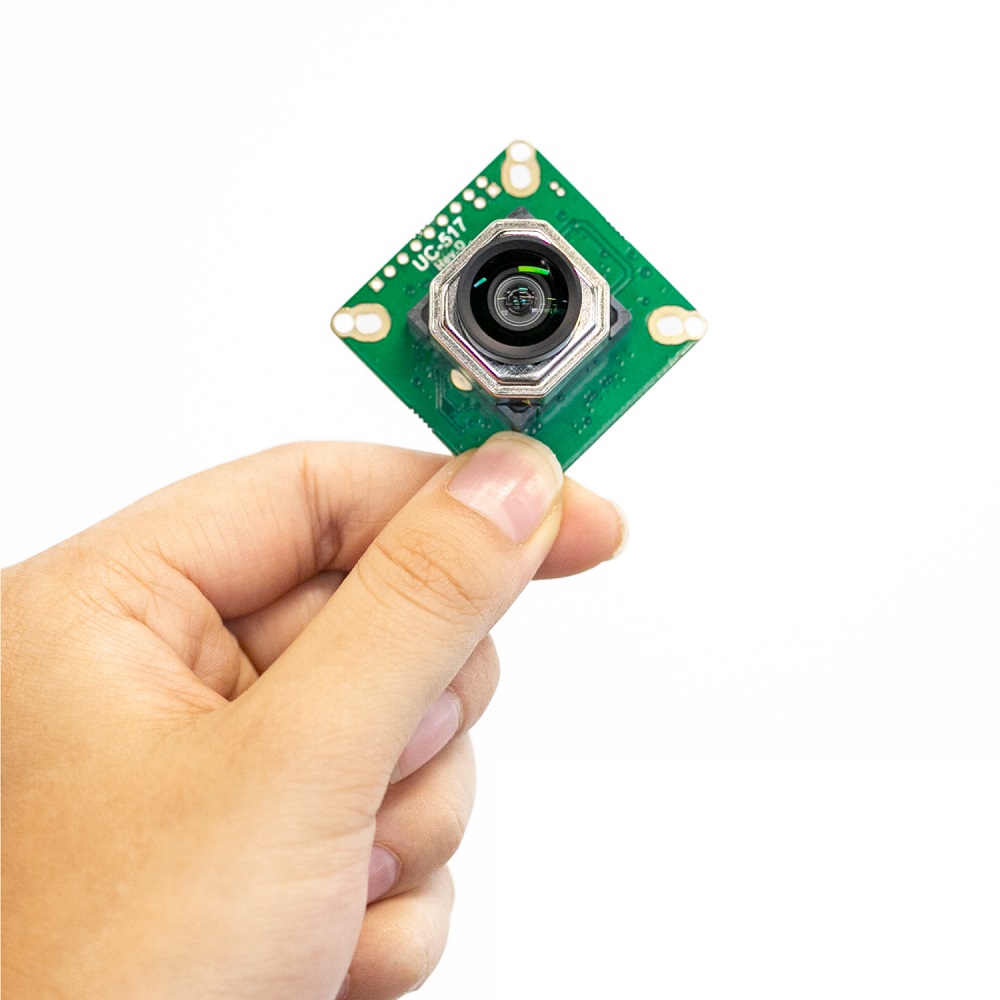

1. Board Size: 38mm×38mm
2. Hole Pitch: Compatible with 29mm, 30mm, 34mm

Package Includes:

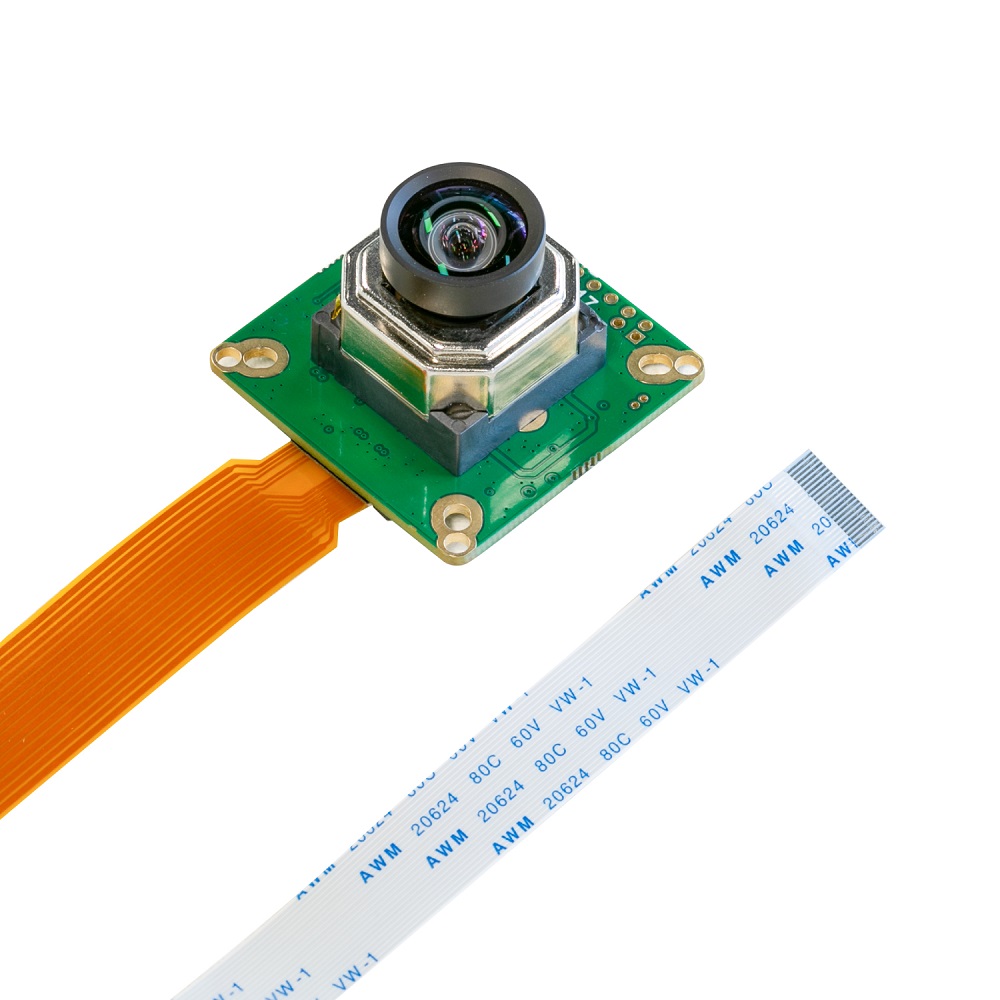

1 × Arducam 12MP IMX477 Motorized Focus High-Quality Camera for Raspberry Pi with lens

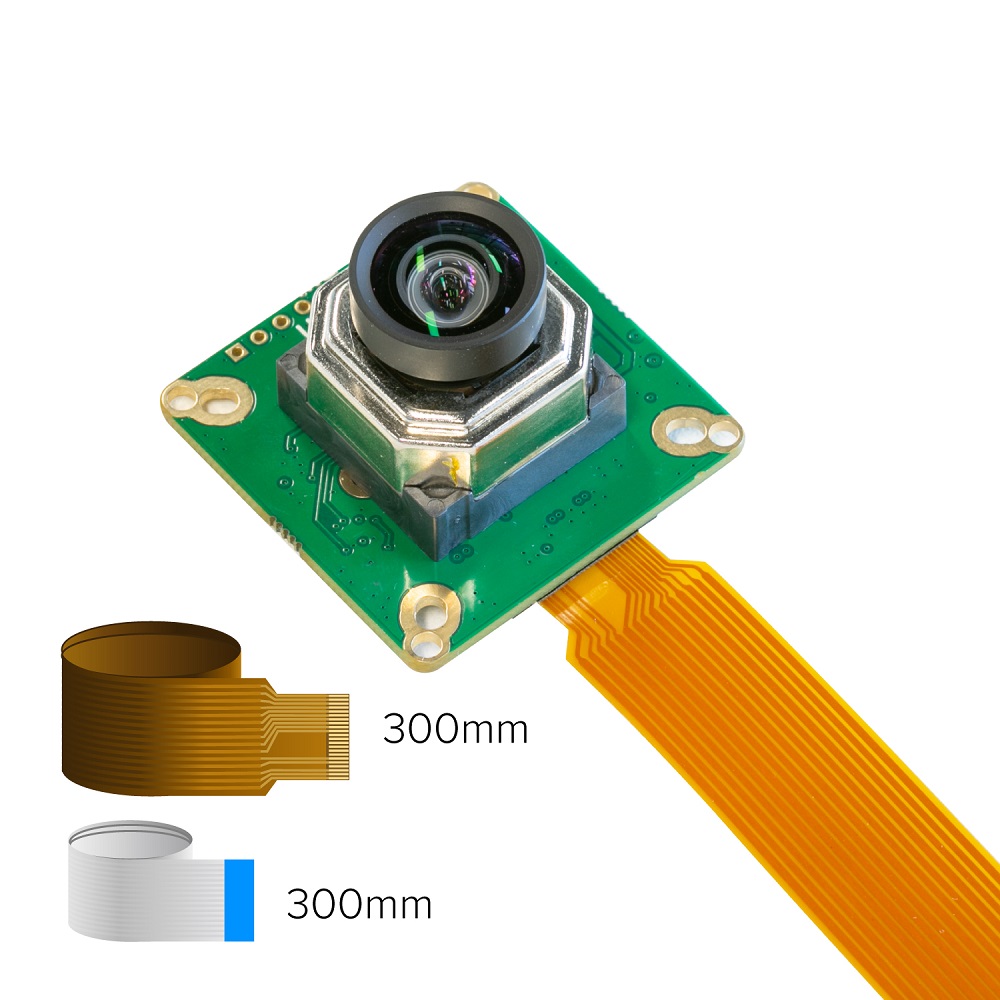

1 × 300mm 15pin-22pin flex ribbon cable for Raspberry Pi normal variants (Model As and Bs)

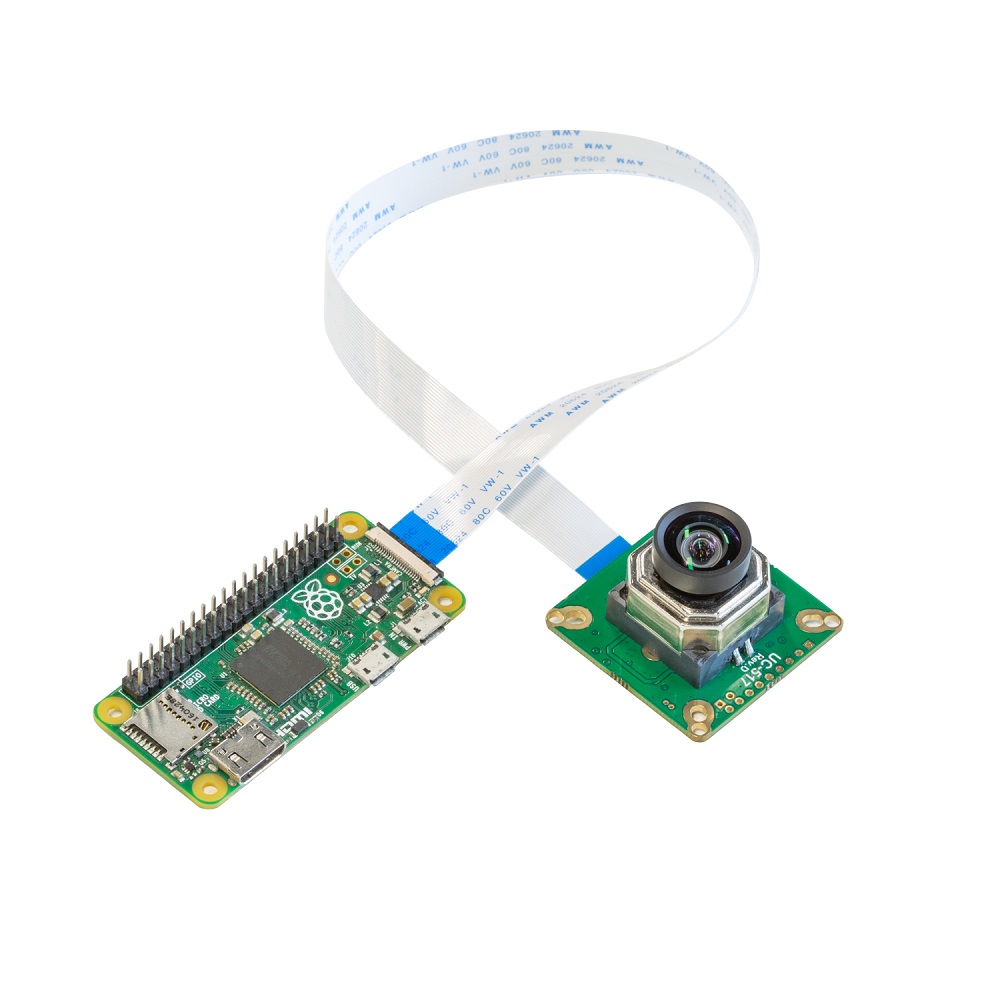

1 × 300mm 22pin-22pin flex ribbon cable for Raspberry Pi Zero and Compute Module
