Connectwell CTS95L 95 sq mm Feed Thru Bolt/Nut Melamine Terminal Block
Buy Connectwell CTS95L 95 sq mm Feed Thru Bolt/Nut Melamine Terminal Block online, Order today to get instant delivery in all over india.
Out of Stock
You're on the list! We'll email you when this product is back in stock.
Enter your email to be notified when this product is available again.
The Connectwell CTS95L is a 95 mm² Feed Thru Nut Bolt Melamine Terminal Block with a locking nut. These Terminal Blocks are ideal for applications that require wires with a large cross-section. The wire is crimped to a ring/fork type lug (ferrule) and screwed onto the Terminal Block's flat current bar. Every Terminal Block must have a partition or isolation plate. The Protective Cover is intended to be installed in a slot in the Partition Plate.
Specifications
| Rated Voltage | 1000V |
| Housing Material | Melamine |
| Tightening Torque | 10 Nm |
| Rated Current | 232A |
| Product Function | Feed Through |
|
Wire Entry Orientation |
Side Entry |
|
Mounting Possibilities |
DIN 32 Rail |
|
Screw Size |
M10 |
| Operated by |
Nut Driver |
|
Rated Surge Voltage |
8 kV |
|
Pollution Degree |
3 |
Dimensions
|
Height with DIN 32 rail |
52mm |
|
Length |
92mm |
|
Width(Thickness) |
40mm |
| Country of Origin | China |
welcome
welcome
You May Also Like
View all →

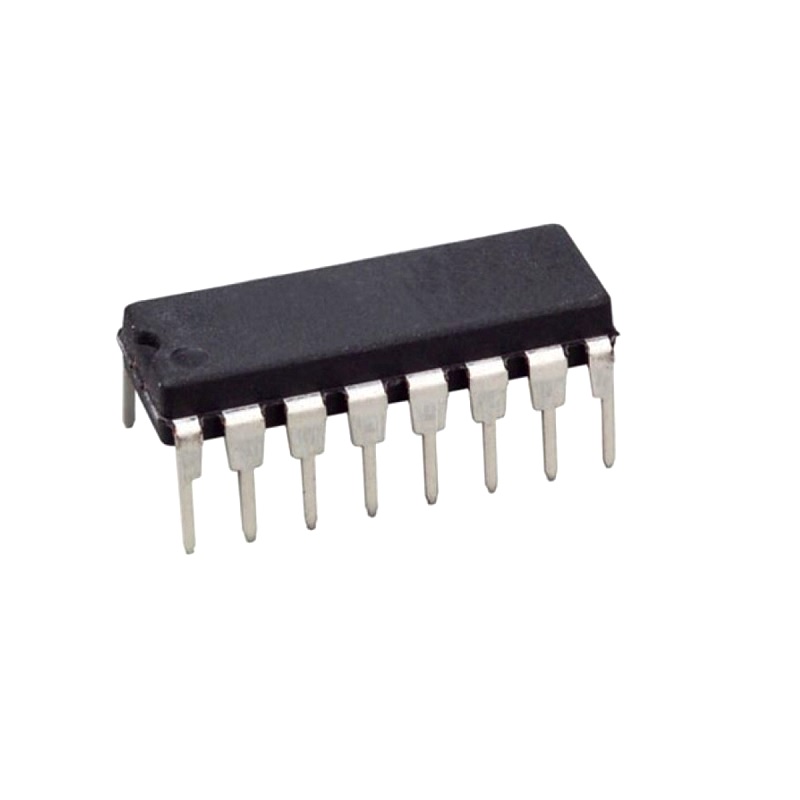

Buy 74LS193 Binary Up/Down Counter with Clear IC (74193 IC) DIP-16 Package online, Order today to get instant delivery in all over india.
