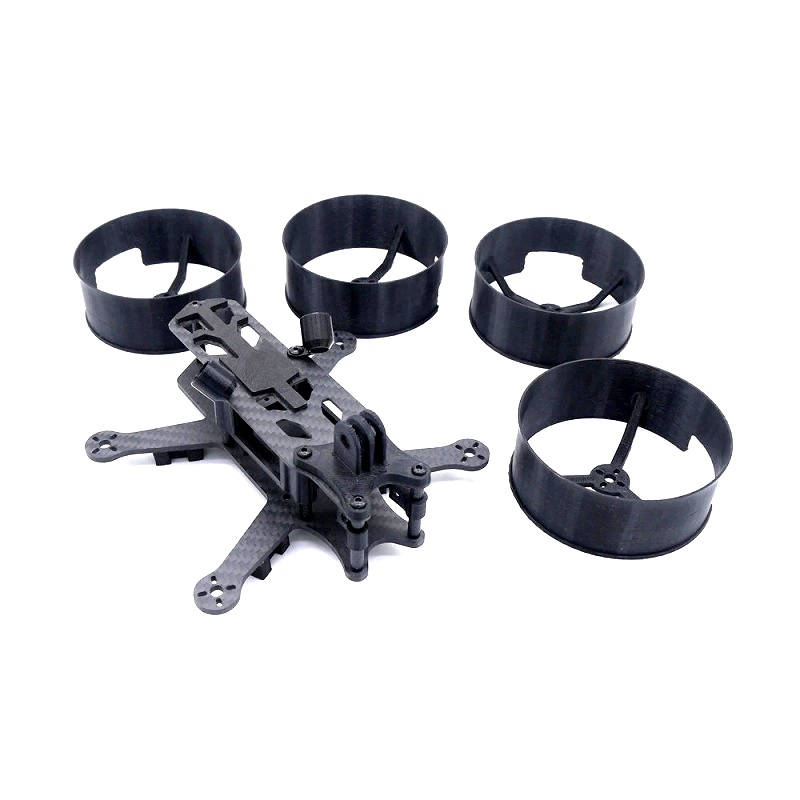

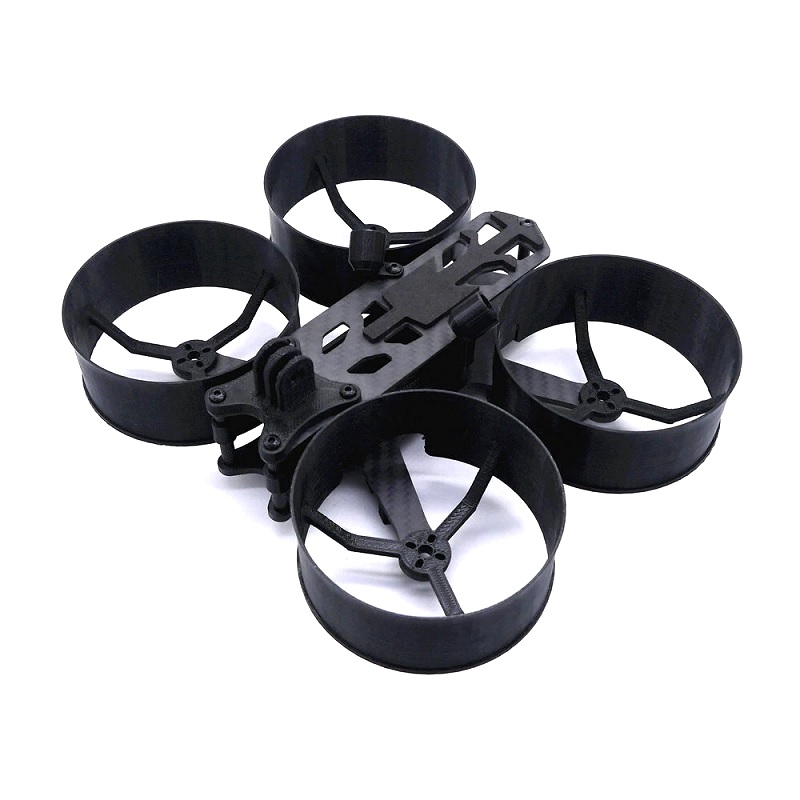

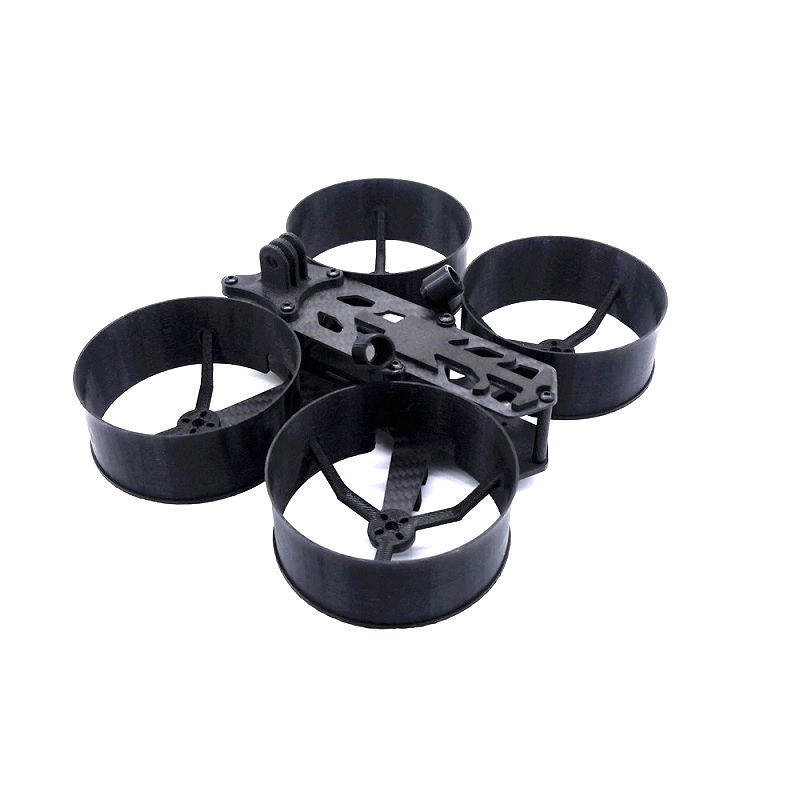

Cpro-X’3 HX155mm Carbon Fiber + 3D Printed Racing Drone Frame

This is Cpro-X’3 HX155mm Carbon + 3D Printed Racing Drone Frame. This Frame is built Specially to tackle the Problems in Racing and Video recording with Quadcopter. This Frame is built with carbon fiber plates and 3D printed assembly It has good tensile strength.

This Cpro-X’3 frame has a wheelbase of 155 mm carbon fiber which makes it tough and durable. The frame is lightweight and possesses thick arms so it can give them good mechanical strength. The mini design gives the frame Aerodynamic efficiency.

This product has a wheelbase is about 155 mm. and an 80mm diameter propeller protection duct. It is also featured with a large space in the mainframe for mounting the camera and other accessories.

Features:

1. Carbon Fiber and 3D printed material
2. Lightweight and Durable.
3. The frame has Excellent Strength.
4. No trouble in racing indoor and outdoor.

Specification:

1. Model: Cpro X’3
2. Item Name: 155mm Wheelbase 3 Inch (80mm) Duct Frame Kit
3. Wheelbase: 155mm
4. Structure: HX type split
5. Material: 3K Carbon Fiber
6. Bottom Plate Thickness: 3mm
7. Upper Plate Thickness: 1.5mm
8. Internal Standoff Height: about 30mm
9. Weight: 127g (including a full set of 3D prints)

Package Includes:

1 x Cpro-X’3 HX155mm Carbon Fiber + 3D Printed Racing Drone Frame

4 x 3D Printed 80mm Propeller protection Duct.
