DALY Li-ion NMC 17S 60V 40A Waterproof Battery Management System - BMS Protection Board

SKU: RZ24332129 Brand: DALY Category: Batteries & Power

₹ 2,390.85

Out of Stock

Buy DALY Li-ion NMC 17S 60V 40A Waterproof Battery Management System - BMS Protection Board online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 2,343.03
11 – 30	3%	₹ 2,319.12
31 – 50	4%	₹ 2,295.22
51 – 100	5%	₹ 2,271.31

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Brand DALY

Category Batteries & Power

Subcategory Batteries (General)

SKU RZ24332129

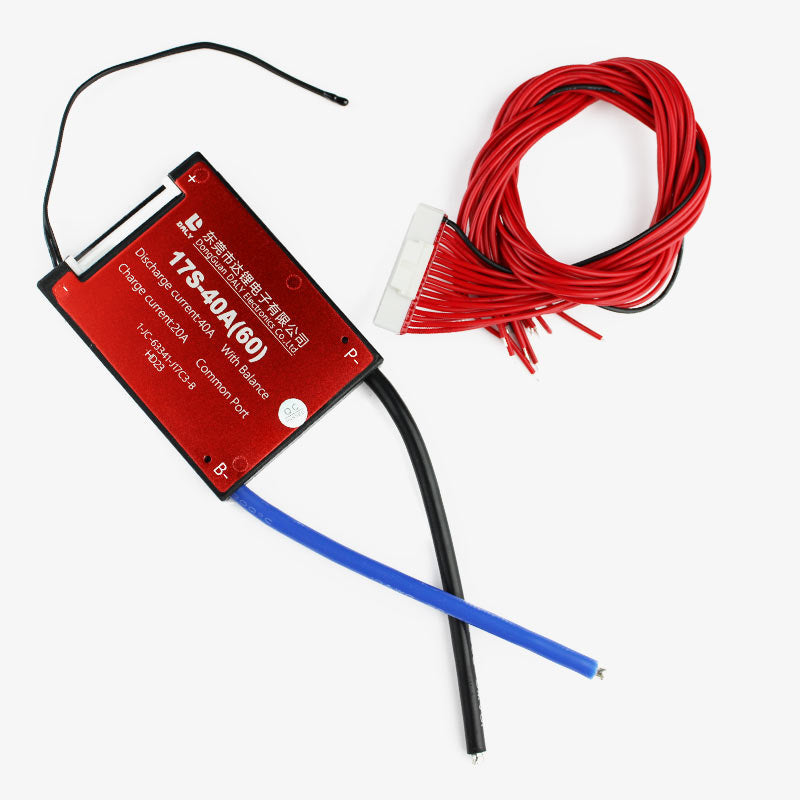

Daly 17S 60V 40A is a Lithium Battery Protection Board (PCM BMS) for balance charging. It uses an A-level protective integrated circuit IC. Its high load capabilities and 40A continuous discharge current performance make it a reliable solution for battery packs. It features a power MOSFET with a high voltage resistance and a low inner resistance. The heat sink will significantly aid cooling.
IC itself has a power balancing function though the circuit is simple and reliable. It features typical voltage detection for each cell. So, that each battery will be prevented from overcharging or over-discharge conditions. This BMS has reliable Over current and short circuit protection function due to which long time short circuit of the load won't affect the PCB and the battery.
Continuous temperature monitoring through NTC and thermal protection during charging and discharging.
Extremely low power consumption and the current consumption of the whole device is less than 100uA.
This BMS uses a high anti-corrosion, high water resistance, and high impedance ESD conformal coating.

Features:

State of charge calculations.
Cell over-voltage and under-voltage protection.
Intelligent battery balancing (passive).
Fully sealed waterproof technology, with waterproof, dustproof, shockproof, anti-squeezing, and other protective functions.

Package Includes:

1 x Daly 17S 60V 40A Battery Management System

Specifications :

Model	17S 60V 40A
Charge Voltage(V)	71.4
Charge Current(A)	20
Balance Current(mA)	30±5
Balance Detect Voltage(V)	4.18
Working Current(uA)	100
Overcharge Detect Voltage(V)	4.25±0.05
Overcharge Release Voltage(V)	4.15±0.05
Over Discharge Detect(V)	2.7±0.1
Over Discharge Release(V)	3.0±0.1
Working Temperature Range (°C)	-20 to 70
Cable Size (AWG)	10
Length (mm)	81.6
Width (mm)	61
Height (mm)	10.8
